EXHAUST for POLARIS BRUTUS HD HDPTO - D142M9JDJ/1L9JDJ/1D9JDJ/2D9JDJ from 2014

ENGINE, CAMSHAFT AND DRIVING GEAR

EXHAUST MANIFOLD

EXHAUST

1

HEADPIPE WELD; FRONT; BLACK

1262387489

Not Available

2

TORQUE STOP MOUNT

3021522

9999999

Not Available

3

HEADPIPE ASSEMBLY; FRONT

1262386

9999999

Not Available

4

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

5

TUFLOK RIVET

7661855

$2,09 Unit Price incl. VAT

6

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

7

WASHER

7555716

$3,14 Unit Price incl. VAT

8

EXHAUST MANIFOLD GASKET; DIESEL

3070003

$36,74 Unit Price incl. VAT

9

PLATE-MANIFOLD

5254672

9999999

Not Available

10

MANIFOLD SHIELD; DIESEL

5255378

9999999

Not Available

11

SPRING

7041789

$16,79 Unit Price incl. VAT

12

NUT-HXFL M8X1.25 ZOD

7547440

$6,29 Unit Price incl. VAT

13

SILENCER WELD HIGH TEMP POWDER PAINT BLK

1262385489

Not Available

14

BOLT

7512666

$4,19 Unit Price incl. VAT

15

CLEAN OUT WASHER; .51 X .75 X .09

7556230

$2,09 Unit Price incl. VAT

16

SPRING

7041804

$16,79 Unit Price incl. VAT

17

EXHAUST SOCKET SEAL

3610181

$57,74 Unit Price incl. VAT

18

BUSHING

5010192

$12,59 Unit Price incl. VAT

19

WASHER RUBBER

5410436

9999999

Not Available

20

VIBRATION DAMPENER

5412659

$7,34 Unit Price incl. VAT

21

HEAT SHIELD; FOIL; BOTTOM

5813763

$89,24 Unit Price incl. VAT

22

SCR-CAR M8X1.25 40 8.8 ZOD

7519305

9999999

Not Available

23

SPRING

7041687

$12,59 Unit Price incl. VAT

24

HEX NUT

7542301

$3,14 Unit Price incl. VAT

25

NUTSERT-5/16-18(.027-.150) HXY

7547101

$17,84 Unit Price incl. VAT

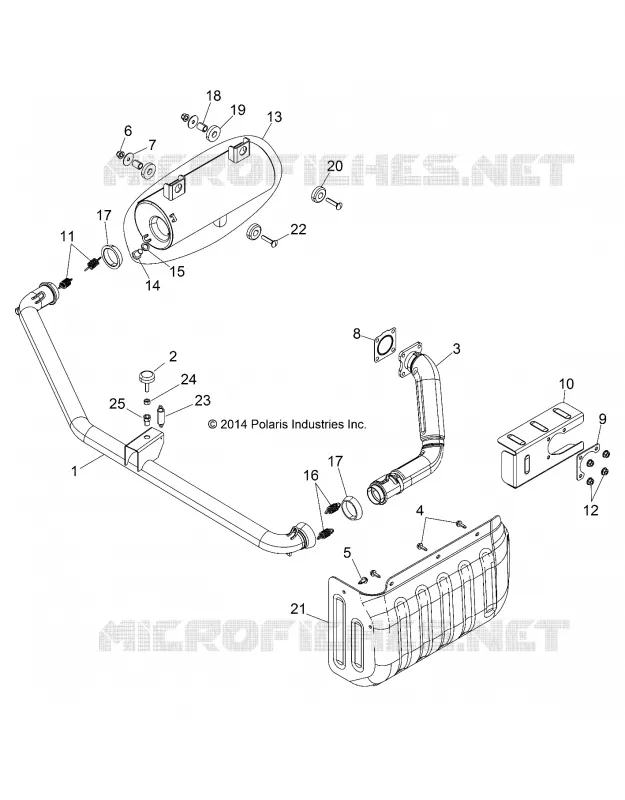

Find the detailed EXHAUST POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
