1
Engine displacement
1000
2
Year
2020
3
Trim
RZR XP 1000
4
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, REAR HALF SHAFT
by

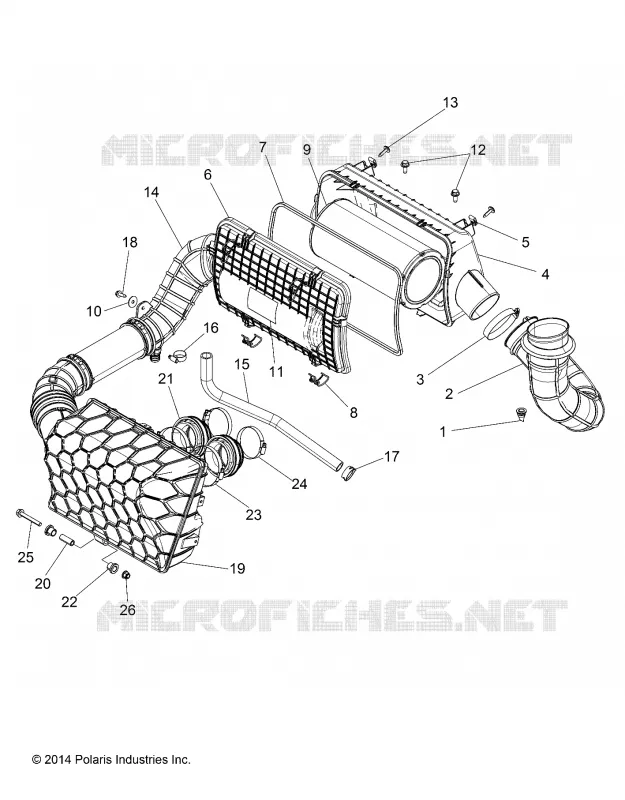

ENGINE, AIR INTAKE SYSTEM
ENGINE, AIR INTAKE SYSTEM
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
DRAIN PLUG
5414472
$10,49 Unit Price incl. VAT
2
AIRBOX HOSE
5414691
$204,74 Unit Price incl. VAT
3
3.75 SS
7080907
$20,99 Unit Price incl. VAT
4
AIRBOX HOUSING ASSEMBLY
1240747
$173,24 Unit Price incl. VAT
5
U-TYPE NUT; M6-1.0
7547674
$2,09 Unit Price incl. VAT
6
AIRBOX COVER ASSEMBLY
1240748
$141,74 Unit Price incl. VAT
7
AIRBOX SEAL
5813929
$52,49 Unit Price incl. VAT
8
AIRBOX CLIP
7081872
$10,49 Unit Price incl. VAT
9
FILTER ASSEMBLY
1241084
$57,63 Unit Price incl. VAT
10
WASHER .281 X 1.00 X 0.51
7556329
$2,09 Unit Price incl. VAT
11
DECAL-CAUT.AIR BOX
7182652
Not Available
11
DECAL-WARN INTAKE
7185975
Not Available
12
HEX FLANGE BOLT; 8 MM X 1.25 MM X 20 MM
7518555
$4,19 Unit Price incl. VAT
13
BOLT
7519650
$7,34 Unit Price incl. VAT
14
INTAKE DUCT ASSEMBLY
1240770
$278,24 Unit Price incl. VAT
15
ENGINE HOSE VENT
5414671
$73,49 Unit Price incl. VAT
16
HOSE CLAMP
7080614
$13,64 Unit Price incl. VAT
17
SPRINGBAND CLAMP; 27/12; GREEN
7080841
$13,64 Unit Price incl. VAT
18
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
19
INTAKE WELD; ENGINE HOUSING
1240749
$293,99 Unit Price incl. VAT
20
COMPRESSION SHAFT LIMITER; 34.4 MM
5138987
$31,49 Unit Price incl. VAT
21
THROTTLE BODY BOOT
5414570
$99,74 Unit Price incl. VAT
22
BUSHING-MOUNT
5414719
$5,24 Unit Price incl. VAT
23
WORM DRIVE CLAMP; .44 X 3.75
7080812
$36,74 Unit Price incl. VAT
24
CLAMP HOSE
7081623
$5,76 Unit Price incl. VAT
25
HEX FLANGE SCREW; 8 MM X 1.25 MM X 60 MM
7519298
$7,34 Unit Price incl. VAT
26
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT

Find the detailed ENGINE, AIR INTAKE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
