1
Engine displacement
500
2
Year
2000
3
Trim
SPORTSMAN 500 - A00CH50AK
4
Parts Catalog
COOLING SYSTEM
5
Parts Diagram
Parts Catalog
DECALS
by
EXHAUST SYSTEM
COOLING SYSTEM
1
HOSE CLAMP
7080807
$17,84 Unit Price incl. VAT
2
CAP-PRESSURE 13 PSI
1240044
1240508
$89,24 Unit Price incl. VAT
3
REMOTE COOLANT FILTER
5433364
$73,49 Unit Price incl. VAT
4
BRKT REMOTE COOLANT FILL
5243505067
Not Available
5
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
6
FLEXGUARD
5433707
9999999
Not Available
7
UPPER ENGINE HOSE
5411783
$125,99 Unit Price incl. VAT
8
CLAMP-ROTO SPRING 1"
7080827
9999999
Not Available
9
SCREW
7512084
$2,09 Unit Price incl. VAT
10
FILLER NECK HOSE
5411632
9999999
Not Available
11
CLAMP-ROTO CLIP
7080826
9999999
Not Available
12
SCREW
7517659
9999999
Not Available
13
FAN AND MOTOR ASSEMBLY; SPAL
2410123
$289,79 Unit Price incl. VAT
14
CLIP U
7670111
9999999
Not Available
15
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
16
NUTSERT HEX
7547069
$7,34 Unit Price incl. VAT
17
MOUNT; RUBBER
3110032
9999999
Not Available
18
MOUNT SPACER
5020572
9999999
Not Available
19
SHROUD-FAN
5433059
9999999
Not Available
20
THERMAL HARNESS SENSOR
4010161
9999999
Not Available
21
RADIATOR
1240045
9999999
Not Available
22
WASHER
7552605
9999999
Not Available
23
BOLT
7512113
$7,34 Unit Price incl. VAT
24
COVER-RADIATOR W/MESH
5433317
9999999
Not Available
25
O-RING
5410607
9999999
Not Available
26
VALVE-PLASTIC DRAIN
7052244
9999999
Not Available
27
RADIATOR MOUNT BUSHING; LOWER
5410584
$10,49 Unit Price incl. VAT
28
RADIATOR BRACKET; LOWER; GS BLK
5243503067
Not Available
29
SCREW
7517386
$2,09 Unit Price incl. VAT
30
STRAP-PANDUIT PANEL TIE
7080890
9999999
Not Available
31
ENGINE HOSE; LOWER
5411782
9999999
Not Available
32
PLASTIC HOSEGUARD 18
5521550
9999999
Not Available
33
CLAMP-HOSE 1.312 VINYL COATED
7080851
9999999
Not Available
34
CLAMP HOSE 1.25 WORM DRIVE
7080696
$10,49 Unit Price incl. VAT
35
BREAKER CIRCUT 10A FAN
4010369
9999999
Not Available
36
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
37
GASKET
5810279
$4,19 Unit Price incl. VAT
38
CAP PLUG9X(GRN) FLEX TEMP(10)
5433774
$10,49 Unit Price incl. VAT
39
TANK; SURGE
5431673
5436936
$152,24 Unit Price incl. VAT
40
FUEL LINE; 1/4 ID
84500031525
Not Available
41
FITTING 90 DEGREE
7052065
$13,64 Unit Price incl. VAT

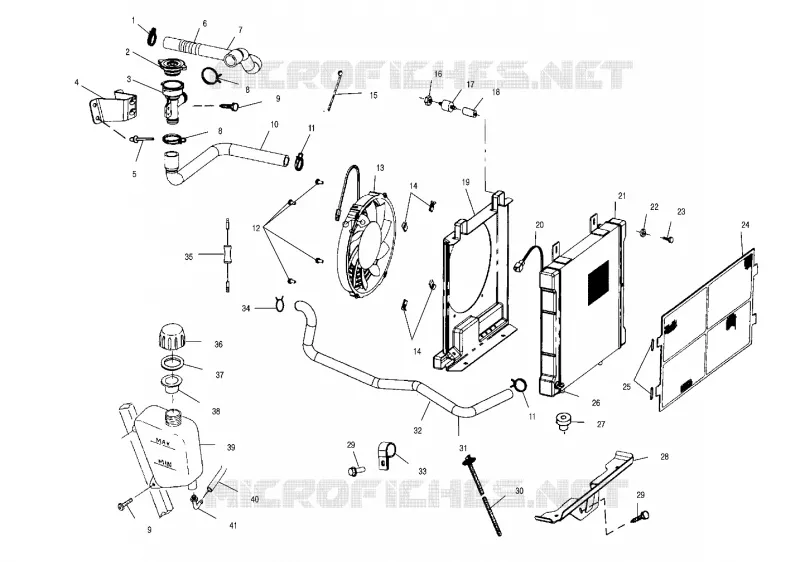

Find the detailed COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
