REAR TRACK SHOCK, HI LO ADJ., SNOW CHECK (7044383)
5
Parts Diagram
Parts Catalog
FRONT TRACK SHOCK (CLEAR)
by
STARTER MOTOR
REAR TRACK SHOCK, HI LO ADJ., SNOW CHECK (7044383)
-
1
2
3
4
5
6
7
8
9
10
11
12
12
13
13
14
14
15
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
33
34
35
36
-
SHOCK-R/T W/E HI/LO SHORT
7044383
9999999
Not Available
1
SHAFT LOOP
1800471
9999999
Not Available
2
BODY RT BUTTRESS CLR 1500154
1800743
$178,49 Unit Price incl. VAT
3
SEAL HEAD ASSEMBLY
1800414
9999999
Not Available
4
O-RING BODY
1800027
$3,66 Unit Price incl. VAT
5
SHAFT NEEDLE RT (1000352)
1800428
9999999
Not Available
6
NEEDLE 2.25 (100114)
1800300
9999999
Not Available
7
BOLT; NEEDLE (600154)
1800302
9999999
Not Available
8
CRIMP NUT 3/8 IN
1800031
$7,34 Unit Price incl. VAT
9
SPACER SHAFT .850 (900800)
1800377
$47,24 Unit Price incl. VAT
10
SPRING LOCK NUT
1800372
$115,49 Unit Price incl. VAT
11
SCREW-BLEED W/O RING
1800074
9999999
Not Available
12
SLEEVE; 1.15L
1800405
$62,99 Unit Price incl. VAT
13
BUSHING
1800406
$9,44 Unit Price incl. VAT
14
BODY O-RING
1800030
$3,66 Unit Price incl. VAT
15
BODY RES 2IN CLEAR (1120334)
1800523
9999999
Not Available
16
ASM IFP PISTON 1.75BLD 0624204
1800739
$68,24 Unit Price incl. VAT
17
RING-SNAP
1800159
$10,49 Unit Price incl. VAT
18
WEAR SLEEVE
1800133
9999999
Not Available
19
PISTON CONVEX
1800001
9999999
Not Available
20
WASHER
1800204
9999999
Not Available
21
3/8 AN WASHER (10)
1800050
$7,34 Unit Price incl. VAT
22
TEFLON WEAR BAND
1800297
$62,99 Unit Price incl. VAT
23
PIGGYBACK 1-3/4H/L 1500346
1800741
$451,49 Unit Price incl. VAT
24
H/L SPEED ADJUSTER ASSEMBLY
1800744
9999999
Not Available
25
KNOB LS DBL GRIP BLK 1500356
1800735
$83,99 Unit Price incl. VAT
26
SCREW SET #3-38 1500361
1800736
$11,54 Unit Price incl. VAT
27
KNOB HS TRI GRIP RED 1500355
1800737
$120,74 Unit Price incl. VAT
28
SCREW 4-40X.375SS 1500359
1800738
$2,09 Unit Price incl. VAT
29
O-RING 2.0 MM X 24.5 MM
1800680
$9,44 Unit Price incl. VAT
30
O-RING 1.5X21.5MM (1500102)
1800679
9999999
Not Available
31
ASM END CAP 1.750AV 1024207
1800740
9999999
Not Available
32
O-RING
1800184
$10,49 Unit Price incl. VAT
33
CMPRSSN SPNG 130 .362 X 11.50 MT BLK
7044625458
Not Available
33
SPRG-COMP.362X11.50 130# GOLD
7044625703
Not Available
34
RETAINER-THRUST BEARING
5137541
9999999
Not Available
35
THRUST BEARING; 64.85 X 44.31 X 3.94
3514706
9999999
Not Available
36
RETAINER-SPRING SLOTTED
5137540
9999999
Not Available

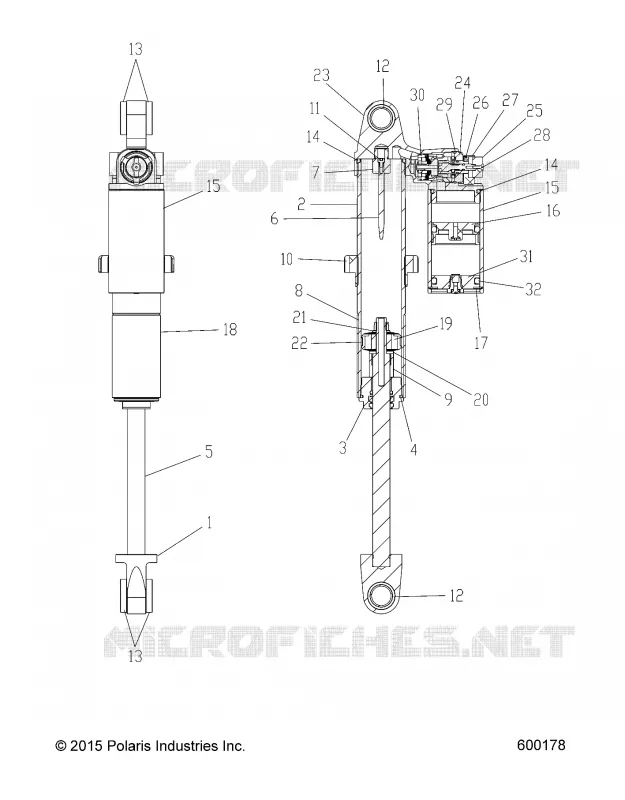

Find the detailed REAR TRACK SHOCK, HI LO ADJ., SNOW CHECK (7044383) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
