DRIVE TRAIN, MAIN GEARCASE for POLARIS SPORTSMAN TOURING 570 EPS from 2022

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, MAIN GEARCASE MOUNTING

DRIVE TRAIN, MAIN GEARCASE

1

ASM-TRANSMISSION NO DIFF SNGL

1334034

$3 249,74 Unit Price incl. VAT

2

TRIPLE LIP SEAL; 40 X 70 X 7

3234300

$57,74 Unit Price incl. VAT

3

COVER SUBASSEMBLY; LEFT

3235605

$818,99 Unit Price incl. VAT

4

BALL BEARING

3233268

$88,19 Unit Price incl. VAT

5

CHAIN

3234057

$519,74 Unit Price incl. VAT

6

MAIN GEARCASE; MACHINED; RIGHT

3235606

$1 070,99 Unit Price incl. VAT

7

BEARING

3233018

$47,24 Unit Price incl. VAT

8

SPROCKET; 19 TOOTH

3234060

$451,49 Unit Price incl. VAT

9

OIL DEFLECTOR

3234061

3239943

$52,49 Unit Price incl. VAT

10

SCREW

3233749

$10,49 Unit Price incl. VAT

11

GEAR OUTPUT

3234062

$493,49 Unit Price incl. VAT

12

RING-RETAINING

3233699

$13,64 Unit Price incl. VAT

13

SCREW TAPPINGHEXHEAD1/4-20X.75

3234247

$10,49 Unit Price incl. VAT

14

COVER-CENTER DRIVE BEARING

3234063

$62,99 Unit Price incl. VAT

15

RETAINING RING

3233364

$12,59 Unit Price incl. VAT

16

SHIM; 1.700 X 1.385

3234271

$47,24 Unit Price incl. VAT

17

BALL BEARNING

3234065

$80,84 Unit Price incl. VAT

18

PINION; 13T CENTER DRIVE

3234263

$818,99 Unit Price incl. VAT

19

RETAINING RING

3234067

$14,69 Unit Price incl. VAT

20

WASHER

3233176

$17,84 Unit Price incl. VAT

21

HELICAL GEAR; 35 TOOTH

3236032

$262,49 Unit Price incl. VAT

22

BEARING; NEEDLE

3233009

$68,24 Unit Price incl. VAT

23

WASHER

3233855

$19,94 Unit Price incl. VAT

24

DOG; L/P

3234257

$283,49 Unit Price incl. VAT

25

ENGAGEMENT DOG 6 FACE

3234258

$178,49 Unit Price incl. VAT

26

RETAINING RING

3233306

$9,44 Unit Price incl. VAT

27

THRUST WASHER; 1.300 X .995 X .065

3234248

$17,84 Unit Price incl. VAT

28

SPROCKET; 6-FACE; 38 TOOTH

3234290

$283,49 Unit Price incl. VAT

29

REVERSE SHAFT; 26 TOOTH

3234280

$488,24 Unit Price incl. VAT

30

GEAR; 33T 6-FACE

3234291

$325,49 Unit Price incl. VAT

31

SHIFT COLLAR

3234073

$57,74 Unit Price incl. VAT

32

PLATE-PARK 12 FACE

3233915

$73,49 Unit Price incl. VAT

33

BEARING; BALL; 17 X 40 X 12

3234274

$47,24 Unit Price incl. VAT

34

SEAL

3234851

$68,24 Unit Price incl. VAT

35

BEARING

3233019

$54,59 Unit Price incl. VAT

36

SHAFT-INPUT HELICAL 39T

3235526

$451,49 Unit Price incl. VAT

37

CHAIN; .25 P X .40 W X 50 L

3234264

$188,99 Unit Price incl. VAT

38

SHIFT FORK

3234077

$335,99 Unit Price incl. VAT

39

COMPRESSION SPRING

3234078

$47,24 Unit Price incl. VAT

40

RAIL-SHIFT SHAFT

3234079

3235542

$52,49 Unit Price incl. VAT

41

DOWEL PIN

3233432

$13,64 Unit Price incl. VAT

42

TORISON SPRING

3233431

$47,24 Unit Price incl. VAT

43

CHAIN TENSIONER CAM

3233434

$26,24 Unit Price incl. VAT

44

CHAIN TENSIONER SHOE

3233433

$62,99 Unit Price incl. VAT

45

DRUM SHIFT

3234360

$335,99 Unit Price incl. VAT

46

SECTOR GEAR; 31 TOOTH CUT TO 11 TOOTH

3233832

$68,24 Unit Price incl. VAT

47

SHIFT SHAFT

3233831

$115,49 Unit Price incl. VAT

48

O-RING

3233828

$12,59 Unit Price incl. VAT

49

DETENT PAWL

3233829

$68,24 Unit Price incl. VAT

50

COMPRESSION DETENT SPRING

3234578

$26,24 Unit Price incl. VAT

51

GEARCASE COVER

3234188

$209,99 Unit Price incl. VAT

52

BELLCRANK 510 HOLE 92 DEGREE

3234584

$52,49 Unit Price incl. VAT

53

NUT-LOCK HEX FLANGE NYLON 5/16

3233961

$5,24 Unit Price incl. VAT

54

GEAR POSITION SWITCH PIN

7661999

$220,49 Unit Price incl. VAT

55

RETAINING RING

3233834

$19,94 Unit Price incl. VAT

56

SECTOR GEAR; 16 TOOTH

3233839

$68,24 Unit Price incl. VAT

57

DETENT STAR

3233909

$52,49 Unit Price incl. VAT

58

O-RING

3233836

$12,59 Unit Price incl. VAT

59

SNORKEL; 13 TOOTH

3234262

$608,99 Unit Price incl. VAT

60

BALL BEARING

3233265

$68,24 Unit Price incl. VAT

61

RING RETAINING BSCEXTERNAL0.84

3234336

$10,49 Unit Price incl. VAT

62

SNORKLE TUBE

3234278

$188,99 Unit Price incl. VAT

63

SCREW-TORX TRUSS HD

3234086

$10,49 Unit Price incl. VAT

64

SHIM 1.180 X .995(9)

3234272

$68,24 Unit Price incl. VAT

65

SNAP RING

3233106

$10,49 Unit Price incl. VAT

66

TRIPLE LIP SEAL; 25 X 80 X 10

3234113

$68,24 Unit Price incl. VAT

67

TUBE-VENT 90-1/4 HOSE

3234230

$19,94 Unit Price incl. VAT

68

SCR-TAPPING HEX WASHER HD 5/16

3234114

$13,64 Unit Price incl. VAT

69

PIN DOWEL 5/16 X 1.0

3234244

$13,64 Unit Price incl. VAT

70

HEX PLUG W/ O-RING; HOLLOW

3233794

$31,49 Unit Price incl. VAT

71

COMPRESSION SPRING

3234089

$52,49 Unit Price incl. VAT

72

RETAINING RING

3234090

$19,94 Unit Price incl. VAT

73

CUP WASHER

3234091

$17,84 Unit Price incl. VAT

74

RING RETAININGBASICINTRNL2.047

3234269

$17,84 Unit Price incl. VAT

75

SHIM; 2.040 OD X 1.630 ID

3234273

$26,24 Unit Price incl. VAT

76

BEARING; NEEDLE

3233103

$54,59 Unit Price incl. VAT

77

TRANSMISSION SPEED SENSOR

4013908

4082135

$204,74 Unit Price incl. VAT

78

O-RING

3233840

$20,99 Unit Price incl. VAT

79

FINAL OUTPUT SUBASSEMBLY; 59 TOOTH

3235604

$482,99 Unit Price incl. VAT

80

SPACER

3235243

$17,84 Unit Price incl. VAT

81

PLUG; .75 HOLLOW HEX MAGNETIC

3234529

3233794

$31,49 Unit Price incl. VAT

82

BRKT-MOUNT(430592)

3235350

$16,79 Unit Price incl. VAT

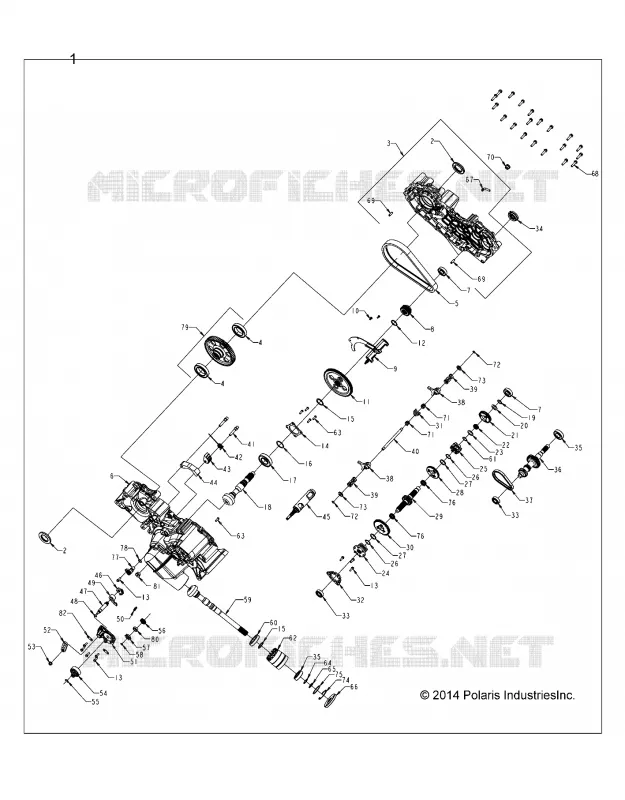

Find the detailed DRIVE TRAIN, MAIN GEARCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
