ENGINE, OIL SYSTEM for POLARIS SCRAMBLER XP 1000 EU from 2020

ENGINE, OIL SYSTEM

1

ASM-REGULATOR VALVE;85 PSI

2520672

$89,24 Unit Price incl. VAT

2

OIL PUMP ASSEMBLY

2521041

$283,49 Unit Price incl. VAT

3

CAP-OIL PUMP;Q50/60

2520560

$62,99 Unit Price incl. VAT

4

FILTER ADAPTOR; STRAIGHT

2521530

$68,24 Unit Price incl. VAT

5

OIL FILTER

2520799

$19,20 Unit Price incl. VAT

6

HEX FLANGE SCREW; 6 MM X 20 MM

7518576

$6,29 Unit Price incl. VAT

7

OIL PUMP CAP SEAL; Q50/60

3610128

$12,59 Unit Price incl. VAT

8

PLATE-WINDAGE PTO 952

5257984

$104,99 Unit Price incl. VAT

9

PLATE-WINDAGE MAG Q60

5250397

$68,24 Unit Price incl. VAT

10

COPPER WASHER

5812232

7556937

$6,29 Unit Price incl. VAT

11

SOCKET PLUG; 12 MM X 1.5 MM

7052306

$31,49 Unit Price incl. VAT

12

SOCKET HEAD SCREW; 6 MM X 12 MM

7517739

$17,84 Unit Price incl. VAT

13

SCR-HXFL M6X1.0X16 8.8ZY3DL204

7519329

$7,34 Unit Price incl. VAT

14

TUBE-OIL TRANSFER

2522027

$62,99 Unit Price incl. VAT

15

OIL FILL DIPSTICK

2521028

$68,24 Unit Price incl. VAT

16

O-RING 26.65 IN X 2.62

5412530

$3,14 Unit Price incl. VAT

17

O-RING .364X.504X.07 0600083

5413007

9999999

Not Available

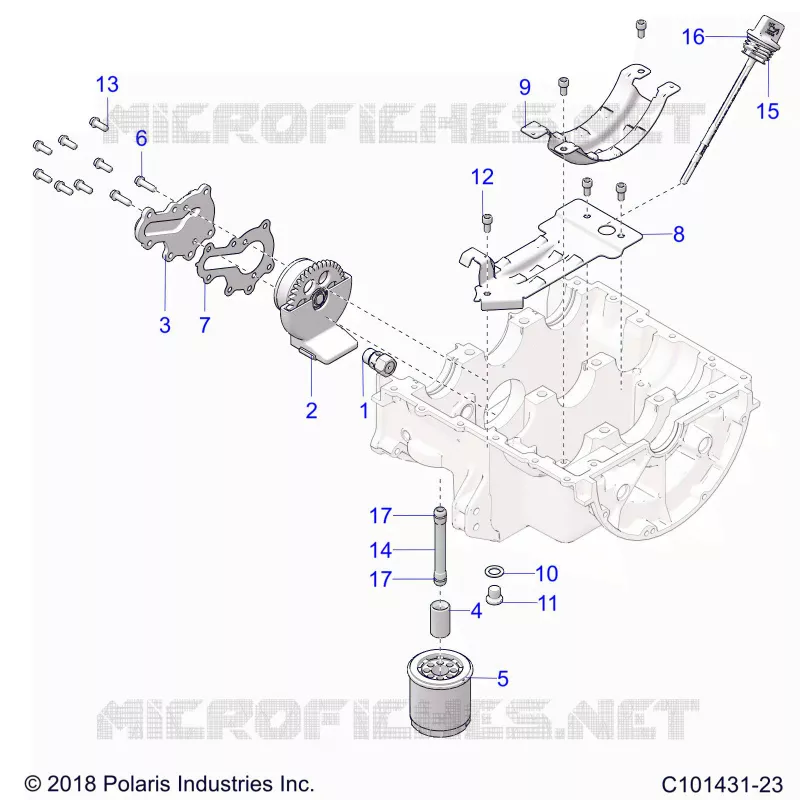

Find the detailed ENGINE, OIL SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
