FUEL SYSTEM, FUEL PUMP AND FUEL LINES for POLARIS 550 EVO 121 from 2023

ENGINE, THROTTLE CONTROL ASM.

FUEL SYSTEM, FUEL PUMP MOUNTING

FUEL SYSTEM, FUEL PUMP AND FUEL LINES

-

ASM-SUB TANK VALVE PUMP HOSE

1206317

$83,99 Unit Price incl. VAT

-

ASM-SUB IMPULSE HOSE

1206314

$19,94 Unit Price incl. VAT

-

ASM-SUB MAG CARB HOSE

1206315

$52,49 Unit Price incl. VAT

-

ASM-SUB PTO CARB HOSE

1206316

$141,74 Unit Price incl. VAT

-

WRENCH-8MMX10MM OPEN END

Not Available

1

CLAMP HOSE

7080558

9999999

Not Available

2

FUEL HOSE-150 CM

8450117150

Not Available

3

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

4

FUEL VALVE PLASTIC 90 DEGREES 1/4 HOSE

7052249

$52,49 Unit Price incl. VAT

5

HOSE CLAMP

7080003

$2,09 Unit Price incl. VAT

6

TUBING CONVOLUTED

8360052305

Not Available

7

FUEL-LINE 150CM

8450040150

Not Available

8

FITTING-HOSE PTO CARB

5457302

$12,59 Unit Price incl. VAT

9

FITTING TEE

7052075

$17,84 Unit Price incl. VAT

10

VACUUM CHECK VALVE

7052390

$15,74 Unit Price incl. VAT

11

ROUTING CLIP

7081496

$9,44 Unit Price incl. VAT

12

CLAMP-HOSE 17/32 GREEN

7081432

$7,34 Unit Price incl. VAT

13

HOSE CLAMP

7080003

$2,09 Unit Price incl. VAT

14

CAP-END PTO CARB HOSE

5457303

$26,24 Unit Price incl. VAT

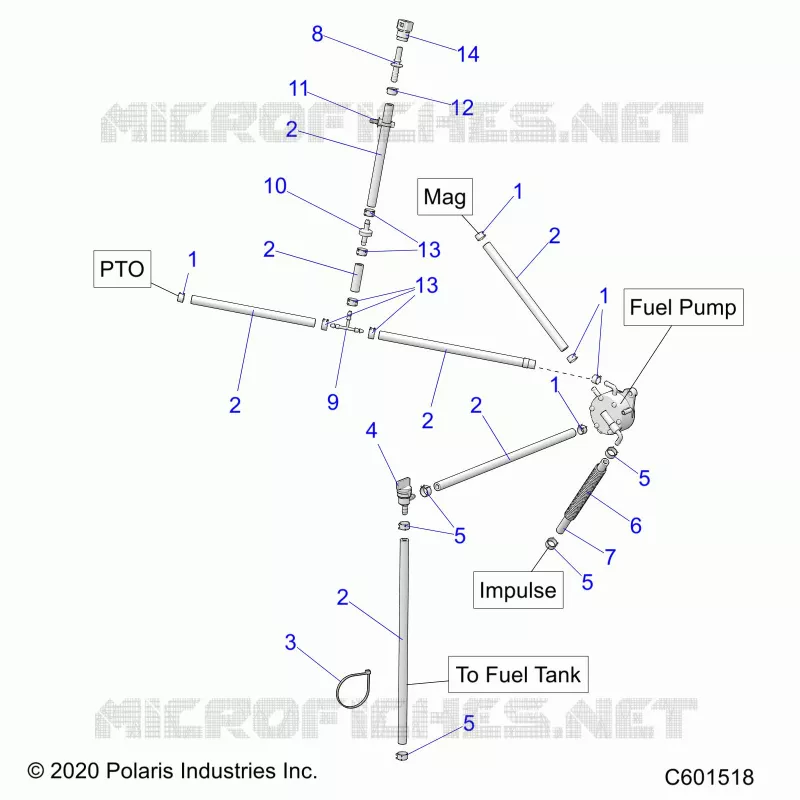

Find the detailed FUEL SYSTEM, FUEL PUMP AND FUEL LINES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
