ENGINE, AIR INTAKE SYSTEM for POLARIS RANGER 570 FULL SIZE from 2023

ENGINE, AIR INTAKE SYSTEM

1

AIRBOX ASSEMBLY

1204923

$283,49 Unit Price incl. VAT

2

AIR INTAKE BOX

5450174

$257,24 Unit Price incl. VAT

3

BOOT-ENGINE INTAKE

5417998

$83,99 Unit Price incl. VAT

4

AIRBOX CLIP

7081707

$9,44 Unit Price incl. VAT

5

AIR FILTER

7082037

$48,71 Unit Price incl. VAT

6

COMPRESSION SHAFT LIMITER; 34.4 MM

5138987

$31,49 Unit Price incl. VAT

7

DRAIN PLUG

5414472

$10,49 Unit Price incl. VAT

8

BUSHING-MOUNT

5414719

$5,24 Unit Price incl. VAT

9

PLUG-1 INCH

5414780

$7,34 Unit Price incl. VAT

10

AIRBOX COVER

5450175

$47,24 Unit Price incl. VAT

11

AIR BOX COVER SEAL

5814106

$20,99 Unit Price incl. VAT

12

BAND CLAMP; NARROW

7080707

$5,76 Unit Price incl. VAT

13

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

14

HOSE ASSEMBLY; BREATHER

2521911

$99,74 Unit Price incl. VAT

14

VALVE BREATHER WITH .53 IN BARB ID

7052577

$52,49 Unit Price incl. VAT

15

INTAKE DUCT; AIRBOX

5415900

$89,24 Unit Price incl. VAT

16

SEAL ENGINE INLET

5415033

$7,34 Unit Price incl. VAT

17

ENGINE HOSE; INLET

5414748

$29,39 Unit Price incl. VAT

18

SPRING HOSE CLAMP; .81

7081026

$14,69 Unit Price incl. VAT

19

CLAMP HOSE

7081623

$5,76 Unit Price incl. VAT

20

BOLT M6 X 1.0 X 20

7518529

$2,09 Unit Price incl. VAT

21

HEX FLANGE SCREW; 8 MM X 1.25 MM X 60 MM

7519298

$7,34 Unit Price incl. VAT

22

DECAL-CAUTION HEADER;AIRBOX

7180122

Not Available

23

DECAL-CAUTION INFO;AIRBOX

7181728

Not Available

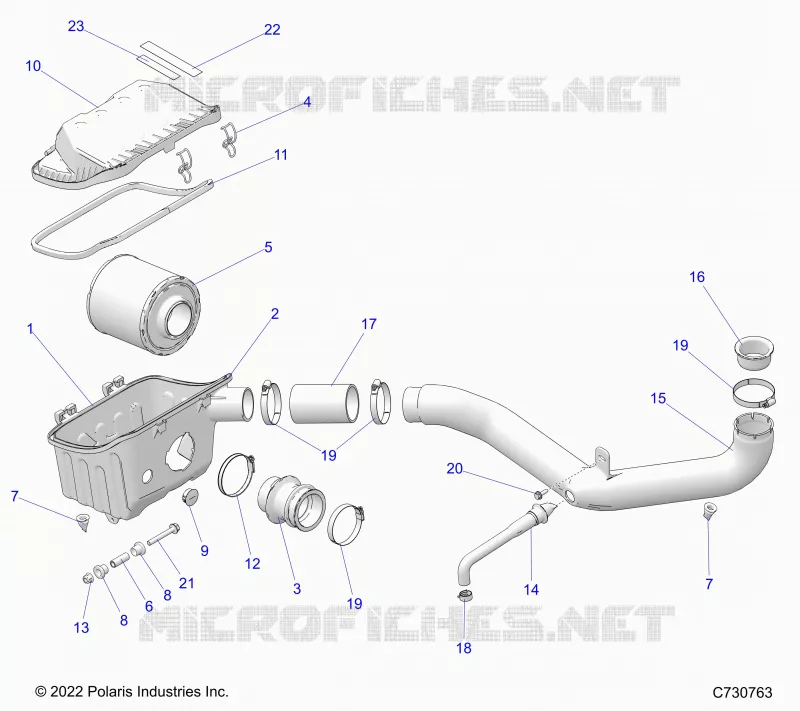

Find the detailed ENGINE, AIR INTAKE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
