1
Engine displacement
570
2
Year
2023
3
Trim
RANGER SP 570 CREW NORTHSTAR EDITION
4
Parts Catalog
ENGINE, COOLING SYSTEM
5
Parts Diagram
Parts Catalog
CAM CHAIN AND SPROCKET
by
CRANKCASE
ENGINE, COOLING SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
1
ASM-RADIATOR
1241476
$818,99 Unit Price incl. VAT
2
ASM-FAN AND MOTOR;TRIPAC;SGL
2415473
$331,79 Unit Price incl. VAT
3
BOLT 6 MM X 15 MM
7519585
$17,84 Unit Price incl. VAT
4
HOSE-UPPER RAD
5417585
$83,99 Unit Price incl. VAT
5
HOSE-ENG INLET
5417872
$68,24 Unit Price incl. VAT
6
HOSE-ENGINE OUTLET;REAR
5417587
$89,24 Unit Price incl. VAT
7
HOSE-HEATER FRONT
5417873
$20,99 Unit Price incl. VAT
8
TUBE-COOLANT 1 CREW
5143869
$99,74 Unit Price incl. VAT
9
COOLANT TUBE BRACKET
5451221
$16,79 Unit Price incl. VAT
10
TUBE-COOLANT 1 CREW
5143870
$99,74 Unit Price incl. VAT
11
HOSE-BYPASS 1/2IN FORMED
5417890
$89,24 Unit Price incl. VAT
12
TEE CONNECTOR; 1 X 1 X 0.5
7052530
$10,49 Unit Price incl. VAT
13
TUBE-HVAC COOLANT CREW
5345382
$120,74 Unit Price incl. VAT
14
SPRING BAND CLAMPS; 32/12
7080843
$7,34 Unit Price incl. VAT
15
HOSE CLAMP
7080474
$13,64 Unit Price incl. VAT
16
SCREW
7512026
$2,09 Unit Price incl. VAT
17
HOSE CLAMP; 25-40 MM
7081192
$14,69 Unit Price incl. VAT
18
BRKT-SURGE TANK;BLK
5273772329
Not Available
19
SURGE TANK
5439202
$178,49 Unit Price incl. VAT
20
FUEL LINE; 1/4 ID
84500031525
Not Available
21
CAP PLUG9X(GRN) FLEX TEMP(10)
5433774
$10,49 Unit Price incl. VAT
22
GASKET
5810279
$4,19 Unit Price incl. VAT
23
OVERFLOW CAP
5430743
$10,49 Unit Price incl. VAT
24
BRKT-RAD MNT;UPPER;BLK
5270541458
Not Available
25
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
26
RADIATOR MOUNT BUSHING; LOWER
5410584
$10,49 Unit Price incl. VAT
27
GROMMET AND INSERT ASSEMBLY
5416503
$7,34 Unit Price incl. VAT
28
ROUTING CLIP
7081496
$9,44 Unit Price incl. VAT
29
CABLE TIE STRAP WITH EDGE CLIP
7081808
$10,49 Unit Price incl. VAT
30
SCREW
7515179
$4,19 Unit Price incl. VAT
31
SCR-M6X1X40 TR/TX-M
7519001
$7,34 Unit Price incl. VAT
32
SPRINGBAND CLAMP; 27/12; GREEN
7080841
$13,64 Unit Price incl. VAT
33
BOLT
7519650
$7,34 Unit Price incl. VAT
34
CLIP-COOLANT ROUTING
5453767
$10,49 Unit Price incl. VAT
35
CLIP-OMEGA CABLE/19-24.5MM DIA
7082408
$23,09 Unit Price incl. VAT
36
STRAP-PANDUIT DBL LOOP 260MM
7081916
$9,44 Unit Price incl. VAT
37
HOSE-COOLANT 3WAY-ENG
5417704
$23,09 Unit Price incl. VAT
38
HOSE-COOLANT 3WAY-RAD
5417705
$62,99 Unit Price incl. VAT

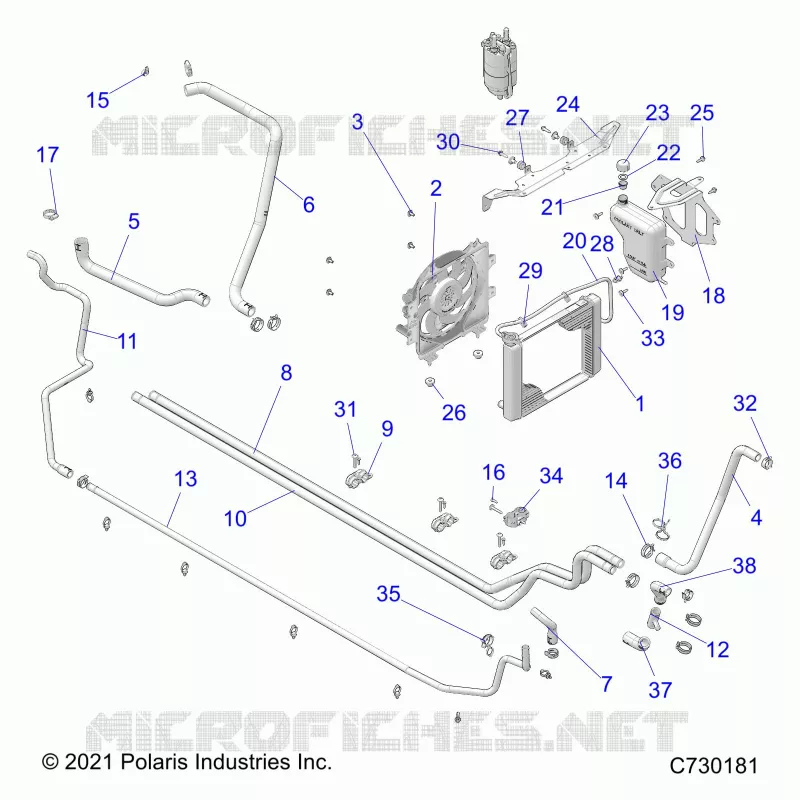

Find the detailed ENGINE, COOLING SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
