1
Engine displacement
500
2
Year
2000
3
Trim
SPORTSMAN 500 - A00CH50AF
4
Parts Catalog
REAR CAB SEAT
5
Parts Diagram
Parts Catalog
FRONT STRUT
by
DECALS
REAR CAB SEAT
1
RIVET
7661645
9999999
Not Available
2
SCREW(10)
7511930
$4,19 Unit Price incl. VAT
3
WASHER
7555792
$9,44 Unit Price incl. VAT
4
FOIL REAR
5811107
9999999
Not Available
5
CAB REAR GEN4 MD.YELLOW
5432117053
Not Available
5
CAB-REAR GEN 4 GUNMETAL
5432117317
Not Available
5
CAB REAR GEN 4 M.O. CAMO
5433282283
Not Available
5
CAB REAR GEN 4 P.RED
5432117136
Not Available
5
CAB REAR GEN 4 OLV.GRN.
5432117191
Not Available
6
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
7
RETAINER SEAT LATCH
5224592
9999999
Not Available
8
FOIL TAPE 3 X 12
5811308
9999999
Not Available
9
SCREW
7512242
$4,19 Unit Price incl. VAT
10
FLAT WASHER
7555859
$2,09 Unit Price incl. VAT
11
SCREW
7512085
9999999
Not Available
12
BOX TOOL
5433640
Not Available
13
BLIND RIVET
7621403
$2,09 Unit Price incl. VAT
14
BRACKET; LEVER RETAINER
5211033
9999999
Not Available
15
SEAT LATCH
1040387
9999999
Not Available
16
SPRING LATCH
7041370
$17,84 Unit Price incl. VAT
17
SEAT BLK
2682441070
Not Available
17
COVER SEAT BLK.
2681747070
Not Available
17
FOIL SEATBASE LG.
5811104
9999999
Not Available
17
FOIL SEATBASE SM.
5811105
9999999
Not Available
18
BUMPER RUBBER
5410414
$6,29 Unit Price incl. VAT
19
BOLT
7512130
$7,34 Unit Price incl. VAT
20
WASHER
7555748
$9,44 Unit Price incl. VAT
21
COVER TOOLBOX
5431787
9999999
Not Available
22
FITTING 90 DEG 1/8
7052095
$9,44 Unit Price incl. VAT
23
CAP DRAIN (10)
5410896
9999999
Not Available
24
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
25
GUARDCLUTCHBLK
5242953067
Not Available
26
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
27
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
28
SCREW
7512492
$2,09 Unit Price incl. VAT
29
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
30
FOOTWELL SPACER
5432280
9999999
Not Available
31
SCREW
7517377
$9,44 Unit Price incl. VAT
32
FRAME MAIN BLK. (If built after 3/13/00)
1013359067
Not Available
32
MAINFRAME BLK Substituted by 1013359-067 (If built before 3/13/00)
1012979067
Not Available
33
Decal Hitch
7078261
Not Available
34
SCREW
7517376
7512279
$1,56 Unit Price incl. VAT
35
LEFT FOOTWELL NY; GLOSS BLACK
5432221070
Not Available
35
FOOTWELL; RIGHT SIDE; GLOSS BLACK
5433219070
Not Available
36
FOIL
5811111
9999999
Not Available
37
FOIL FRONT
5811106
9999999
Not Available
38
DECAL CARB.INFO.
7073761
Not Available
39
DECAL FILT.ELEMENT 4-S
7077446
Not Available
40
FOIL (6X1)
5811087
9999999
Not Available
41
BOLT
7512232
$2,09 Unit Price incl. VAT
42
SPEED NUT
7670057
$2,09 Unit Price incl. VAT
43
MUD GUARD REAR RIGHT GLOSS BLACK
5431797070
Not Available
43
MUD GUARD REAR LEFT GLOSS BLACK
5431796070
Not Available

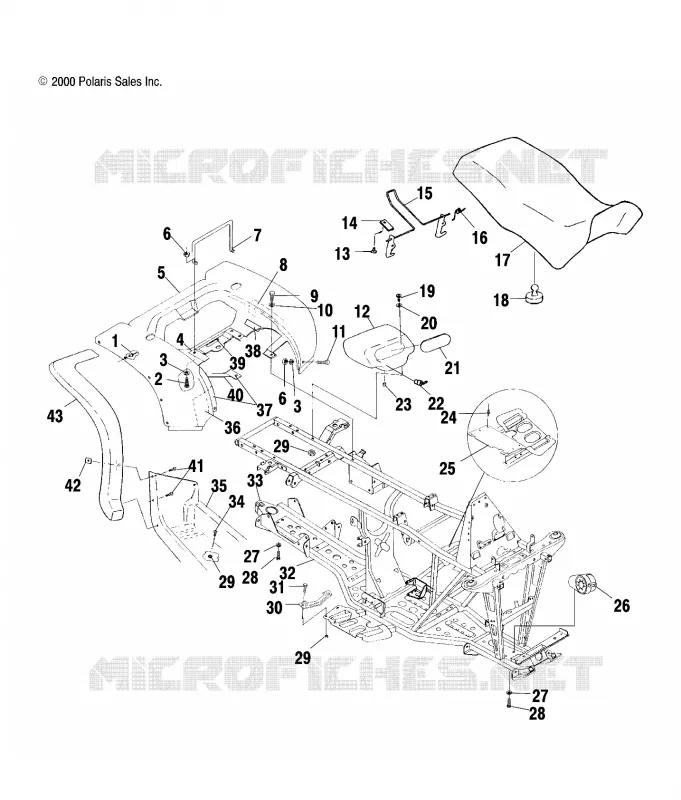

Find the detailed REAR CAB SEAT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
