SUSPENSION, RAIL BEAM LH/RH for POLARIS PATRIOT BOOST INDY VR1 137 from 2023

SUSPENSION, RAIL BEAM LH/RH

1

SCR-TXTH-M6X1.0X25 8.8 ZPB

7520133

$6,29 Unit Price incl. VAT

2

RAIL TIP CAP

5452441

$26,24 Unit Price incl. VAT

3

WASHER

7556064

$9,44 Unit Price incl. VAT

4

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

5

NUT NYLOK 10-24 Y

7541925

$1,56 Unit Price incl. VAT

6

WASHER FLAT

7555783

$7,34 Unit Price incl. VAT

7

BUMPER-JOUNCE FTA PROG

5522253

$16,79 Unit Price incl. VAT

8

HEX FLANGE SCREW; 6 MM X 1.0 MM X 70 MM

7519908

7521331-70

$1,56 Unit Price incl. VAT

9

WSHR-M6 OFFSET 2.01 ZOD

7556799

$6,29 Unit Price incl. VAT

10

BEARING; .7874 X 1.6535 X .4724

3515142

$34,64 Unit Price incl. VAT

10

RETAINING RING

7710444

$15,74 Unit Price incl. VAT

10

ASM-WHEEL SPOKED 5.62

1590632

$66,66 Unit Price incl. VAT

11

SCREW

7517510

$9,44 Unit Price incl. VAT

12

WHEEL MOUNT BLOCK

5633278

$47,24 Unit Price incl. VAT

13

SCREW

7512025

$9,44 Unit Price incl. VAT

14

CL8.8 OLV-D

7518906

$6,29 Unit Price incl. VAT

15

SOCKET HEAD SCREW 10 MM X 1.5 MM X 30 MM

7519844

$9,44 Unit Price incl. VAT

15

SCR-TXTH-M8X1.25X20 8.8 BLK

7519997

$7,34 Unit Price incl. VAT

16

MOUNT-BUMPER METRIC

5136571

$18,89 Unit Price incl. VAT

16

BUMPER

5432166

$9,44 Unit Price incl. VAT

17

ASM-RAIL 137 CPL SVC RH ORG

1545001647

Not Available

17

ASM-RAIL 137 CPL SVC LH BLK

1545000067

Not Available

17

ASM-RAIL 137 CPL SVC RH BLK

1545001067

Not Available

17

ASM-RAIL 137 CPL SVC LH RED

1545000293

Not Available

17

ASM-RAIL 137 CPL SVC RH VELBLU

1545001689

Not Available

17

ASM-RAIL 137 CPL SVC RH LFTLM

1545001801

Not Available

17

ASM-RAIL 137 CPL SVC LH VELBLU

1545000689

Not Available

17

ASM-RAIL 137 CPL SVC RH RED

1545001293

Not Available

17

ASM-RAIL 137 CPL SVC LH ORG

1545000647

Not Available

17

ASM-RAIL 137 CPL SVC LH LFTLM

1545000801

Not Available

17

PIVOT ARM BUMPER

5410925

$26,24 Unit Price incl. VAT

18

BLOCK-IDLER BOLT ADJ METRIC

5136570

$62,99 Unit Price incl. VAT

19

RIVET

7621501

$4,19 Unit Price incl. VAT

20

SPACER-IDLER ADJ ALUM

5141837

$13,64 Unit Price incl. VAT

21

HEX NUT; 10 MM X 1.5 MM

7547707

$7,34 Unit Price incl. VAT

22

HEX SCREW; 10 MM X 1.5 MM X 100 MM

7520083

$23,09 Unit Price incl. VAT

23

SCREW

7515199

$2,09 Unit Price incl. VAT

24

PLATE-RAIL REINF BLK ANODIZED

5143395

$293,99 Unit Price incl. VAT

25

PIN-CLEVIS 3/16X1 1/4

7661123

$7,34 Unit Price incl. VAT

26

SHAFT-SPRING ROLLER

5144612

$20,99 Unit Price incl. VAT

27

SPRING SQUARE GUIDE

5434334

$62,99 Unit Price incl. VAT

28

HITCH PIN

7661644

$4,19 Unit Price incl. VAT

29

HI-FAX-137 LWT BLK

5522117070

Not Available

30

SCREW

7510504

$10,49 Unit Price incl. VAT

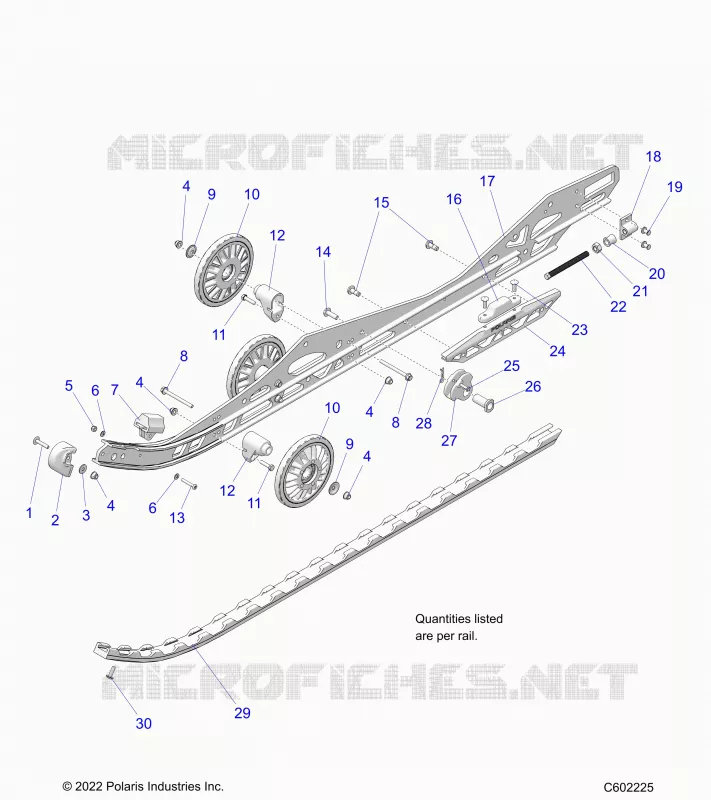

Find the detailed SUSPENSION, RAIL BEAM LH/RH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
