1
Engine displacement
570
2
Year
2018
3
Trim
SPORTSMAN 570 EFI X2 EPS
4
Parts Catalog
EXHAUST
5
Parts Diagram
Parts Catalog
ENGINE, AIR INTAKE SYSTEM SUPPORT BRACKET
by
ENGINE, MOUNTING
EXHAUST
1
1
2
2
3
3
4
4
5
6
6
7
7
8
8
9
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
24
25
26
27
28
28
29
1
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
2
WASHER
7555716
$3,14 Unit Price incl. VAT
3
WASHER 15.4 X 38.1 X 7.9 RUB
5414945
$9,44 Unit Price incl. VAT
4
SPRING
7041804
$16,79 Unit Price incl. VAT
5
BRKT-EXHAUST MNT;PLATED
5258198
$31,49 Unit Price incl. VAT
6
VIBRATION DAMPER
5414946
$9,44 Unit Price incl. VAT
7
BUSHING
5010192
$12,59 Unit Price incl. VAT
8
BOLT
7515316
$4,19 Unit Price incl. VAT
9
CLAMP-HOSE 2.00-SS
7082359
$25,19 Unit Price incl. VAT
10
ASM-EXHAUST PIPE;570 EFI;SS
1263100
$545,99 Unit Price incl. VAT
11
EXHAUST HEAT SHIELD; MID
5260801
5267367
$120,74 Unit Price incl. VAT
12
MANIFOLD WELD
1263099
$278,24 Unit Price incl. VAT
13
SHIELD-HEAT EXHAUST HEADPIPE
5260800
$68,24 Unit Price incl. VAT
14
EXHAUST WELD; SILENCER
1263139
1263784
$703,49 Unit Price incl. VAT
15
BOLT-1/2-13 X5/8 HHCS 304 SS
7520756
$10,49 Unit Price incl. VAT
16
WASHER-CLEAN OUT .51X75X.09
7557077
$14,69 Unit Price incl. VAT
17
EXHAUST SEALING GASKET
5253989
$52,49 Unit Price incl. VAT
18
HEX SOCKET SCREW
7517555
$15,74 Unit Price incl. VAT
19
EXHAUST HEAT SHIELD; REAR
5265059
5267366
$136,49 Unit Price incl. VAT
20
HEAT SHIELD; MID EXHAUST; INNER
5260808
5267368
$62,99 Unit Price incl. VAT
21
BOLT-5/16-18X1-3/4 HXFLNG GR5
7518341
$9,44 Unit Price incl. VAT
22
EXHAUST SEAL
5256385
$52,49 Unit Price incl. VAT
23
FLANGE NUT
7542343
$9,44 Unit Price incl. VAT
24
CLAMP-45.0DX7W 304SS OETIKER
7082132
$9,44 Unit Price incl. VAT
25
SHIELD-HEAT EXHAUST
5259925
$68,24 Unit Price incl. VAT
26
SHIELD-FUEL TANK;FRAME MNT;TRG
5262925
$52,49 Unit Price incl. VAT
27
SHIELD-HEAT AIRBOX
5263227
9999999
Not Available
28
SCREW
7517386
$2,09 Unit Price incl. VAT
29
NUT
7670096
$3,14 Unit Price incl. VAT

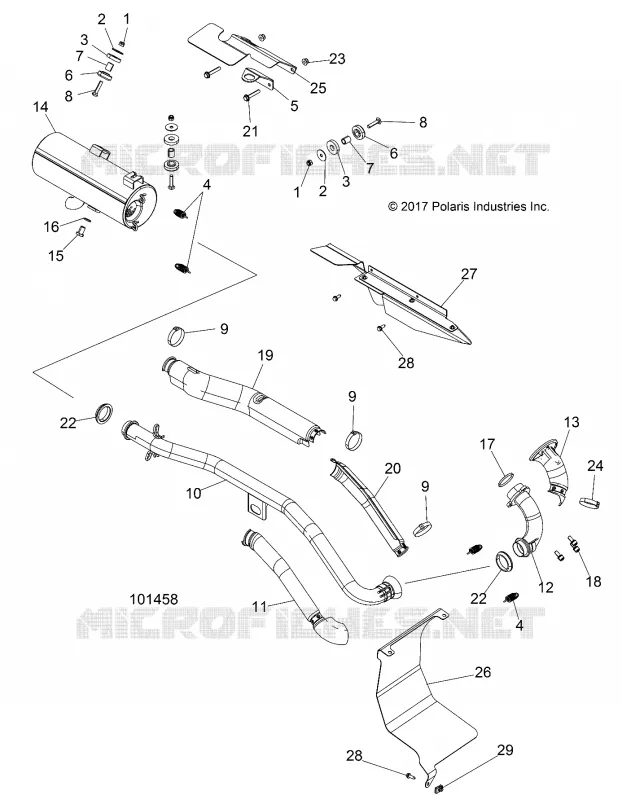

Find the detailed EXHAUST POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.

Other Parts for SPORTSMAN 570 EFI X2 EPS

SEAT, OPERATOR

SEAT, OPERATOR

for SPORTSMAN 570 EFI X2 EPS from 2018

SEAT, PASSENGER, BACK

SEAT, PASSENGER, BACK

for SPORTSMAN 570 EFI X2 EPS from 2018

SEAT, PASSENGER, BOTTOM

SEAT, PASSENGER, BOTTOM

for SPORTSMAN 570 EFI X2 EPS from 2018

STORAGE, FRONT

STORAGE, FRONT

for SPORTSMAN 570 EFI X2 EPS from 2018

DRIVE TRAIN, GEAR SELECTOR

DRIVE TRAIN, GEAR SELECTOR

for SPORTSMAN 570 EFI X2 EPS from 2018

DRIVE TRAIN, MAIN GEARCASE MOUNTING

DRIVE TRAIN, MAIN GEARCASE MOUNTING

for SPORTSMAN 570 EFI X2 EPS from 2018

DRIVE TRAIN, PRIMARY CLUTCH

DRIVE TRAIN, PRIMARY CLUTCH

for SPORTSMAN 570 EFI X2 EPS from 2018

CAM CHAIN AND SPROCKET

CAM CHAIN AND SPROCKET

for SPORTSMAN 570 EFI X2 EPS from 2018

ENGINE, COOLING SYSTEM

ENGINE, COOLING SYSTEM

for SPORTSMAN 570 EFI X2 EPS from 2018

CRANKCASE

CRANKCASE

for SPORTSMAN 570 EFI X2 EPS from 2018

ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT

ENGINE, CRANKSHAFT, PISTON AND BALANCE SHAFT

for SPORTSMAN 570 EFI X2 EPS from 2018

CYLINDER

CYLINDER

for SPORTSMAN 570 EFI X2 EPS from 2018

REFERENCE, OWNERS MANUAL

REFERENCE, OWNERS MANUAL

for SPORTSMAN 570 EFI X2 EPS from 2018

STEERING, CONTROLS, THROTTLE ASM. AND CABLE

STEERING, CONTROLS, THROTTLE ASM. AND CABLE

for SPORTSMAN 570 EFI X2 EPS from 2018

POWER STEERING EPS

POWER STEERING EPS

for SPORTSMAN 570 EFI X2 EPS from 2018

BED BOX

BED BOX

for SPORTSMAN 570 EFI X2 EPS from 2018

REAR BODYWORK BOX FRAME AND PIVOT

REAR BODYWORK BOX FRAME AND PIVOT

for SPORTSMAN 570 EFI X2 EPS from 2018

BODY, RIGHT HAND SIDE PANEL HEAT SHIELD AND HARDWARE 2 UP

BODY, RIGHT HAND SIDE PANEL HEAT SHIELD AND HARDWARE 2 UP

for SPORTSMAN 570 EFI X2 EPS from 2018

TAILGATE

TAILGATE

for SPORTSMAN 570 EFI X2 EPS from 2018

BRAKE LINES

BRAKE LINES

for SPORTSMAN 570 EFI X2 EPS from 2018

DRIVE TRAIN, FRONT DRIVE SHAFT

DRIVE TRAIN, FRONT DRIVE SHAFT

for SPORTSMAN 570 EFI X2 EPS from 2018

DRIVE TRAIN, FRONT GEARCASE MOUNTING

DRIVE TRAIN, FRONT GEARCASE MOUNTING

for SPORTSMAN 570 EFI X2 EPS from 2018

ELECTRICAL, BULBS

ELECTRICAL, BULBS

for SPORTSMAN 570 EFI X2 EPS from 2018

ELECTRICAL, SWITCHES, SENSORS AND ECM

ELECTRICAL, SWITCHES, SENSORS AND ECM

for SPORTSMAN 570 EFI X2 EPS from 2018

ENGINE, AIR INTAKE SYSTEM

ENGINE, AIR INTAKE SYSTEM

for SPORTSMAN 570 EFI X2 EPS from 2018

ENGINE, CYLINDER HEAD, CAMS AND VALVES

ENGINE, CYLINDER HEAD, CAMS AND VALVES

for SPORTSMAN 570 EFI X2 EPS from 2018

LONG BLOCK

LONG BLOCK

for SPORTSMAN 570 EFI X2 EPS from 2018

ENGINE, THROTTLE BODY AND FUEL RAIL

ENGINE, THROTTLE BODY AND FUEL RAIL

for SPORTSMAN 570 EFI X2 EPS from 2018

ENGINE, WATERPUMP IMPELLER AND COVER

ENGINE, WATERPUMP IMPELLER AND COVER

for SPORTSMAN 570 EFI X2 EPS from 2018

SUSPENSION, A-ARM AND STRUT MOUNTING

SUSPENSION, A-ARM AND STRUT MOUNTING

for SPORTSMAN 570 EFI X2 EPS from 2018

REAR SUSPENSION

REAR SUSPENSION

for SPORTSMAN 570 EFI X2 EPS from 2018

TOOL KIT

TOOL KIT

for SPORTSMAN 570 EFI X2 EPS from 2018

ELECTRICAL, HEADLIGHTS

ELECTRICAL, HEADLIGHTS

for SPORTSMAN 570 EFI X2 EPS from 2018

BODY, CLUTCH COVER

BODY, CLUTCH COVER

for SPORTSMAN 570 EFI X2 EPS from 2018

REAR BODYWORK CAB AND FOOTWELLS

REAR BODYWORK CAB AND FOOTWELLS

for SPORTSMAN 570 EFI X2 EPS from 2018

TAILGATE BRACKETS

TAILGATE BRACKETS

for SPORTSMAN 570 EFI X2 EPS from 2018

BRAKES, BRAKE PEDAL AND MASTER CYLINDER

BRAKES, BRAKE PEDAL AND MASTER CYLINDER

for SPORTSMAN 570 EFI X2 EPS from 2018

DRIVE TRAIN, FRONT GEARCASE

DRIVE TRAIN, FRONT GEARCASE

for SPORTSMAN 570 EFI X2 EPS from 2018

DRIVE TRAIN, FRONT PROP SHAFT

DRIVE TRAIN, FRONT PROP SHAFT

for SPORTSMAN 570 EFI X2 EPS from 2018

DRIVE TRAIN, REAR DRIVE SHAFT

DRIVE TRAIN, REAR DRIVE SHAFT

for SPORTSMAN 570 EFI X2 EPS from 2018

ELECTRICAL, BATTERY

ELECTRICAL, BATTERY

for SPORTSMAN 570 EFI X2 EPS from 2018

ELECTRICAL, TAILLIGHTS

ELECTRICAL, TAILLIGHTS

for SPORTSMAN 570 EFI X2 EPS from 2018

ENGINE, AIR INTAKE SYSTEM SUPPORT BRACKET

ENGINE, AIR INTAKE SYSTEM SUPPORT BRACKET

for SPORTSMAN 570 EFI X2 EPS from 2018

EXHAUST

EXHAUST

for SPORTSMAN 570 EFI X2 EPS from 2018

ENGINE, MOUNTING

ENGINE, MOUNTING

for SPORTSMAN 570 EFI X2 EPS from 2018

THERMOSTAT AND COVER

THERMOSTAT AND COVER

for SPORTSMAN 570 EFI X2 EPS from 2018

ENGINE, VALVE COVER

ENGINE, VALVE COVER

for SPORTSMAN 570 EFI X2 EPS from 2018

SUSPENSION, FRONT STRUT

SUSPENSION, FRONT STRUT

for SPORTSMAN 570 EFI X2 EPS from 2018

SUSPENSION, TORSION BAR

SUSPENSION, TORSION BAR

for SPORTSMAN 570 EFI X2 EPS from 2018

HEADLIGHT POD

HEADLIGHT POD

for SPORTSMAN 570 EFI X2 EPS from 2018

STEERING, HANDLEBAR CONTROLS

STEERING, HANDLEBAR CONTROLS

for SPORTSMAN 570 EFI X2 EPS from 2018

DECALS

DECALS

for SPORTSMAN 570 EFI X2 EPS from 2018

FRONT BUMPER AND MOUNTING

FRONT BUMPER AND MOUNTING

for SPORTSMAN 570 EFI X2 EPS from 2018

FRONT CAB AND SIDE PANELS

FRONT CAB AND SIDE PANELS

for SPORTSMAN 570 EFI X2 EPS from 2018

FRONT BRAKE BRAKE LEVER AND MASTER CYLINDER

FRONT BRAKE BRAKE LEVER AND MASTER CYLINDER

for SPORTSMAN 570 EFI X2 EPS from 2018

FRONT BRAKE CALIPER

FRONT BRAKE CALIPER

for SPORTSMAN 570 EFI X2 EPS from 2018

BRAKES, REAR CALIPERS

BRAKES, REAR CALIPERS

for SPORTSMAN 570 EFI X2 EPS from 2018

CHASSIS, FRAME

CHASSIS, FRAME

for SPORTSMAN 570 EFI X2 EPS from 2018

CHASSIS, FUEL TANK SUPPORT BRACKET

CHASSIS, FUEL TANK SUPPORT BRACKET

for SPORTSMAN 570 EFI X2 EPS from 2018

ELECTRICAL, GAUGES AND INDICATORS

ELECTRICAL, GAUGES AND INDICATORS

for SPORTSMAN 570 EFI X2 EPS from 2018

ELECTRICAL, HARNESS

ELECTRICAL, HARNESS

for SPORTSMAN 570 EFI X2 EPS from 2018

ELECTRICAL, IGNITION COIL, WIRE AND SPARK PLUG

ELECTRICAL, IGNITION COIL, WIRE AND SPARK PLUG

for SPORTSMAN 570 EFI X2 EPS from 2018

ENGINE, OIL FILTER AND DIPSTICK

ENGINE, OIL FILTER AND DIPSTICK

for SPORTSMAN 570 EFI X2 EPS from 2018

OIL PUMP

OIL PUMP

for SPORTSMAN 570 EFI X2 EPS from 2018

STARTER DRIVE

STARTER DRIVE

for SPORTSMAN 570 EFI X2 EPS from 2018

ENGINE, STATOR COVER AND FLYWHEEL

ENGINE, STATOR COVER AND FLYWHEEL

for SPORTSMAN 570 EFI X2 EPS from 2018

WHEELS, FRONT TIRE AND BRAKE DISC

WHEELS, FRONT TIRE AND BRAKE DISC

for SPORTSMAN 570 EFI X2 EPS from 2018

WHEELS, REAR TIRE AND BRAKE DISC

WHEELS, REAR TIRE AND BRAKE DISC

for SPORTSMAN 570 EFI X2 EPS from 2018

BODYWORK

BODYWORK

for SPORTSMAN 570 EFI X2 EPS from 2018

DRIVE TRAIN, SECONDARY CLUTCH

DRIVE TRAIN, SECONDARY CLUTCH

for SPORTSMAN 570 EFI X2 EPS from 2018

FUEL TANK ASM.

FUEL TANK ASM.

for SPORTSMAN 570 EFI X2 EPS from 2018

DRIVE TRAIN, MAIN GEARCASE

DRIVE TRAIN, MAIN GEARCASE

for SPORTSMAN 570 EFI X2 EPS from 2018

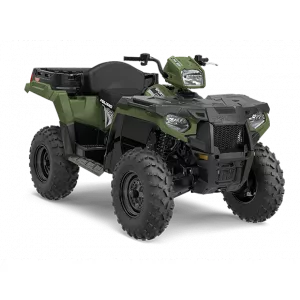

POLARIS SPORTSMAN 570 EFI X2 EPS 2018
