CHASSIS AND SEAT SUPERTRAK UPDATED 10/88 (4915871587001A) for POLARIS TRAIL SUPERTRAK

TRACK DRIVE SHAFT SUPERTRAK UPDATED LO/88 (4915871587030A)

HOOD SUPERTRAK (4915871587003A)

SEAT ASM.(TRAIL<R) Substituted by 2200749 (Incl. 2 63 77)

2681368

Not Available

COVER SEAT Substituted by 2200740

2681391

Not Available

SCREW

7510504

$10,49 Unit Price incl. VAT

RIVET

7621429

$2,09 Unit Price incl. VAT

GRIP; HAND

5431015

9999999

Not Available

SEAT BUN [No Longer Available]

5430927

Not Available

WASHER

7552604

$3,14 Unit Price incl. VAT

GRAB BAR;LH

1011729

1011729-067

Not Available

GRAB BAR;RH

1011730

1011730-067

Not Available

WASHER(10)

7558221

$4,19 Unit Price incl. VAT

COVER TANK [No Longer Available]

2681369

Not Available

GROMMET-GAS TANK

5430575

9999999

Not Available

GASKET-GAS CAP

5810142

5810513

$15,74 Unit Price incl. VAT

GAUGE GAS

2511149

2511246

$83,99 Unit Price incl. VAT

SPRING; TANK

7042020

9999999

Not Available

CUSHION TANK H.D.

5420126

9999999

Not Available

TANK GAS (Incl. 19-22)

2511150

Not Available

FUELPICKUP W/STRAINER

7052037

7052301

$26,24 Unit Price incl. VAT

FITTING OUTLET

7052023

$36,74 Unit Price incl. VAT

KIT-TANK VENT

2200190

9990000

Not Available

VENT FITTING;TANK

5430669

9999999

Not Available

NUT; LOCK

7541929

7541925

$1,56 Unit Price incl. VAT

RIVET

7621457

$2,09 Unit Price incl. VAT

WASHER FLAT

7555783

$7,34 Unit Price incl. VAT

POP RIVET

7621402

$2,09 Unit Price incl. VAT

RIVET

7621452

9999999

Not Available

POP RIVET

7621330

$2,09 Unit Price incl. VAT

CLIP WIRING

4020035

9999999

Not Available

HINGE

5211047

9999999

Not Available

WASHER 13/64X1/2X18GA FL-Y (10

7558212

$1,56 Unit Price incl. VAT

RIVET; (MONOBOLT)

7661620

7661637

$2,09 Unit Price incl. VAT

GUARD CLUTCH

5230118

5240965

Not Available

PIN-CLUTCH COVER

7080216

7080698

$17,84 Unit Price incl. VAT

PIN FRONT

7080311

9999999

Not Available

TUNNEL ASM(SUPERTRAK) [No Longer Available]

1011684

Not Available

BACKREST(SUPERTRAK) [No Longer Available] (Incl. 62)

2681408

Not Available

KNOB ADJ.

7030007

9999999

Not Available

WASHER WROUGHT

7558302

$3,14 Unit Price incl. VAT

BOLT

7512325

$4,19 Unit Price incl. VAT

LINE FUEL (FT.)

8450003

8450003-1525

$136,49 Unit Price incl. VAT

BRKT.

5220542

5220542-067

Not Available

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

FOOTREST ASM LH

2200250

Not Available

FOOTREST ASM RH

2200254

Not Available

STRAP GAS TANK

5221722

9999999

Not Available

PAD RH R.SUSP.MTG.01 Substituted by 1011728-067

1011728

Not Available

PAD LH R.SUSP.MTG.

1011727

9999999

Not Available

FOOTREST RH REAR

5220894

9999999

Not Available

FOOTREST LH REAR

5220893

9999999

Not Available

SUPPORT MUFFLER Substituted by 1011601-067

1011601

Not Available

SCREW

7512116

9999999

Not Available

RIVET(10)

7621222

9999999

Not Available

PLATE;TUNNEL;RH

5220635

9999999

Not Available

PLATE;TUNNEL;LH

5220634

9999999

Not Available

FOAM FILLER

5810201

Not Available

DECAL(47.5##)TUNNEL [No Longer Available]

7072078

Not Available

CARRIAGE BOLT

7512193

$4,19 Unit Price incl. VAT

RIVET(10)

7621301

9999999

Not Available

PAD LH FOOT SAFETY

5830007

9999999

Not Available

PAD RH FOOT SAFETY

5830008

9999999

Not Available

BRACKET

5221932

9999999

Not Available

BULKHEAD (TRAIL) (Trail)

1011612

Not Available

BRACKET; HINGE

5220406

5241437

Not Available

DECAL WARNING [No Longer Available] (600 SE)

7072153

Not Available

SNAP-MALE

7080227

9999999

Not Available

NUT SPEED

7670021

$10,49 Unit Price incl. VAT

COVER BACKREST [No Longer Available]

2681332

Not Available

BUCKLE&STRAP (Trail)

2681291

Not Available

NYLOK NUT

7542122

$2,09 Unit Price incl. VAT

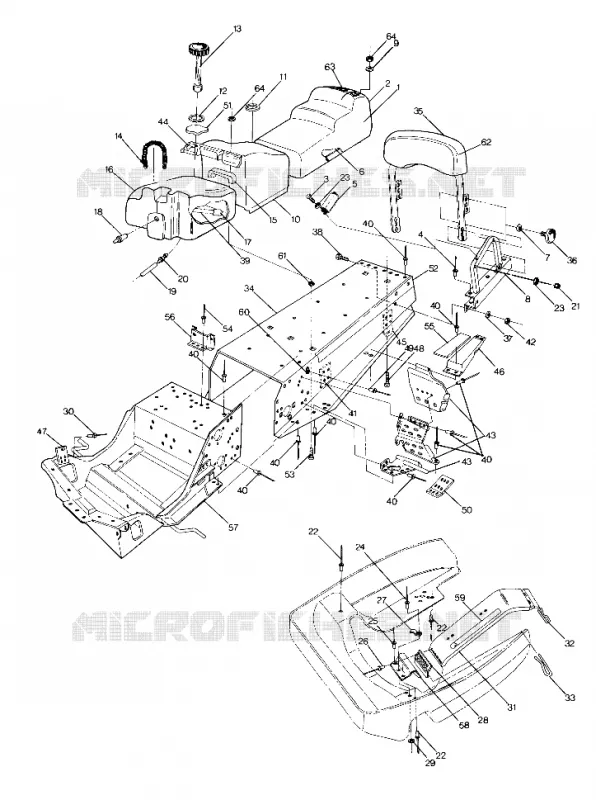

Find the detailed CHASSIS AND SEAT SUPERTRAK UPDATED 10/88 (4915871587001A) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
