1
Engine displacement
1000
2
Year
2022
3
Trim
SPORTSMAN XP 1000 S 55"
4
Parts Catalog
FRONT CAB AND SIDE PANELS
5
Parts Diagram
Parts Catalog
FRONT BUMPER
by
BODY, FRONT MUD GUARDS

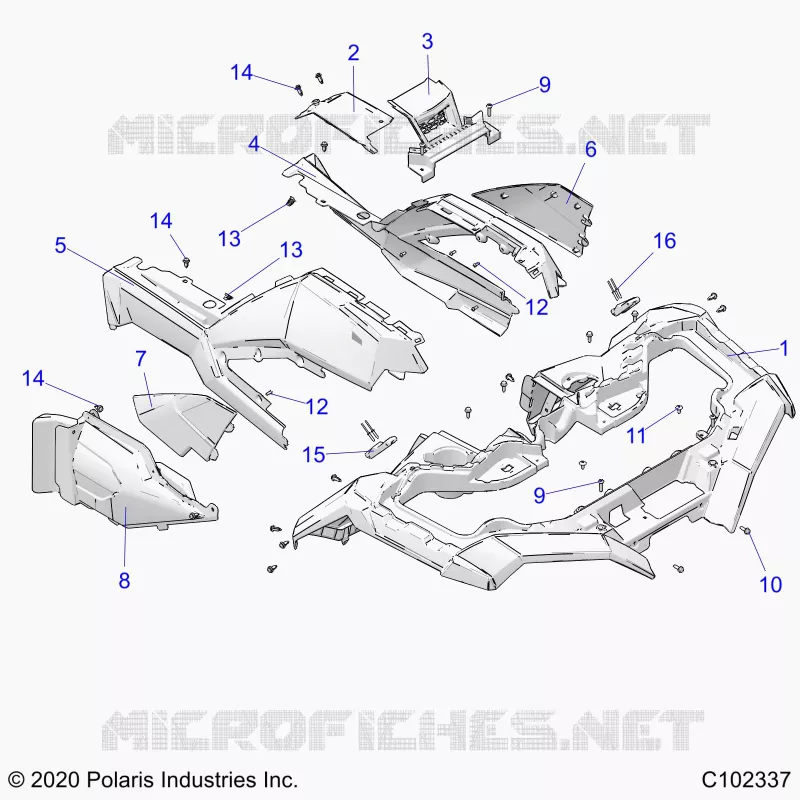

FRONT CAB AND SIDE PANELS
1
2
3
4
5
6
7
8
9
9
10
11
12
12
13
13
14
14
14
15
16
1
ASM-CAB FR SVC PNT SPRGRAPH
2637502509
Not Available
2
ASM-COVER CENTER BLK
2637412070
Not Available
3
ASM-COVER FRONT BLK
2637244070
Not Available
4
PANEL-SIDE UPR LH PNTD SPRGRAP
5455513509
Not Available
5
ASM-PANEL SIDE RH PNTD SPRGRAP
2637464509
Not Available
6
SIDE PANEL; FRONT; LEFT; BLACK
5452925070
Not Available
7
SIDE PANEL; FRONT; RIGHT; GLOSS BLACK
5452926070
Not Available
8
ASM-SHIELD EXHAUST COVER
2637243
$167,99 Unit Price incl. VAT
9
SCREW #14 X 1 HI/LO
7518158
$9,44 Unit Price incl. VAT
10
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
11
SCR-TXTH-M6X1.0X15 ZPB TAP
7519092
$2,09 Unit Price incl. VAT
12
SCREW
7512076
$2,09 Unit Price incl. VAT
13
DASH TRIM CLIP
7519806
$7,34 Unit Price incl. VAT
14
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
15
LATCH-RUBBER LOWER
7082654
$68,24 Unit Price incl. VAT
16
RIVET
7621334
$2,09 Unit Price incl. VAT

Find the detailed FRONT CAB AND SIDE PANELS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
