1
Engine displacement
800
2
Year
2013
3
Trim
800 SWITCHBACK PRO-R / ES / RETRO / LE
4
Parts Catalog
FRONT WISHBONES
5
Parts Diagram
Parts Catalog
STEERING, SKI ASM.
by
REAR SUSPENSION AND TRACK
FRONT WISHBONES
1
2
2
2
3
3
4
4
5
5
5
5
6
6
7
8
8
9
10
10
11
12
13
13
14
15
16
16
17
17
17
17
18
1
HEX FLANGE SCREW; 10 MM X 1.5 MM X 95 MM
7518917
$9,44 Unit Price incl. VAT
2
PIVOT SHAFT
5137700
$68,24 Unit Price incl. VAT
3
PIVOT BUSHING
5438792
$4,19 Unit Price incl. VAT
4
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
5
CONTROL ARM KIT; UPPER; RIGHT; MT BLK
2204666458
Not Available
5
CONTROL ARM KIT; UPPER; RIGHT; INDY RED
2204666293
Not Available
5
CONTROL ARM; UPPER; LEFT SIDE; MT BLK
2204665458
Not Available
5
CONTROL ARM KIT; LEFT; INDY RED
2204665293
Not Available
6
RING-RET INT 1.125
7710642
$4,19 Unit Price incl. VAT
6
SPHERICAL CONTROL ARM BEARING UPR 31 MM
7061179
$47,24 Unit Price incl. VAT
7
WASHER 7/16
7556212
$15,74 Unit Price incl. VAT
8
SPINDLE ASSEMBLY; LEFT
1823801
$314,99 Unit Price incl. VAT
8
SPINDLE ASSEMBLY; RIGHT
1823802
$314,99 Unit Price incl. VAT
9
NUT-HEX-M12X1.5 8 ZOD NYL
7547464
$6,29 Unit Price incl. VAT
10
SKI PIVOT BUSHING
5438460
$27,29 Unit Price incl. VAT
11
BUSHING 15.88 X 10.13 X 76.20
5136910
$13,64 Unit Price incl. VAT
12
SCR-M10X1.5X75 10.9 HCS ZOD
7519015
$10,49 Unit Price incl. VAT
13
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
14
RING-RETAINING 1.25 ID HSNG
7710539
$4,19 Unit Price incl. VAT
15
SPHERICAL BEARING KIT; 10 MM
2204229
$54,59 Unit Price incl. VAT
16
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$7,34 Unit Price incl. VAT
17
CONTROL ARM; LOWER; LEFT SIDE; MT BLK
2204663458
Not Available
17
CONTROL ARM KIT; LOWER; LEFT
2204663293
Not Available
17
CONTROL ARM; LOWER; RIGHT; MATTE BLACK
2204664458
Not Available
17
CONTROL ARM KIT; LOWER; RIGHT; INDY RED
2204664293
Not Available
18
CONTROL ARM PIVOT SHAFT; FRONT; LOWER
5137701
9999999
Not Available

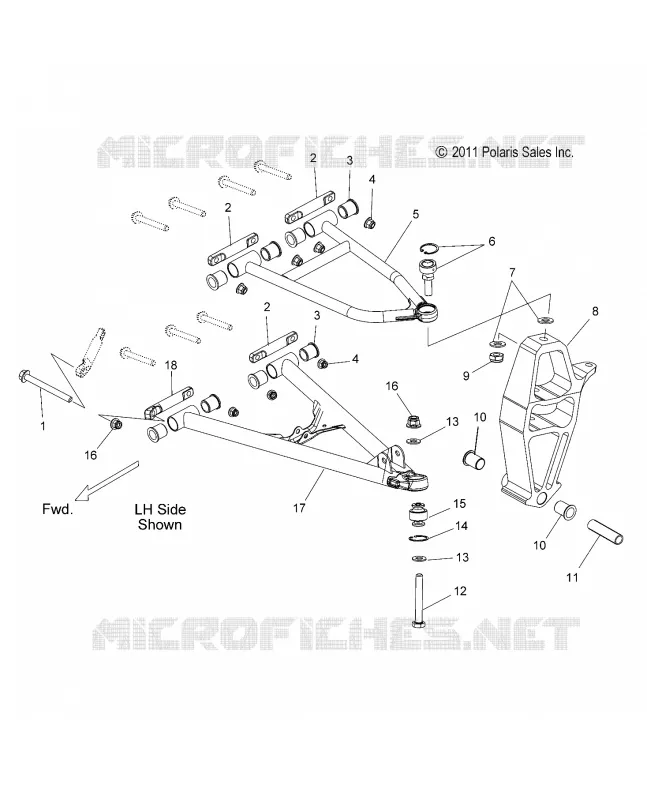

Find the detailed FRONT WISHBONES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
