1
Engine displacement
850
2
Year
2023
3
Trim
850 RMK KHAOS 155
4
Parts Catalog
SUSPENSION, CONTROL ARMS, and SPINDLE
5
Parts Diagram
Parts Catalog
SUSPENSION, IFS SHOCKS MNTG.
by
STEERING, SKI ASM.
SUSPENSION, CONTROL ARMS, and SPINDLE
1
1
1
2
2
2
3
3
3
3
4
4
5
5
6
15
8
8
8
8
9
9
9
10
10
10
10
10
10
10
10
10
10
11
11
12
13
14
14
14
14
15
16
17
18
19
20
1
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
2
PIVOT SHAFT
5140556
$52,49 Unit Price incl. VAT
3
WASHER 18.35 X 25 X 1.575
7556959
$1,56 Unit Price incl. VAT
4
RETAINING RING; 18 MM
7710786
$3,14 Unit Price incl. VAT
5
PIVOT BUSHING; SHORT
5454428
$7,34 Unit Price incl. VAT
6
RING-RET INT 1.125
7710642
$4,19 Unit Price incl. VAT
7
WRENCH-8MMX10MM OPEN END
Not Available
8
CONTROL ARM; UPPER; LEFT HAND
1824654309
Not Available
8
CTRL ARM UPR RIGHT SIDE GS BLK INTL ONLY
1824655067
Not Available
8
CONTROL ARM; UPPER; RIGHT SIDE
1824655309
Not Available
8
CONTROL ARM UPPER LEFT SIDE GLOSS GS BLK
1824654067
Not Available
9
WASHER 10.5 X 24 X 1.2446
7556545
$6,29 Unit Price incl. VAT
10
SPINDLE ASSEMBLY; RMK; FORGED; RIGHT
1824650
$419,99 Unit Price incl. VAT
10
ASM-SPINDLE RMK FORG RH GLBLK
1824650067
Not Available
10
ASM-SPINDLE RMK FORG RH IRED
1824650293
Not Available
10
ASM-SPINDLE RMK FORG LH GLBLK
1824649067
Not Available
10
SPINDLE LEFT SIDE
1824649
$419,99 Unit Price incl. VAT
10
ASM-SPINDLE RMK FORG LH LIFTLM
1824649801
Not Available
10
ASM-SPINDLE RMK FORG LH IRED
1824649293
Not Available
10
ASM-SPINDLE RMK FORG LH RDGRN
1824649887
Not Available
10
ASM-SPINDLE RMK FORG RH LIFTLM
1824650801
Not Available
10
ASM-SPINDLE RMK FORG RH RDGRN
1824650887
Not Available
11
NYLOC NUT
7547333
$3,14 Unit Price incl. VAT
12
SKI PIVOT BUSHING
5438460
$27,29 Unit Price incl. VAT
13
BUSHING 15.88 X 10.13 X 76.20
5136910
$13,64 Unit Price incl. VAT
14
RHT SIDE LWR CTRL ARM NARROW GLS GS BLK
1824653067
Not Available
14
LOWER LEFT HAND CONTROL ARM ASSEMBLY
1824652309
Not Available
14
LFT SIDE LWR CTRL ARM NARROW GLS GS BLK
1824652067
Not Available
14
LOWER RIGHT HAND CONTROL ARM
1824653309
Not Available
15
WRENCH-8MMX10MM OPEN END
Not Available
16
BOLT-M10X1.25X85MM HXFLG OLV D
7520152
$5,99 Unit Price incl. VAT
17
RING-RETAINING 1.25 ID HSNG
7710539
$4,19 Unit Price incl. VAT
18
CONTROL ARM PIVOT SHAFT; LOWER; FRONT
5140557
$52,49 Unit Price incl. VAT
19
HEX FLANGE SCREW; 10 MM X 1.5 MM X 95 MM
7518917
$9,44 Unit Price incl. VAT
20
NUT-M10X1.5 HFN NYLOC ZOD
7547423
$7,34 Unit Price incl. VAT

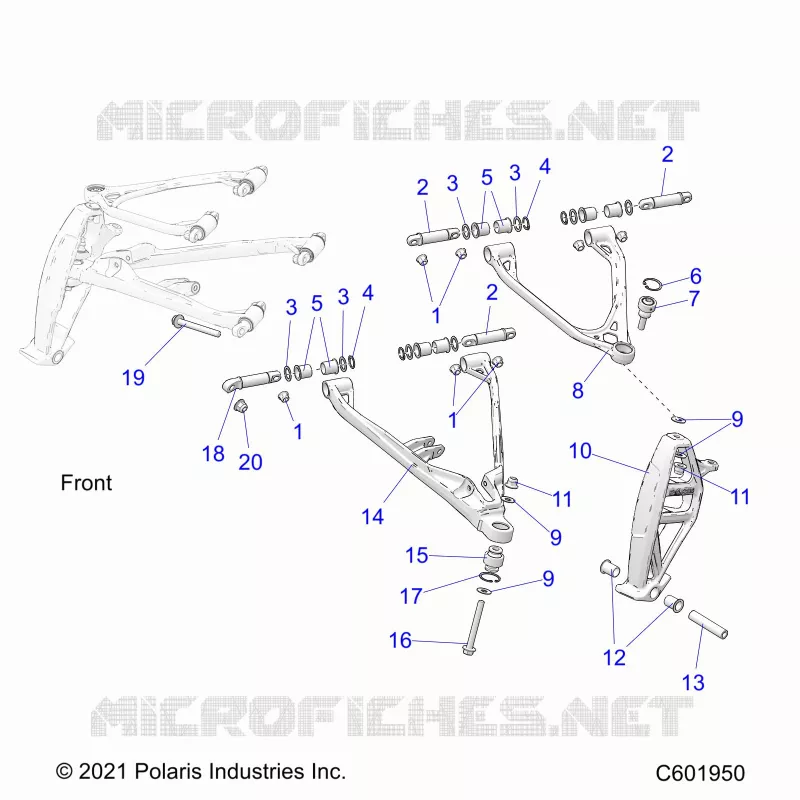

Find the detailed SUSPENSION, CONTROL ARMS, and SPINDLE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
