1
Engine displacement
300
2
Year
1995
3
Trim
300 4X4 - W958130
4
Parts Catalog
SWING ARM SHOCK 4X4 400L W959140 (4930183018B014)
5
Parts Diagram
Parts Catalog
STEERING POST ASSEMBLY 4X4 300 W958130 (4930183018B009)
by
CLUTCH COVER ASSEMBLY 4X4 300 W958130 (4930183018C001)
SWING ARM SHOCK 4X4 400L W959140 (4930183018B014)
1
2
3
4
5
6
7
8
9
9
10
10
11
11
12
12
13
14
15
15
16
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
1
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
2
SCREW
7515415
9999999
Not Available
3
RETAINER; SHOCK
5222118
5251753
$19,94 Unit Price incl. VAT
4
SPRING R.COMP.
7041204195
Not Available
5
ADAPTER SPRING SEAT
5630351
9999999
Not Available
6
SHOCK; REAR
7041448
$283,49 Unit Price incl. VAT
7
SPRING PROTECTOR SLEEVE
5431032
9999999
Not Available
8
CAM ADJUSTING SPRING
5630334
9999999
Not Available
9
BUSHING
5240952
9999999
Not Available
10
BUSHING
5431977
9999999
Not Available
11
WASHER
7555911
9999999
Not Available
12
NUT LOCK
7542602
9999999
Not Available
13
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
14
SHOULDER BOLT
7512701
9999999
Not Available
15
BOLT LOCK PLATE
5220958
9999999
Not Available
16
BUSHING SWINGARM EXTENDED
5210793
9999999
Not Available
17
BUSHING SWING ARM
5431972
5433417
$16,79 Unit Price incl. VAT
18
FITTING LUBE 45 DEG.(10)
7080586
9999999
Not Available
19
BOLT SHOULDER
7512702
9999999
Not Available
20
GUIDE CHAIN
5431310
9999999
Not Available
21
RIVET
7621433
$2,09 Unit Price incl. VAT
22
FLANGED SCREW
7515304
9999999
Not Available
23
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
24
BUSHING
5332828
9999999
Not Available
25
GUIDE CHAIN GUARD
5431968
9999999
Not Available
26
FLANGE NUT
7542321
$2,09 Unit Price incl. VAT
27
ARM ASMSWING
1580090
9999999
Not Available
28
WASHER
7555883
$7,34 Unit Price incl. VAT
29
NUT FLEXLOCK
7542503
9999999
Not Available
30
DECAL CHAIN FREE PLAY
7074752
Not Available
31
DECAL HITCH Substituted by 7078261
7072533
Not Available
32
KIT HITCH
2200472
9999999
Not Available
33
BOLT
7512576
9999999
Not Available
34
BOLT
7515438
$9,44 Unit Price incl. VAT
35
DECAL LUBRICATION
7074214
Not Available

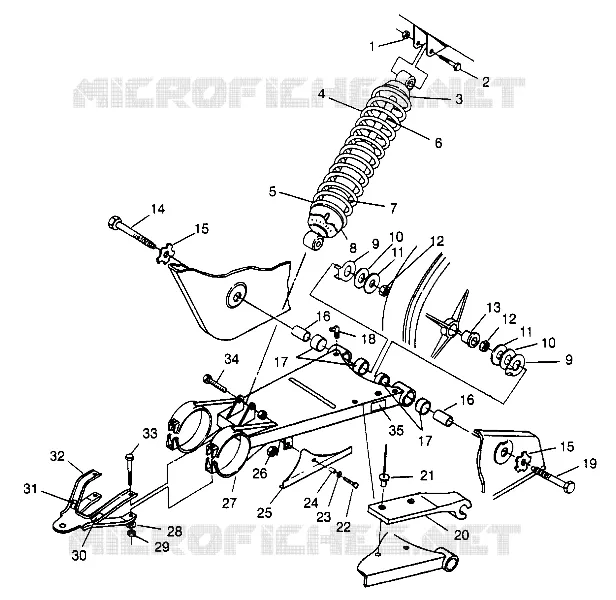

Find the detailed SWING ARM SHOCK 4X4 400L W959140 (4930183018B014) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
