SUSPENSION, FRONT SHOCK (LE) for POLARIS ARO 120/137 ALL OPTIONS

SUSPENSION, FRONT SHOCK

DRIVE TRAIN, CHAIN DRIVE

QS3 LE FOX SHOCK WITH SPRING

7044859

9999999

Not Available

BUMPER RUBBER

1500074

$10,49 Unit Price incl. VAT

BUMPER .498; 1.05L 008-03-009

1501102

$26,24 Unit Price incl. VAT

NUT LOCK

1500016

$23,09 Unit Price incl. VAT

SCREW #4 SS PAN 018-01-036

1501011

$25,19 Unit Price incl. VAT

SCREW-M5X.8X18MM SC 019-01-032

1501238

9999999

Not Available

DECAL-BASE VALVE 3P 024-00-316

1501105

$73,49 Unit Price incl. VAT

DECAL-BAND QS3 024-00-423

1501239

9999999

Not Available

LOGO-FOX/QS; RES. 024-00-448

1501240

9999999

Not Available

O-RING .103W-1.549ID

1500108

$15,74 Unit Price incl. VAT

O-RING

1500623

$12,59 Unit Price incl. VAT

RING-RETAINING WIRE

1500097

$9,44 Unit Price incl. VAT

RING RET. WIRE 038-01-022

1501015

$17,84 Unit Price incl. VAT

SPRING-8.0TLG 150# 039-29-404

1501237

9999999

Not Available

BODY CAP 90DEG. RES 206-56-204

1501241

9999999

Not Available

BODY 1.459X6.6TLG 207-41-066-3

1501200

$351,74 Unit Price incl. VAT

KNOB; DAMP ADJ; BLK 210-35-166

1501108

$36,74 Unit Price incl. VAT

EYELET 214-61-015

1501242

9999999

Not Available

RESERVOIR; BLK 227-41-035-4

1501109

$178,49 Unit Price incl. VAT

SHAFT-.498X7.4 230-13-074

1501243

9999999

Not Available

RING-PRELOAD 234-00-336-2

1501244

9999999

Not Available

RETAINER-SPRING 234-00-347-2

1501245

$52,49 Unit Price incl. VAT

GUIDE SPRING (234-27-000)

1500930

$83,99 Unit Price incl. VAT

SCREW AND O-RING ASSEMBLY

1500161

9999999

Not Available

ASM-FLOAT PISTON 805-00-083

1501246

9999999

Not Available

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

ASM BRNG CAP W/RING 812-03-035

1501113

$73,49 Unit Price incl. VAT

ASM BEARING FIST 812-03-036

1501114

$209,99 Unit Price incl. VAT

END CAP ASSEMBLY

1501027

$173,24 Unit Price incl. VAT

ASM DAMP ADJ. 815-04-085

1501186

$456,74 Unit Price incl. VAT

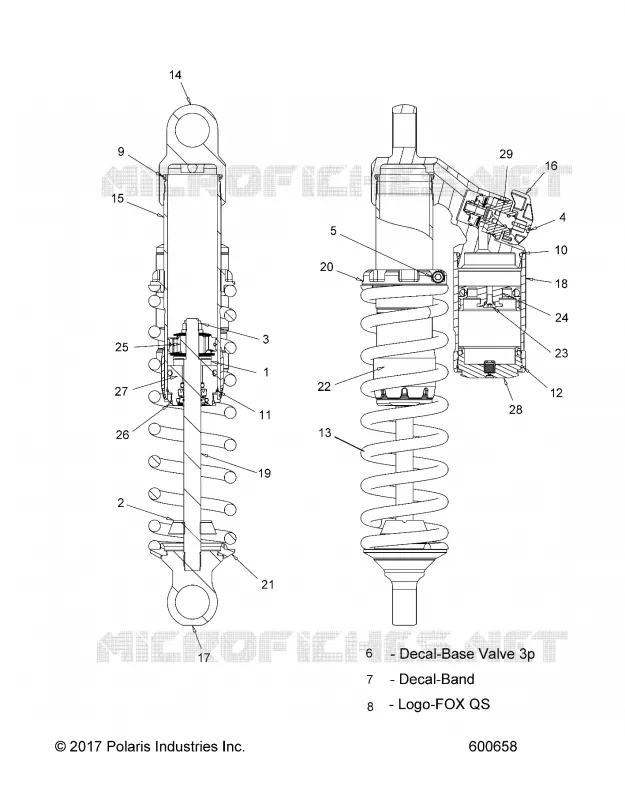

Find the detailed SUSPENSION, FRONT SHOCK (LE) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
