1
Engine displacement
700
2
Year
1996
3
Trim
INTL SL 700 - I964066
4
Parts Catalog
FUEL TANK SL 700 B964066 AND INTL. SL 700 I964066 (4935633563A009)
5
Parts Diagram
Parts Catalog
FRONT STORAGE COMPARTMENT SL 700 B964066 AND INTL. SL 700 I964066 (4935633563A008)
by
FUEL SYSTEM SL 700 B964066 AND INTL. SL 700 I964066 (4935633563A010)
FUEL TANK SL 700 B964066 AND INTL. SL 700 I964066 (4935633563A009)
1
2
3
4
4
5
5
6
6
7
7
8
9
9
10
11
12
13
14
15
16
17
18
19
19
19
19
1
2
3
4
4
5
5
6
6
7
7
8
9
9
10
11
12
13
14
15
16
17
18
19
19
19
19
1
BOLT SS.
7512045
9999999
Not Available
2
GASKET
5810858
9999999
Not Available
3
SENDER/PICKUP ASM FUEL SL
2410047
Not Available
4
BOLT; S.S.
7515365
9999999
Not Available
5
WASHER LOCK S.S.
7552610
9999999
Not Available
6
WASHER S.S.
7555834
9999999
Not Available
7
BUSHING FUEL TANK(10)
5333114
9999999
Not Available
8
TANK FUEL 9.8 GAL.
5431939
9999999
Not Available
9
HOSE CLAMP
7080439
$17,84 Unit Price incl. VAT
10
HOSE FILL FUEL
5410969
Not Available
11
INLET FUEL BLK(PWC)
5432613070
Not Available
12
CHAIN
7080440
9999999
Not Available
13
COUPLING
7080442
Not Available
14
SCREW
7511873
9999999
Not Available
15
CAP ASMFUEL
2653009
9999999
Not Available
16
GASKET FUEL CAP
5810871
9999999
Not Available
17
RIVET (50)
7621491
9999999
Not Available
18
WASHER; FLAT; S.S.
7555837
9999999
Not Available
19
SEAL FUEL INLET
5810931
9999999
Not Available
19
INLET ASM;FUEL CAP
2872029
9999999
Not Available

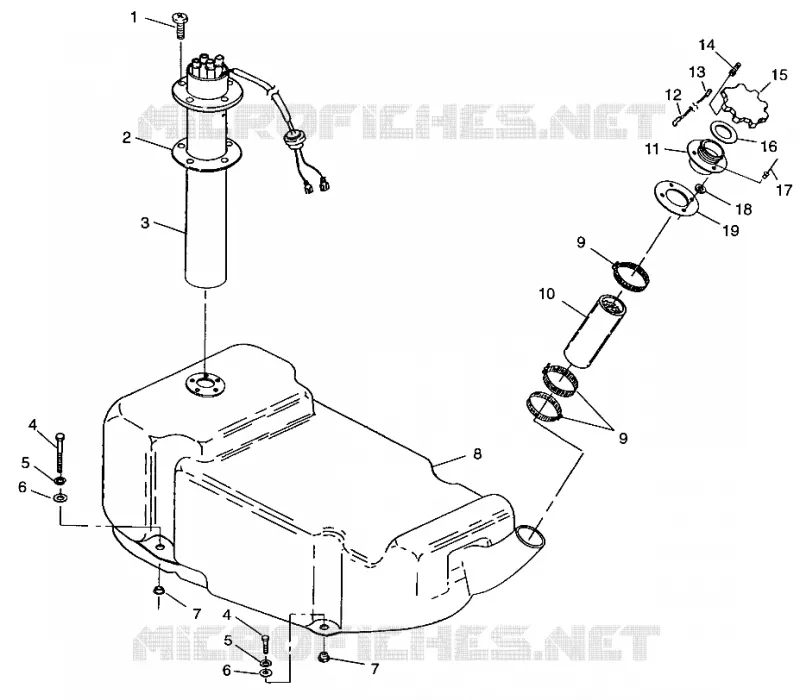

Find the detailed FUEL TANK SL 700 B964066 AND INTL. SL 700 I964066 (4935633563A009) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
