1
Engine displacement
500
2
Year
2000
3
Trim
500 SKS
4
Parts Catalog
CHAINCASE
5
Parts Diagram
Parts Catalog
REAR TORQUE ARM
by
EXHAUST SYSTEM
CHAINCASE
1
2
3
4
5
5
6
6
7
8
9
10
11
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
13
14
15
16
17
18
19
20
21
22
22
22
22
23
24
24
25
25
25
25
26
26
26
26
27
28
29
29
30
31
32
33
34
35
35
35
35
36
37
37
37
37
38
39
40
41
1
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
2
OIL SEAL
3610030
$36,74 Unit Price incl. VAT
3
SCREW
7515551
9999999
Not Available
4
NUT
7542404
$3,14 Unit Price incl. VAT
5
BALL BEARING #6205
3514309
3515910
$30,23 Unit Price incl. VAT
6
RETAINING RING
7718406
$11,54 Unit Price incl. VAT
7
WASHER
7555917
$4,19 Unit Price incl. VAT
8
SPKT 18T 3/4W 15 SPL HV PM
3221094
$68,24 Unit Price incl. VAT
9
WASHER SPRING
7571620
$13,64 Unit Price incl. VAT
10
NUT
7542811
7547202
$10,49 Unit Price incl. VAT
11
COTTER PIN
7661401
$1,56 Unit Price incl. VAT
12
WHEEL C/C IDLER
5630123
9999999
Not Available
12
BEARING
3553002
9999999
Not Available
12
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
12
THRUST WASHER
7558702
$3,14 Unit Price incl. VAT
12
CHAINCASE TIGHTENER
1332213
9999999
Not Available
12
PIN CHAIN TIGHTENER
7662210
9999999
Not Available
13
CHAINCASE GASKET; LONG
5411207
9999999
Not Available
14
CHAINCASE COVER REV MACHINED
5131454
9999999
Not Available
15
WASHER WROUGHT
7558403
$9,44 Unit Price incl. VAT
16
SCREW
7512492
$2,09 Unit Price incl. VAT
17
SCREW
7512242
$4,19 Unit Price incl. VAT
18
OIL SEAL
3610029
9999999
Not Available
19
SHAFT SHIFT BLK
1341221067
Not Available
20
PIN; DOWEL
7661826
9999999
Not Available
21
RING RETAINER
7710415
9999999
Not Available
22
KIT SHIFT FORK/SHAFT
2200363
9999999
Not Available
22
SHIFT FORK
5130805
9999999
Not Available
23
O-RING
5410589
9999999
Not Available
24
WASHER THRUST
7555877
$14,69 Unit Price incl. VAT
25
NEEDLE BEARING
3554508
9999999
Not Available
25
ASM-SPROCKET PINION 18T 3/4W
1341241
9999999
Not Available
26
NEEDLE BEARING
3554508
9999999
Not Available
26
PINION GEAR ASSEMBLY
1341075
9999999
Not Available
27
DRIVE CHAIN
3221112
$194,24 Unit Price incl. VAT
28
SHAFT PINION W/WRENCH FLATS
5131770
9999999
Not Available
29
SCREW
7512019
9999999
Not Available
30
BRACKET-CHAIN RETENTION7.05
5243162
9999999
Not Available
31
SCREW; CARRIAGE
7515477
9999999
Not Available
32
CHAINCASE VENTED
5131455
9999999
Not Available
33
PLUG
7052115
$10,49 Unit Price incl. VAT
34
WASHER
7555871
9999999
Not Available
35
ASM-SPROCKET 41T REV 3/4W PM
1341228
9999999
Not Available
35
BEARING NEEDLE
3555104
9999999
Not Available
36
COUPLER DRIVE
5130720
9999999
Not Available
37
GEAR ASMREVERSE
1341121
9999999
Not Available
37
SPRING COMPRESSION
7041225
9999999
Not Available
38
COMPRESSION SPRING
7041887
9999999
Not Available
39
RETAINER DRIVE COUPLER
5130727
9999999
Not Available
40
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
41
SCREW(10)
7517581
$3,14 Unit Price incl. VAT

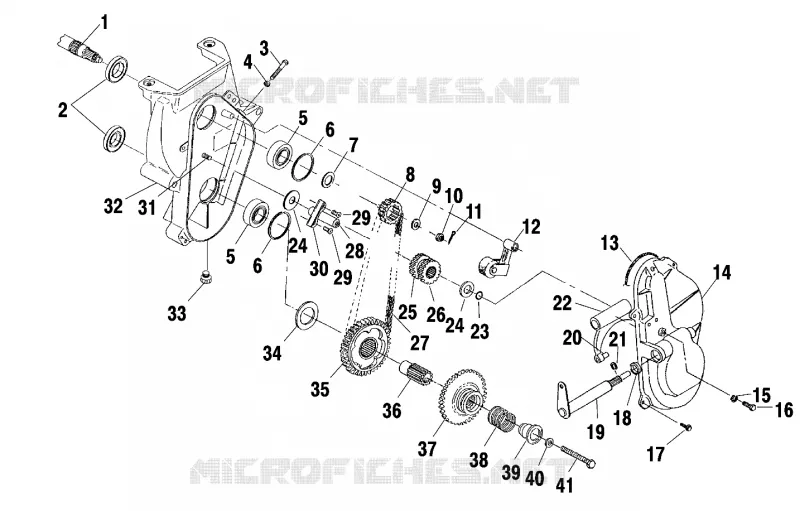

Find the detailed CHAINCASE POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
