BRAKES, VALVE SYSTEM for POLARIS SPORTSMAN XP 1000 TRACTOR from 2017

BRAKES, VALVE SYSTEM

1

BOLT-BANJO 10MMX1.25 W/BLEEDER

1911112

9999999

Not Available

2

BANJO DOUBLE BOLT; 10 MM X 1.25 MM

1911194

$41,99 Unit Price incl. VAT

3

SEAL

5413212

9999999

Not Available

4

LINE-BRK HBMC TO DIST 29 NYRC

1912659

Not Available

5

LINE-BRK REAR AUX 3WAY G

1913018

Not Available

6

LINE-BRK REAR SVC 3WAY G

1913019

Not Available

7

REDUCING BRAKE VALVE

1911109

$278,24 Unit Price incl. VAT

8

NYLOK NUT

7542122

$2,09 Unit Price incl. VAT

9

LINE-BRK DIST-P/VALVE 9 NPT 0B

1912658

Not Available

10

BRKT-JUNCTION BLOCK

5252667

$73,49 Unit Price incl. VAT

11

BOLT-M6X1.0X15 HXFLG TAP/R-OD

7518513

9999999

Not Available

12

BLT-HX 1/4-20UNCX1.50LG GR5ZN

7519682

9999999

Not Available

13

SWITCH

4014225

$167,99 Unit Price incl. VAT

14

BANJO BOLT; 10 MM X 1.25-6G

1910958

$14,69 Unit Price incl. VAT

15

SCR-1/4-20X2.50 SOC CP-Y

7519012

$6,29 Unit Price incl. VAT

16

LINE-BRK FL 29 30B 30B 297.5 G

1913016

Not Available

17

LINE-BRK M/C-D 36 45B 90SB 180

1912660

Not Available

18

BLOCK-DIST BRAKE LONG PISTON

1911185

1913923

$125,99 Unit Price incl. VAT

19

LINE-BRK FR 29 30B 0B 50 G

1913017

Not Available

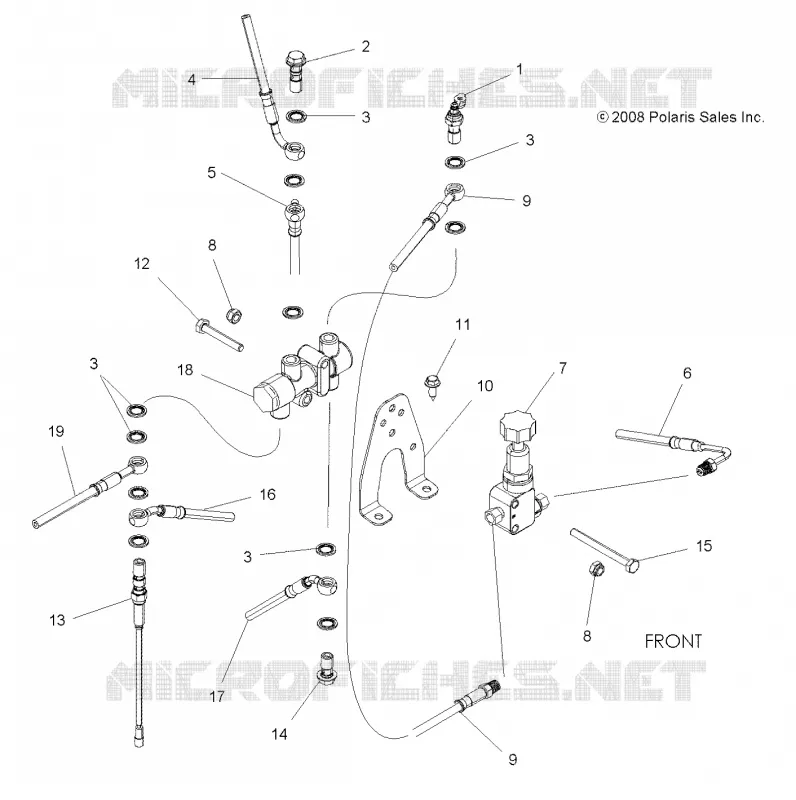

Find the detailed BRAKES, VALVE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
