DOORS MOUNTING for POLARIS BRUTUS/HD/HD PTO - D131D9JDJ/1L9JDJ/2M9JDJ from 2013

DOORS MOUNTING

1

HINGE WELD LOWER LEFT BLACK

1018772329

Not Available

1

HINGE WELD; LOWER; RIGHT; BLACK

1018773329

Not Available

2

WELD-HINGE UPPER RH BLK

1018775329

Not Available

2

HINGE WELD; UPPER; LEFT; BLACK

1018774329

Not Available

3

PLATE-HINGE

5256140

5256140-S

$26,24 Unit Price incl. VAT

4

BRKT-STRIKER ADJUST RH BLK

5256944067

Not Available

4

BRKT-STRIKER ADJUST LH BLK

5256943067

Not Available

5

WASHER 10.25 X 19.0 X 2.0 NY

5439712

$3,14 Unit Price incl. VAT

6

HEX FLANGE SCREW; 8 MM X 20 MM

7517838

$7,34 Unit Price incl. VAT

7

SCR-M6X1X16 TR/TX-M

7518936

$7,34 Unit Price incl. VAT

8

SCR-TXTH-M8X1.25X15 8.8ZOD P80

7519109

$3,14 Unit Price incl. VAT

9

STRIKER PIN

7519358

$68,24 Unit Price incl. VAT

10

NUT NYLOK 12 MMX 1.5 MM

7540000

$7,34 Unit Price incl. VAT

11

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

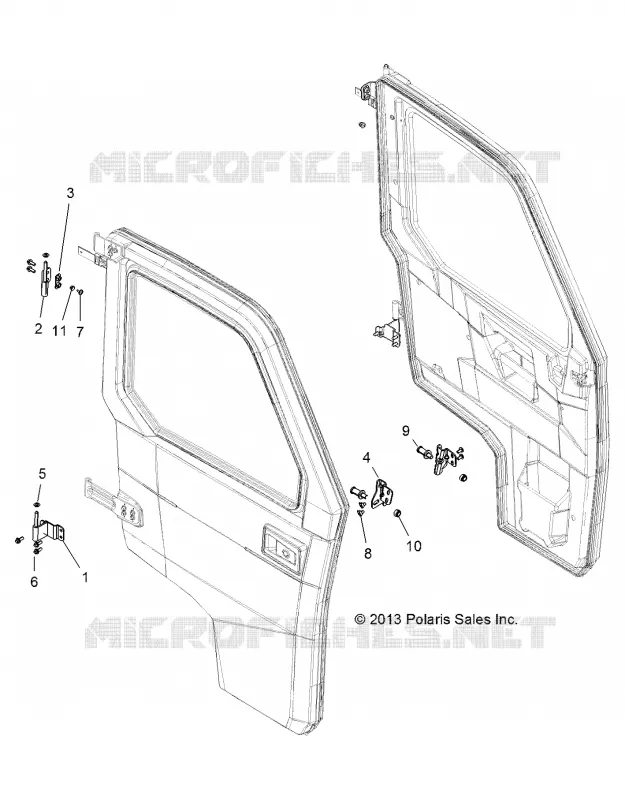

Find the detailed DOORS MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
