1
Engine displacement
850
2
Year
2015
3
Trim
SPORTSMAN 850 SP
4
Parts Catalog
WIRE HARNESS
5
Parts Diagram
Parts Catalog
BATTERY
by
HEADLIGHTS
WIRE HARNESS
1
1
1
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
14
1
16
17
18
19
1
THROTTLE POSITION SENSOR HARNESS KIT
2878498
$220,49 Unit Price incl. VAT
1
MAIN HARNESS W/ EPS
2412594
$1 658,99 Unit Price incl. VAT
1
FUSEBOX COVER
4015011
$115,49 Unit Price incl. VAT
1
ENGINE TEMP HARNESS KIT
2878496
$120,74 Unit Price incl. VAT
2
RELAY-SPST SERIES 303 SEALED
4011283
4016819
$68,24 Unit Price incl. VAT
3
FUSE PARK 20 AMP (10)
2434017
4012811
$15,74 Unit Price incl. VAT
4
FUSE 10 AMP
2434016
$10,49 Unit Price incl. VAT
5
DIODE-6AMP 1/4 3/16 TERM
2411035
$104,99 Unit Price incl. VAT
6
DIAGNOSTIC COVER WITH CLIP
4012170
4083556
$15,00 Unit Price incl. VAT
7
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
8
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
9
RESISTOR MODULE
4014055
2204890
$257,24 Unit Price incl. VAT
10
FASTNER-PUSH-ON CLIP;.250
7670125
$11,54 Unit Price incl. VAT
11
SCR-M6X1X14 PN/TX TRI-LOB
7518914
$6,29 Unit Price incl. VAT
11
BRKT-FUSE BLOCK
5257893
$19,94 Unit Price incl. VAT
12
FUSIBLE LINK KIT; 1.0 MM
2202670
$68,24 Unit Price incl. VAT
12
FUSIBLE LINK KIT; 0.8 MM
2202607
$73,49 Unit Price incl. VAT
13
LABEL-FUSE BOX
7180678
Not Available
14
CIRCUIT BREAKER; 20 AMP
4011372
$83,99 Unit Price incl. VAT
15
FUSEBOX COVER
4015011
$115,49 Unit Price incl. VAT
16
ROUTING CLIP
7081496
$9,44 Unit Price incl. VAT
17
MAIN FUSE; 30 AMP
2434015
$15,74 Unit Price incl. VAT
18
CONNECTOR-CAP EPS SIGNAL
4014236
$17,84 Unit Price incl. VAT
19
CONNECTOR-CAP EPS POWER
4014235
$14,69 Unit Price incl. VAT

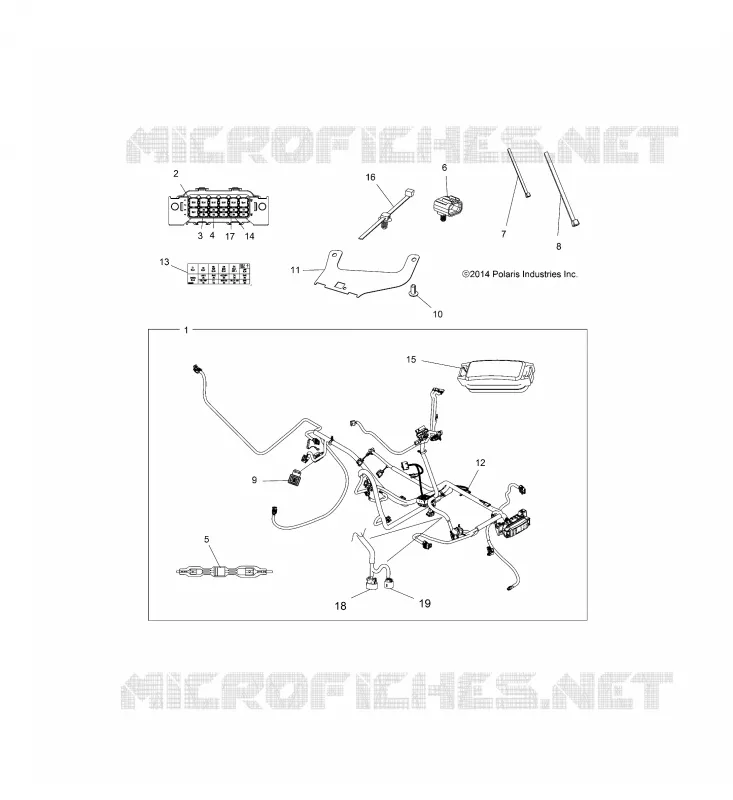

Find the detailed WIRE HARNESS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
