Engine displacement
850
2
Year
2020
3
Trim
800 RMK KHAOS 155 / 155 3"
4
Parts Catalog
ELECTRICAL, WIRE HARNESS
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, JACKSHAFT AND DRIVE SHAFT
by
REAR SUSPENSION
ELECTRICAL, WIRE HARNESS
1
MAIN WIRING HARNESS
2413772
$1 454,24 Unit Price incl. VAT
2
COVER-FUSEHOLDER
4012260
$19,94 Unit Price incl. VAT
2
FUSE-2AMP ATM BLADE STYLE MINI
4010752
$10,49 Unit Price incl. VAT
3
MICRO RELAY
4011998
$99,74 Unit Price incl. VAT
4
DIAGNOSTIC COVER WITH CLIP
4012170
4083556
$15,00 Unit Price incl. VAT
5
FILTER CAPACITOR
4011441
$194,24 Unit Price incl. VAT
6
CAPACITOR 22000 MICRO
4013412
$125,99 Unit Price incl. VAT
7
DIODE-6 AMP
2410000
$73,49 Unit Price incl. VAT
8
HARNESS COVER
2687630
$26,24 Unit Price incl. VAT
8
HARNESS COVER; LARGE
2687631
$47,24 Unit Price incl. VAT
9
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
9
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
10
ROUTING CLIP
7082073
$52,49 Unit Price incl. VAT
11
ROUTING CLIP
7081496
$9,44 Unit Price incl. VAT
12
HOOD HARNESS
2413200
$293,99 Unit Price incl. VAT
13
JUMPER-RMK CONSOLE SWITCHES
2412895
$167,99 Unit Price incl. VAT
14
HOOD HARNESS
2413401
$330,74 Unit Price incl. VAT
15
E-START HARNESS
2413091
$220,49 Unit Price incl. VAT
16
SEALED CIRCUT BREAKER; 20 AMP
2410881
$141,74 Unit Price incl. VAT
17
LED TAILLIGHT JUMPER; RMK
2413065
9999999
Not Available
18
ELECTRONIC OIL PUMP JUMPER
2412793
$104,99 Unit Price incl. VAT
19
HARNESS-USB MFD RZN
2412818
$99,74 Unit Price incl. VAT
20
SCR-TXTH-M5X0.8X25 T40 ZPB
7520280
$6,29 Unit Price incl. VAT
21
CLIP-EDGE 1-3MM THICKNESS
7082401
$13,64 Unit Price incl. VAT
22
FUSE 10 AMP
2434016
$10,49 Unit Price incl. VAT

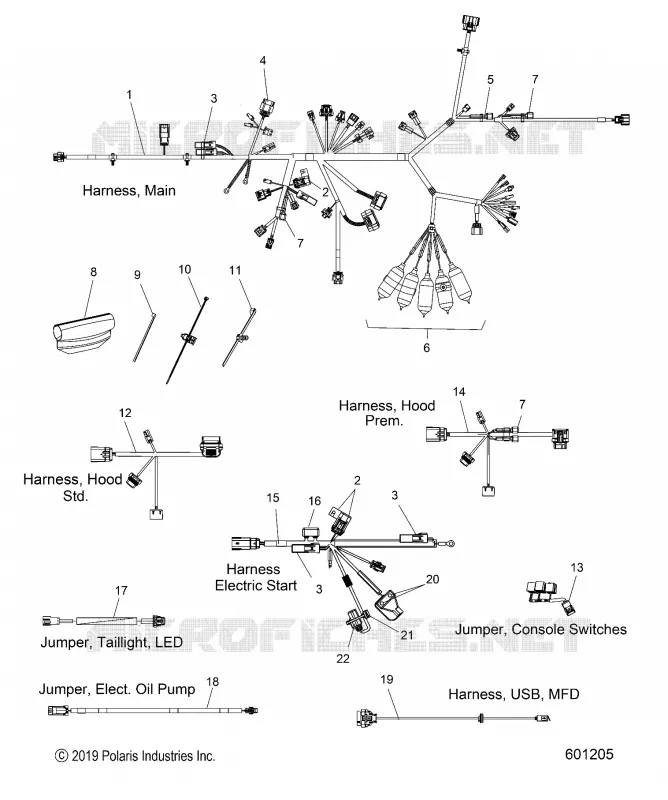

Find the detailed ELECTRICAL, WIRE HARNESS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
