FRONT SUSPENSION CONTROL ARMS for POLARIS RANGER 4X4 800 EFI ALL OPTIONS - R10TH76/TY76 from 2010

FRONT SUSPENSION SHOCK

FRONT SUSPENSION CONTROL ARMS

1

WELD-CTRL ARMUPRFRTRHBLK

1017352067

Not Available

2

WELD-CTRL ARMUPRFRTLHBLK

1017350067

Not Available

3

BOLT-M10X1.25X95 HXFLG-OLIVE D

7518560

7519043

$17,84 Unit Price incl. VAT

4

TUBE-PIVOT 73.96MM

5335448

5137591

$10,49 Unit Price incl. VAT

5

BUSHING-A-ARM-SHORT BLK

5434548

5439270

$4,19 Unit Price incl. VAT

6

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

7

WELD-CTRL ARMLWRFRTBLK

1017386067

Not Available

8

BALL-JOINT CHROME STUD

7081580

7061220

$141,74 Unit Price incl. VAT

9

EXTERNAL RETAINER RING

7710533

$4,19 Unit Price incl. VAT

10

CV SHIELD; FRONT; RIGHT; GLOSS BLACK

5437545070

Not Available

11

CV SHIELD; FRONT; LEFT; GLOSS BLACK

5437544070

Not Available

12

SCREW

7512084

$2,09 Unit Price incl. VAT

13

RIGHT HAND WHEEL BEARING CARRIER

5136949

9999999

Not Available

13

WHEEL BEARING CARRIER; LEFT

5136948

$262,49 Unit Price incl. VAT

14

SCREW

7516733

$11,54 Unit Price incl. VAT

15

NUT-M8X1.25C10 HX NYL DIN982 Z

7547405

$2,09 Unit Price incl. VAT

16

BOLT WITH PATCH; 10 MM X 1.25 MM X 25 MM

7518760

$17,84 Unit Price incl. VAT

17

RETAINER-BRAKE LINE;1"

5436594

5439192

$3,14 Unit Price incl. VAT

18

SCREW

7512024

$9,44 Unit Price incl. VAT

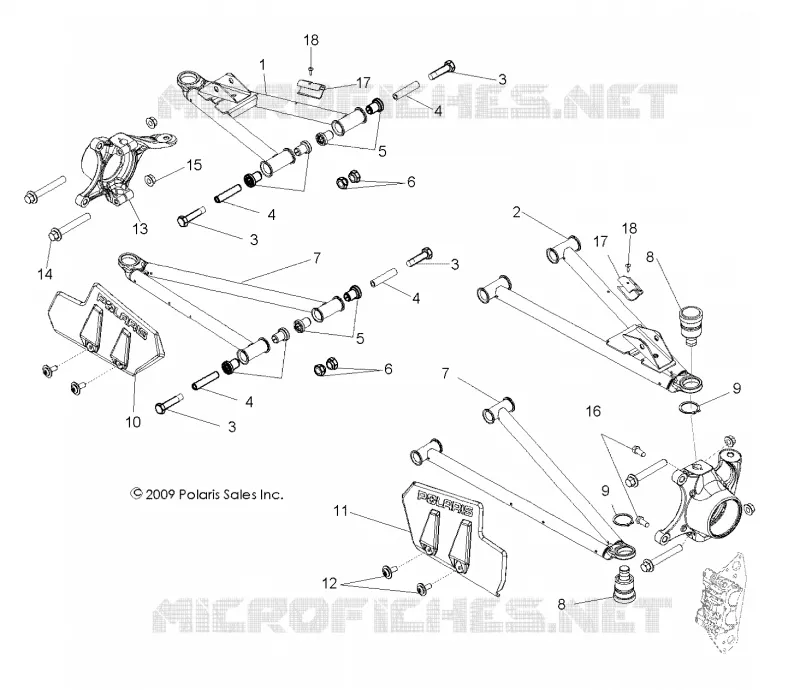

Find the detailed FRONT SUSPENSION CONTROL ARMS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
