1
Engine displacement
440
2
Year
2003
3
Trim
440 PRO X FAN COOLED
4
Parts Catalog
STEERING HANDLEBAR
5
Parts Diagram
Parts Catalog
STEERING
by
CHAINCASE
STEERING HANDLEBAR
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
2
3
4
5
6
7
8
8
9
10
11
11
12
13
13
14
14
15
16
16
16
17
17
17
18
18
18
19
20
21
22
23
24
25
26
27
28
29
30
30
30
31
32
33
34
34
35
36
36
37
37
38
38
39
1
RETAINING PIN
7661624
$23,09 Unit Price incl. VAT
2
WASHER
7555730
$7,34 Unit Price incl. VAT
3
SWITCH AUXILIARY SHUT-OFF
4110106
9999999
Not Available
4
WASHER (10)
7555727
9999999
Not Available
5
SCREW SET
7512465
$7,34 Unit Price incl. VAT
6
RETAINING RING
7710401
$7,34 Unit Price incl. VAT
7
WIRE HOLDER
5432261
$47,24 Unit Price incl. VAT
8
SCREW
7511848
$7,34 Unit Price incl. VAT
9
ADAPTER BLOCK
5430604
$26,24 Unit Price incl. VAT
10
THROTTLE/BRAKE; BLOCK
5431592
$73,49 Unit Price incl. VAT
11
THROTTLE LEVER; 35.5 MM
5432970
$52,49 Unit Price incl. VAT
11
HEATER LEVER ASSEMBLY; HI/LO; 35.5 MM
2010171
$157,49 Unit Price incl. VAT
12
RETAINING RING
7710503
$7,34 Unit Price incl. VAT
13
GRIP; HANDLEBAR
5432634
9999999
Not Available
14
PLUG
5431096
$3,66 Unit Price incl. VAT
15
HANDLERBAR BLK
5246007067
Not Available
16
BOLT
7512329
$7,34 Unit Price incl. VAT
17
WASHER
7555770
7558402
$1,56 Unit Price incl. VAT
18
HANDLE BAR CLAMP RETAINER
5631311
9999999
Not Available
19
ASM-HANDLEBAR COVER
2682949
2688210
$157,49 Unit Price incl. VAT
20
HANDLEBAR PAD
5812322
$83,99 Unit Price incl. VAT
21
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
22
HEATER GRIP ASSEMBLY; HI/LO
2460311
$115,49 Unit Price incl. VAT
23
DIMMER SWITCH
4110107
9999999
Not Available
24
Block Riser
5133287
Not Available
25
WELD-STEERING POSTBLK
1821348067
Not Available
26
BOLT CARRIAGE
7512331
$7,34 Unit Price incl. VAT
27
WELD-STEERING HOOPBLK
1014120067
Not Available
28
RIVET
7661637
$2,09 Unit Price incl. VAT
29
CARRIAGE BOLT
7512377
$9,44 Unit Price incl. VAT
30
FLANGE NUT
7542343
$9,44 Unit Price incl. VAT
31
BOLT CARRIAGE
7515383
9999999
Not Available
32
RIVET
7621433
$2,09 Unit Price incl. VAT
33
PLATE TIE ROD BOOT
5244470
9999999
Not Available
34
TIE ROD BOOT LEFT
5433532
9999999
Not Available
34
TIE ROD BOOT; RIGHT
5433533
9999999
Not Available
35
PALNUT
7547030
$9,44 Unit Price incl. VAT
36
ZERK FITTING
7080510
$10,49 Unit Price incl. VAT
37
STEERING POST BRACKET; ALUMINUM; .75 W
5132967
$68,24 Unit Price incl. VAT
38
BUSHING; .75
5434775
$11,54 Unit Price incl. VAT
39
BRKT-CONSOLE FRNT NECK FWD SRP
5247077
9999999
Not Available

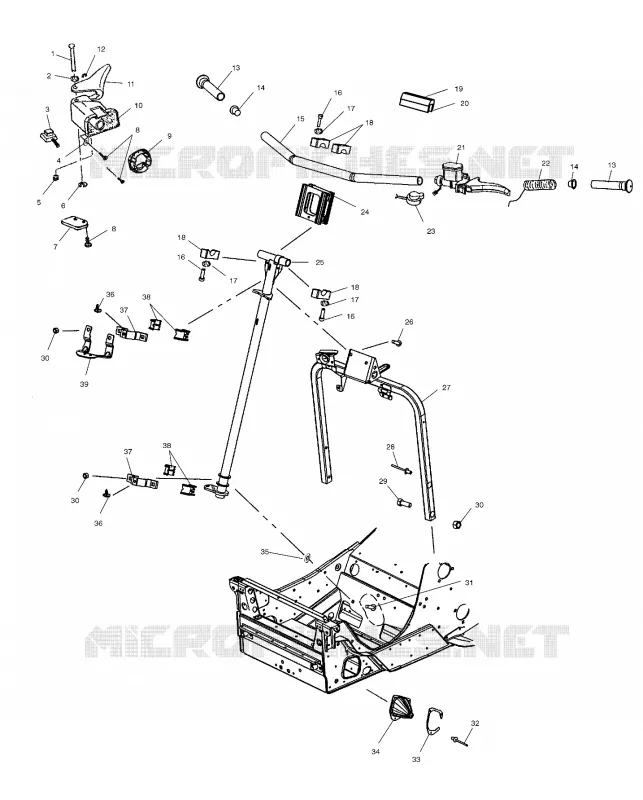

Find the detailed STEERING HANDLEBAR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
