Engine displacement
500
2
Year
2013
3
Trim
500 WIDETRAK LX
4
Parts Catalog
HOOD FOAM AND FOIL
5
Parts Diagram
Parts Catalog
HOOD ASM. AND WINDSHIELD
by
HOOD HINGE AND BRACE ASM.
HOOD FOAM AND FOIL
1
2
3
4
4
5
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
1
SCREEN RH HOOD BLK.
5242858067
Not Available
2
BOLT
7511864
9999999
Not Available
3
U TYPE CLIP
7670040
$7,34 Unit Price incl. VAT
4
SCREEN-HOOD FRT UPPER LH BLK
5243108067
Not Available
4
SCREEN-HOOD FRT UPPER RH BLK
5243109067
Not Available
5
SCREEN-HOOD FRT LOWER RH BLK
5243111067
Not Available
5
SCREEN-HOOD FRT LOWER LH BLK
5243110067
Not Available
6
FOIL RH HOOD
5811612
9999999
Not Available
7
FOIL-HOOD RH
5811721
9999999
Not Available
8
FOAM HOOD CTR.
5811609
$68,24 Unit Price incl. VAT
9
FOIL-HOOD TABREINF
5811703
9999999
Not Available
10
FOIL-HEAT SHIELD;HOOD;FR RH
5813462
9999999
Not Available
11
FOIL TAPE W/CUTOUT
5811621
9999999
Not Available
12
FOIL LVREDGE FRT1X6.25 3M#1430
5811750
9999999
Not Available
13
RIVET
7621334
$2,09 Unit Price incl. VAT
14
SCREEN LH HOOD BLK.
5242857067
Not Available
15
FOIL HINGE MNT RH 3M#1430
5811752
9999999
Not Available
16
FOIL TAPE
5811616
9999999
Not Available
17
FOIL TAPE LH LOWER 3M#427 PSA1
5811748
9999999
Not Available
18
FOIL HINGE MNT LH 3M#1430
5811751
9999999
Not Available
19
FOIL TAPE LOUVER LH UP 3M#427
5811749
9999999
Not Available
20
FOAM HOOD LH
5811607
9999999
Not Available
21
FOIL-HEAT SHIELD;HOOD;FR
5813835
9999999
Not Available
22
FOIL-HEAT SHIELD;HOOD;RR
5813836
9999999
Not Available

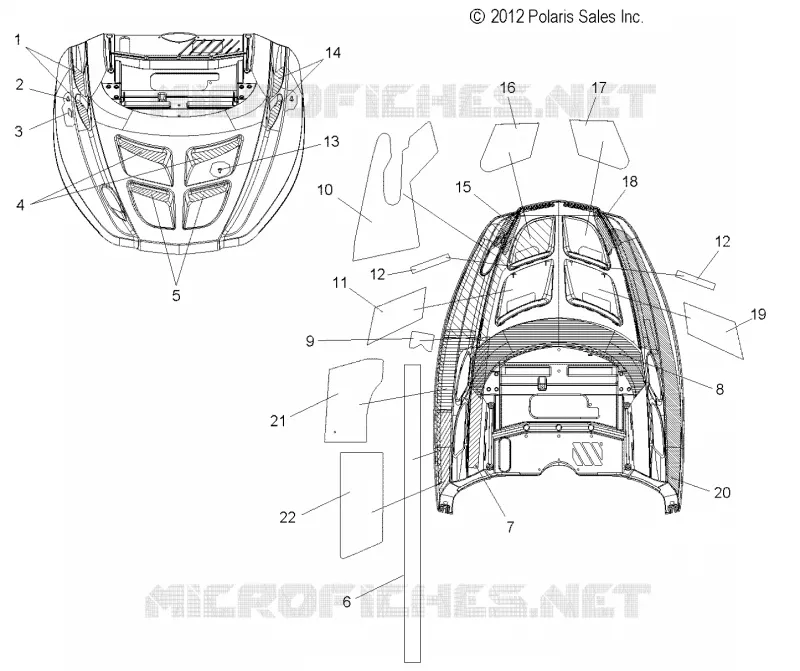

Find the detailed HOOD FOAM AND FOIL POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
