Parts Catalog
DRIVE TRAIN, REAR GEARCASE INTERNALS
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, PRIMARY CLUTCH
by
COOLING BYPASS
DRIVE TRAIN, REAR GEARCASE INTERNALS
1
2
3
4
5
6
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
19
20
21
1
DRIVE ASSEMBLY; REAR; 113.4 MM
1332802
$936,06 Unit Price incl. VAT
2
SOCKET HEAD W/ MAG PLUG 18 MM X 1.5 MM
3234756
$57,74 Unit Price incl. VAT
3
HEX HEAD FLANGE SCREW 8MMX1.25MMX30MM
3234898
$17,84 Unit Price incl. VAT
4
NUT-HEX M16 X 2.0
3234776
$19,94 Unit Price incl. VAT
5
LOCKING WASHER; 17 X 30
3234777
$78,74 Unit Price incl. VAT
6
PIN; DOWEL; 6 X 20
3234330
$13,64 Unit Price incl. VAT
7
RING-RETAINING BEVELED INTERNA
3234158
$41,99 Unit Price incl. VAT
8
SHIM; 3.1 X 2.5
3233581
$73,49 Unit Price incl. VAT
9
NEEDLE BEARING; .75 X 1 X .625
3234799
$27,29 Unit Price incl. VAT
10
BALL BEARING
3233714
9999999
Not Available
11
BALL BEARING
3233268
$88,19 Unit Price incl. VAT
12
MAIN CASE; MACHINED
3234926
$440,99 Unit Price incl. VAT
13
KIT-CASE LH
3234937
$249,89 Unit Price incl. VAT
14
STRAIGHT BEVEL PINION SHAFT; 10 TOOTH
3234798
$309,74 Unit Price incl. VAT
15
GEAR-37T STRAIGHT BEVEL
3234792
2204462
$2 383,49 Unit Price incl. VAT
16
TUBE-VENT 90-1/4 HOSE
3234230
$19,94 Unit Price incl. VAT
17
COUPLER
3234782
$188,99 Unit Price incl. VAT
18
PLUG; M18 X 1.5
3234755
$52,49 Unit Price incl. VAT
19
VITON TRIPLE LIP SEAL; 40 X 70 X 7
3235052
$57,74 Unit Price incl. VAT
20
SEAL-TRIPLE LIP;VITON;40X80X10
3235051
$57,74 Unit Price incl. VAT
21
O-RING 2-023 NITRIL
3234785
$17,84 Unit Price incl. VAT

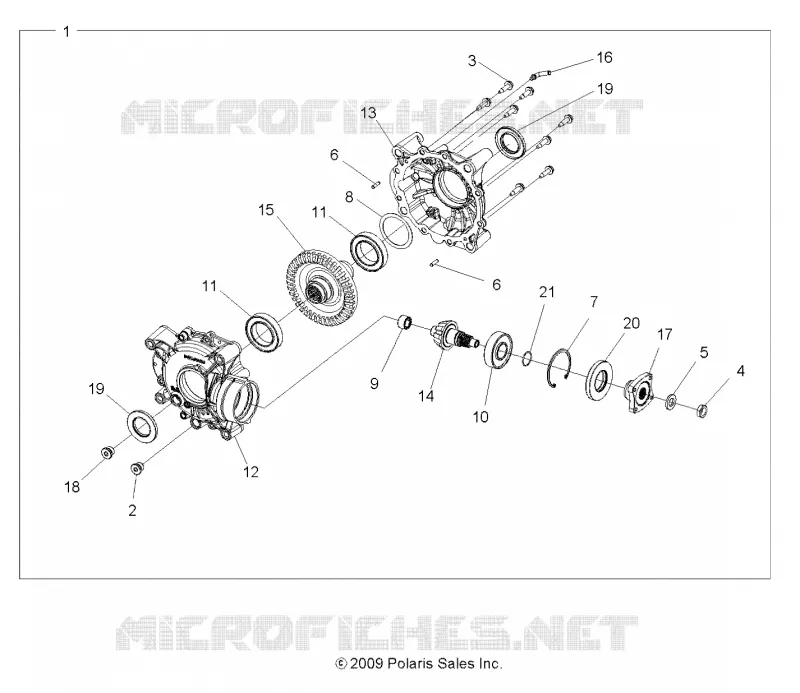

Find the detailed DRIVE TRAIN, REAR GEARCASE INTERNALS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
