BRAKE LINES for POLARIS SPORTSMAN 550 - A11ZN55AA/AQ/AZ from 2011

BRAKE LINES

1

SEAL

5413212

9999999

Not Available

2

BANJO BOLT; 10 MM X 1.00

1910499

$10,49 Unit Price incl. VAT

3

LINE-BRAKE POD TO J/B

1911393

$152,24 Unit Price incl. VAT

4

CROSS FITTING

7052372

9999999

Not Available

5

NON DIFFERENTIAL BRAKE LINE; REAR

1911561

$246,74 Unit Price incl. VAT

6

BRKT-JUNCTION BLOCK

5252667

$73,49 Unit Price incl. VAT

7

CABLE TIE

7080138

$5,24 Unit Price incl. VAT

8

BRAKE LINE CALIPER; FRONT

1911383

$141,74 Unit Price incl. VAT

9

SCREW

7512024

$9,44 Unit Price incl. VAT

10

LINE-BRAKE JB TO FT MC

1911384

9999999

Not Available

11

BANJO BOLT; 10 MM X 1.25-6G

1910958

$14,69 Unit Price incl. VAT

12

HOSE CLAMP

7080683

$4,19 Unit Price incl. VAT

13

SCREW

7512084

$2,09 Unit Price incl. VAT

14

BOLT-M6X1.0X15 HXFLG TAP/R-OD

7518513

9999999

Not Available

15

CLAMP HOSE NYLON (10)

7080693

$10,49 Unit Price incl. VAT

16

POP RIVET

7621330

$2,09 Unit Price incl. VAT

17

CLIP ROUTING .472 B.D. HINGED

7670116

$10,49 Unit Price incl. VAT

18

BRAKE LINE; FRONT; RIGHT

1911687

$120,74 Unit Price incl. VAT

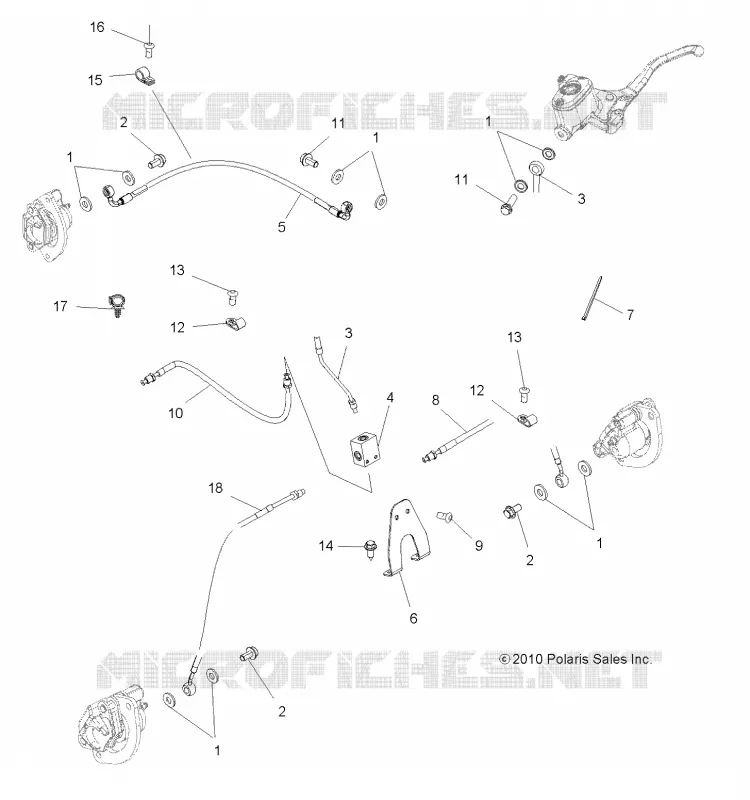

Find the detailed BRAKE LINES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
