FUEL SYSTEM for POLARIS 500 CLASSIC from 2006

FUEL SYSTEM

1

CABLE TIE-RELEASABLE;5 1/2

7080804

$6,29 Unit Price incl. VAT

2

GASKET

5810512

9999999

Not Available

2

ASM.CAPFUELBLK

2511195070

Not Available

3

FITTING 90 DEG 1/8

7052095

$9,44 Unit Price incl. VAT

4

FUEL LINE; 3 MM X 7 MM

8450061600

Not Available

5

NYLOK NUT

7542122

$2,09 Unit Price incl. VAT

6

FLAT WASHER

7555960

$7,34 Unit Price incl. VAT

7

NUT SPEED

7670021

$10,49 Unit Price incl. VAT

8

CARRIAGE BOLT

7512193

$4,19 Unit Price incl. VAT

9

SEAL FOAM

5810947

$8,39 Unit Price incl. VAT

10

FUEL PICKUP WITH FILTER; 105 MICRON

7052301

$26,24 Unit Price incl. VAT

11

COMPRESSION RING

7080402

$3,14 Unit Price incl. VAT

12

FUEL LINE ESTER

8350019160

Not Available

13

GROMMET-3/4 VITON

5435941

$11,54 Unit Price incl. VAT

14

FITTING-1/4 TO 1/4STRAIGHT

7052375

9999999

Not Available

15

FUEL TANK ASSEMBLY WITH SEND

2520465

9999999

Not Available

16

SENDER-FUEL 12 GAL LH

2410352

9999999

Not Available

17

PKG-HDWR SENDING UNIT

2410456

9999999

Not Available

18

HOSE CLAMP

7080307

$1,56 Unit Price incl. VAT

19

FUEL VALVE PLASTIC 90 DEGREES 1/4 HOSE

7052249

$52,49 Unit Price incl. VAT

20

FUEL LINE ETHER RED 5/16# Substituted by 8350017-160

8350017600

Not Available

21

HOSE CLAMP

7080003

$2,09 Unit Price incl. VAT

22

FUEL LINE; 600 CM

8450040600

Not Available

23

SCREW W/WASHER

3081286

2209285

$74,54 Unit Price incl. VAT

23

ASM-FUEL PUMP

3086998

9999999

Not Available

23

DIAPHRAGM GASKET ASSEMBLY

3084222

2209285

$74,54 Unit Price incl. VAT

24

LINE; FUEL;600CM;SVC

8350018600

Not Available

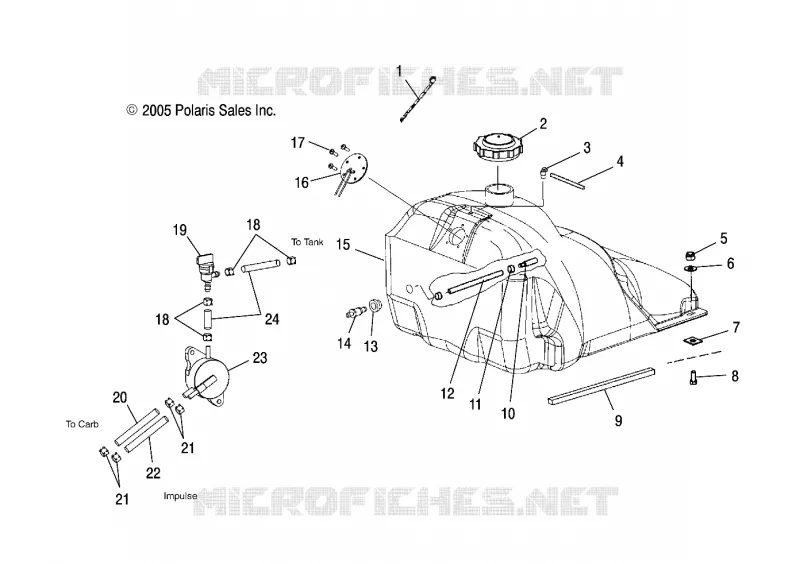

Find the detailed FUEL SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
