SUSPENSION, RAIL BEAM LH/RH for POLARIS 850 MATRYX SWITCHBACK ASSAULT 146 from 2022

SUSPENSION, RAIL BEAM LH/RH

1

NUT-M6X1.0 FLG-NYLOC-OLIVE D

7547339

$2,09 Unit Price incl. VAT

2

WASHER

7556064

$9,44 Unit Price incl. VAT

3

RAIL TIP CAP

5452441

$26,24 Unit Price incl. VAT

4

SCR-TXTH-M6X1.0X25 8.8 ZPB

7520133

$6,29 Unit Price incl. VAT

5

SCREW

7512025

$9,44 Unit Price incl. VAT

6

WASHER FLAT

7555783

$7,34 Unit Price incl. VAT

8

BUMPER-JOUNCE FTA PROG

5522253

$16,79 Unit Price incl. VAT

9

HEX FLANGE SCREW; 6 MM X 1.0 MM X 70 MM

7519908

7521331-70

$1,56 Unit Price incl. VAT

10

WSHR-M6 OFFSET 2.01 ZOD

7556799

$6,29 Unit Price incl. VAT

11

BEARING; .7874 X 1.6535 X .4724

3515142

$34,64 Unit Price incl. VAT

11

RETAINING RING

7710444

$15,74 Unit Price incl. VAT

11

ASM-WHEEL SPOKED 5.62

1590632

$66,66 Unit Price incl. VAT

12

SCREW

7517510

$9,44 Unit Price incl. VAT

13

CL8.8 OLV-D

7518906

$6,29 Unit Price incl. VAT

14

WHEEL MOUNT BLOCK

5633278

$47,24 Unit Price incl. VAT

15

SCR-TXTH-M8X1.25X20 8.8 BLK

7519997

$7,34 Unit Price incl. VAT

16

SCREW

7515199

$2,09 Unit Price incl. VAT

17

BUMPER

5432166

$9,44 Unit Price incl. VAT

18

ASM-RAIL 146 PREM SVC RH STGRY

1544457804

Not Available

18

ASM-RAIL 146 PREM SVC RH LMSQ

1544457630

Not Available

18

ASM-RAIL 146PREMSVC RH PLUMCZY

1544457784

Not Available

18

ASM-RAIL 146 PREM SVC RH BLK

1544457067

Not Available

18

ASM-RAIL 146 PREM SVC RH ISKYB

1544457737

Not Available

18

ASM-RAIL 146 PREM SVC RH RED

1544457293

Not Available

18

ASM-RAIL 146 PREM SVC RH ORGB

1544457647

Not Available

18

ASM-RAIL 146 PREM SVC LH STGRY

1544456804

Not Available

18

ASM-RAIL 146 PREM SVC LH BLK

1544456067

Not Available

18

ASM-RAIL 146 PREM SVC LH LMSQ

1544456630

Not Available

18

ASM-RAIL 146 PREM SVC LH WHT

1544456599

Not Available

18

ASM-RAIL 146 PREM SVC LH ORGB

1544456647

Not Available

18

ASM-RAIL 146PREMSVC LH PLUMCZY

1544456784

Not Available

18

ASM-RAIL 146 PREM SVC RH WHT

1544457599

Not Available

18

ASM-RAIL 146 PREM SVC LH ISKYB

1544456737

Not Available

18

ASM-RAIL 146 PREM SVC LH RED

1544456293

Not Available

19

RIVET

7621501

$4,19 Unit Price incl. VAT

20

BLOCK-IDLER BOLT ADJ METRIC

5136570

$62,99 Unit Price incl. VAT

21

SPACER-IDLER ADJ ALUM

5141837

$13,64 Unit Price incl. VAT

22

HEX NUT; 10 MM X 1.5 MM

7547707

$7,34 Unit Price incl. VAT

23

HEX SCREW; 10 MM X 1.5 MM X 100 MM

7520083

$23,09 Unit Price incl. VAT

24

PLATE-RAIL REINF BLK ANODIZED

5143395

$293,99 Unit Price incl. VAT

25

SPRING ROLLER SHAFT

5136687

$19,94 Unit Price incl. VAT

26

SPRING SQUARE GUIDE

5434334

$62,99 Unit Price incl. VAT

27

PIN-CLEVIS 3/16X1 1/4

7661123

$7,34 Unit Price incl. VAT

28

HITCH PIN

7661644

$4,19 Unit Price incl. VAT

29

HI-FAX-146 LWT BLK

5522358070

Not Available

30

SCR-M6X1.0X20 TR/TX/TAP ZOD

7518976

$6,29 Unit Price incl. VAT

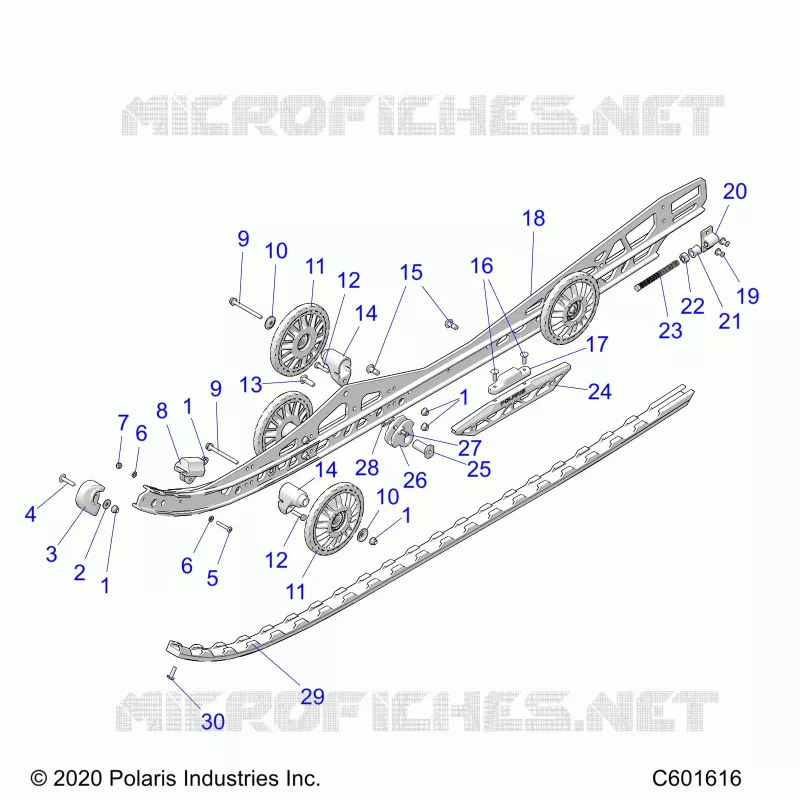

Find the detailed SUSPENSION, RAIL BEAM LH/RH POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
