1
Engine displacement
325
2
Year
2001
3
Trim
MAGNUM 325 4X4 - A01CD32AA
4
Parts Catalog
CYLINDER
5
Parts Diagram
Parts Catalog
CRANKCASE
by
MAGNETO
CYLINDER
1
COVER-VALVE
3086413
9999999
Not Available
2
O-RING
3086414
9999999
Not Available
3
BOLT FLANGE
3086412
9999999
Not Available
4
FLANGE BOLT
3084874
9999999
Not Available
5
PLUG CYLINDER BLOCK
3086417
9999999
Not Available
6
COVER-BREATHER
3087033
9999999
Not Available
7
PIPE ASSEMBLY
3085850
9999999
Not Available
8
BREATHER COVER GASKET
3087034
9999999
Not Available
9
INTAKE VALVE SEAL
3084858
9999999
Not Available
10
GUIDE VALVE
3084994
9999999
Not Available
11
FIN DAMPER A
3084798
9999999
Not Available
12
EXHAUST VALVE SEAL
3084859
9999999
Not Available
13
ASM. BOLT AND WASHER
3086418
9999999
Not Available
14
ASM-CYLINDER HEAD
3087118
9999999
Not Available
15
EXHAUST GASKET
3086421
9999999
Not Available
16
STUD
3085326
9999999
Not Available
17
LOCK WASHER
3080530
9999999
Not Available
18
NUT
3080285
9999999
Not Available
19
PIN STRAIGHT
3084838
9999999
Not Available
20
CYLINDER GASKET
3086407
9999999
Not Available
21
CYLINDER UNIT
3086883
9999999
Not Available
22
GASKET-HEAD
3086415
9999999
Not Available
23
CAM GASKET
3086416
9999999
Not Available
24
ADAPTER ASSEMBLY
3087050
9999999
Not Available
25
ASM-ADAPTER BAND
3083166
7082340
$36,74 Unit Price incl. VAT
26
PAN HEAD SCREW
3081497
9999999
Not Available
27
BOLT (SOCKET HEAD)
3086786
9999999
Not Available
28
BOLT FLANGE
3086419
9999999
Not Available

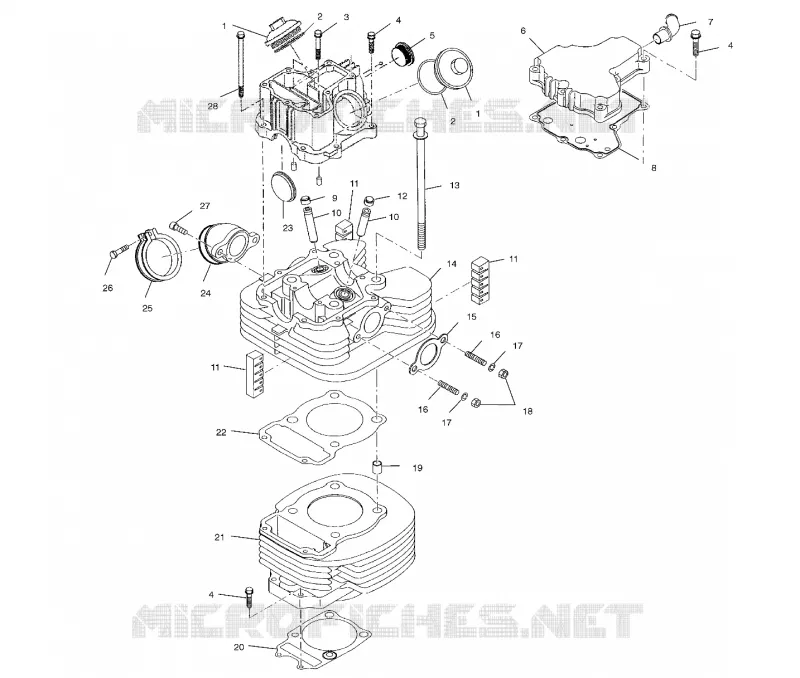

Find the detailed CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
