ELECTRICAL BOX for POLARIS SLX PRO 785

BOLT; S.S.

7512042

9999999

Not Available

NUT; SS.

7547036

9999999

Not Available

WASHER; LOCK

7552615

9999999

Not Available

WASHER; FLAT; S.S.

7555837

9999999

Not Available

WASHER RUBBER(10)

7555870

9999999

Not Available

PLATE BTM E-BOX

5211761

9999999

Not Available

HARNESS WIRE GND EL.BOX

2460621

Not Available

HARNESS TRIM 2HOLE GROMMET

2460635

Not Available

HARNESS 10 WIRE

2460616

Not Available

CABLE BATT/SOL RED

4010126

9999999

Not Available

CABLE GND BATT/ENG.

4010125

9999999

Not Available

CLIP IGNITION CABLE

7080471

9999999

Not Available

CAP GROMMET

5432502

9999999

Not Available

GROMMET 1 HOLE LARGE

5411213

9999999

Not Available

REG.RECT/CUTOFF LR31

4060192

9999999

Not Available

TERM.BOARD ASMMFD

2434014

9999999

Not Available

CONDUIT CONVOL. Substituted by 4010051-15

401005105

Not Available

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

BRKT RETAINER CDI

1060137

9999999

Not Available

PLATE TOP E-BOX

5211760

9999999

Not Available

CKT.BREAKER 15A.(WATER.)

2434011

9999999

Not Available

LATCH

5432503

9999999

Not Available

PIN LATCH (10)

5333544

9999999

Not Available

HOOK; D;SST/SS;(10)

5224472

9999999

Not Available

STRAP RUBBER

5410853

9999999

Not Available

CRADLE ELECT PWC AGR

5241845

9999999

Not Available

BOLT

7515127

9999999

Not Available

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

SEAL

5432569

9999999

Not Available

BRKT COIL/SOL.(780ENG)

5242471

9999999

Not Available

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

INSUL.CABLE SOL.

5410346

9999999

Not Available

BOOT THREADED

7080461

9999999

Not Available

O-RING

5411491

9999999

Not Available

DECAL WARN HI.VOLT.

7073713

9999999

Not Available

BOX ASM;ELEC(PLASTIC);780

2620121

9999999

Not Available

DECAL ELECT.BOX RESET

7073734

Not Available

PLATE STATOR 1 HOLE

5432574

9999999

Not Available

WASHER

7555836

9999999

Not Available

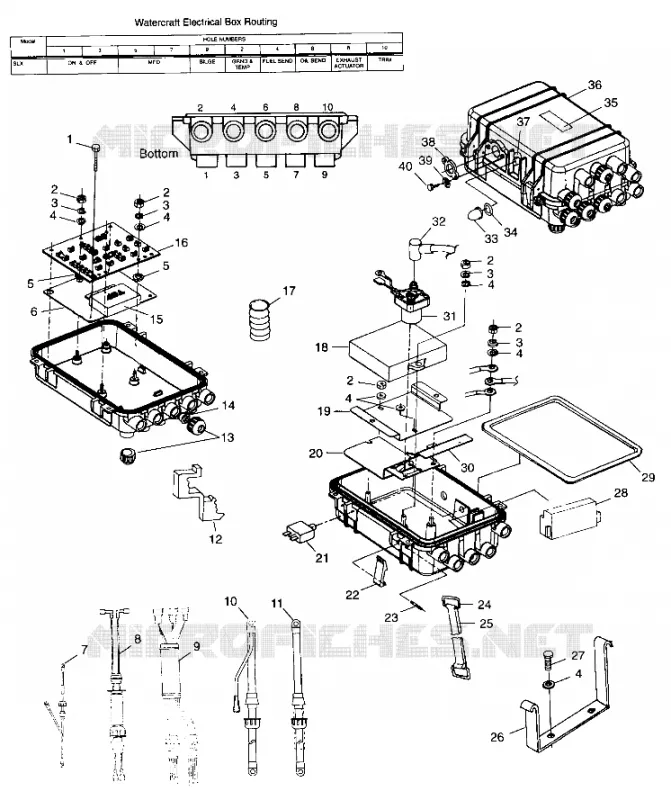

Find the detailed ELECTRICAL BOX POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
