1
Engine displacement
800
2
Year
2018
3
Trim
800 AXYS SKS 155
4
Parts Catalog
ENGINE, WATER PUMP
5
Parts Diagram
Parts Catalog
ENGINE, MOUNTING
by
FUEL SYSTEM, RAIL, LINES AND THROTTLE BODY
ENGINE, WATER PUMP
11
12
13
1
SCREW M6 X 1.0; L-20MM
7516822
$4,19 Unit Price incl. VAT
2
ASM-COVER WP IF 800
1205426
$136,49 Unit Price incl. VAT
3
WATER PUMP GASKET COVER
5811601
$36,74 Unit Price incl. VAT
4
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
5
WATER PUMP IMPELLER
5436648
$27,29 Unit Price incl. VAT
6
WASHER-FLAT 10.26X14.07X1.165
7556584
$6,29 Unit Price incl. VAT
7
SEAL
3610067
3610433
$37,79 Unit Price incl. VAT
8
TYPE S SEAL
5411197
$41,99 Unit Price incl. VAT
9
THRUST WASHER
7555977
$13,64 Unit Price incl. VAT
10
SHAFT-GEAR WP DRIVE
5138488
$52,49 Unit Price incl. VAT
11
O-RING .801 X .941 X .070
5412942
$1,56 Unit Price incl. VAT
12
PUMP SHAFT BEARING BLIND
5138487
$47,24 Unit Price incl. VAT
13
RING-RETAINING 1.023 INTERNAL
7710718
$4,19 Unit Price incl. VAT

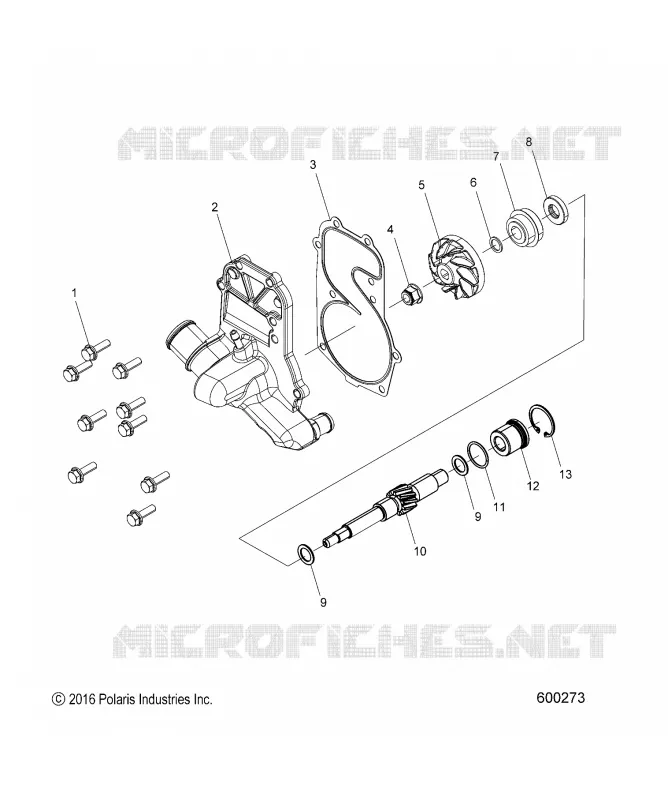

Find the detailed ENGINE, WATER PUMP POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
