STEERING for POLARIS RZR 4/EPS RGE - R11XH76AW/AZ/XY76AA from 2011

REFERENCES, TOOL KIT AND OWNERS MANUALS

REAR SUSPENSION SHOCK MOUNTING

STEERING

1

BOOT SEAL ROD END 10MM

5411920

5412929

$20,99 Unit Price incl. VAT

2

ROD END 10MM 1/2-20LH 42 DEG

7061054

7061138

$104,99 Unit Price incl. VAT

3

NUT JAM; LEFT

7547028

$4,19 Unit Price incl. VAT

4

SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]

*******

Not Available

5

BOOT CLAMP; SMALL

7080978

$4,19 Unit Price incl. VAT

6

PASSENGER SIDE BOOT RACK

5412013

$104,99 Unit Price incl. VAT

7

BOOT CLAMP; LARGE

7080979

$10,49 Unit Price incl. VAT

8

SHOULDER BOLT; 8-16 MM; 6 MM X 1.0 MM

7518786

$4,19 Unit Price incl. VAT

9

HEX FLANGE SCREW 10 MM X 1.50 MM X 35 MM

7518644

$9,44 Unit Price incl. VAT

10

WASHER-NEOPREME 28 OD X 20 ID

7556482

$7,34 Unit Price incl. VAT

11

WASHER-30MM ODX 21MM ID X 1.5

7556483

$7,34 Unit Price incl. VAT

12

STEERING SHAFT SPACER

5252796

$9,44 Unit Price incl. VAT

13

STEERING BEARING

3514686

$16,79 Unit Price incl. VAT

14

STEERING WHEEL; 14 IN.

1823623

$246,74 Unit Price incl. VAT

15

NUT-M16X2-6G

7547188

$10,49 Unit Price incl. VAT

16

STEERING WHEEL CAP

5436536

$62,99 Unit Price incl. VAT

17

ASM-PIVOT TUBE;BLK

1017485

9999999

Not Available

18

FLAT WASHER

7558402

$1,56 Unit Price incl. VAT

19

STEERING SHAFT; UPPER/LOWER

1823681

9999999

Not Available

20

SCR-5/16-18X3.75 HXCP;GR5;LK-Y

7518895

$7,34 Unit Price incl. VAT

21

NUT-NY INS;M10X1.5;HEX;ZINC;YW

7547385

$2,09 Unit Price incl. VAT

22

NYLOK NUT

7546703

$2,09 Unit Price incl. VAT

23

DRIVER SIDE BOOT RACK

5412012

$115,49 Unit Price incl. VAT

24

BOLT 10 MM X 1.25 MM X 65 MM

7517909

$10,49 Unit Price incl. VAT

25

WASHER

7555919

$7,34 Unit Price incl. VAT

26

NUT-M10X1.25-HX-LOCK-Y

7547177

7548155

$1,56 Unit Price incl. VAT

27

COTTER PIN

7661203

$2,09 Unit Price incl. VAT

28

STEERING GEAR BOX ASSEMBLY

1823443

9999999

Not Available

29

BOLT

7512325

$4,19 Unit Price incl. VAT

30

SHOULDER BOLT

7517607

$10,49 Unit Price incl. VAT

31

NYLOK NUT

7542451

$2,09 Unit Price incl. VAT

32

PEDAL PIVOT BUSHING

5431107

$16,79 Unit Price incl. VAT

33

ASM-SHOCK OIL LOCKING

7043523

7043810

$173,24 Unit Price incl. VAT

34

EPS MOUNT WELD; MATTE BLACK

1017716458

Not Available

35

EPS STEERING SHAFT; UPPER

1823749

9999999

Not Available

36

STEERING SHAFT; LOWER

1823782

$299,24 Unit Price incl. VAT

37

ASM-POWER STEERING;RZR

2411617

9999999

Not Available

38

BOLT CAP; 8 MM X 1.25 MM

7517924

$8,39 Unit Price incl. VAT

39

HEX FLANGE BOLT OLIVE 10MMX1.25MMX20MM

7518558

$7,34 Unit Price incl. VAT

40

SPRING LOCK WASHER

7552901

$2,09 Unit Price incl. VAT

41

BOLT 5/16-18X3/4

7512371

$9,44 Unit Price incl. VAT

42

BOLT

7515382

$4,19 Unit Price incl. VAT

43

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

44

COVER-EPS

5438626

$68,24 Unit Price incl. VAT

45

SCR-TXTH-M6X1.0X15 ZPB TAP

7519092

$2,09 Unit Price incl. VAT

46

SCREW

7516827

$12,59 Unit Price incl. VAT

47

NYLOCK FLANGE NUT; 6 MM

7547274

7548027

$3,14 Unit Price incl. VAT

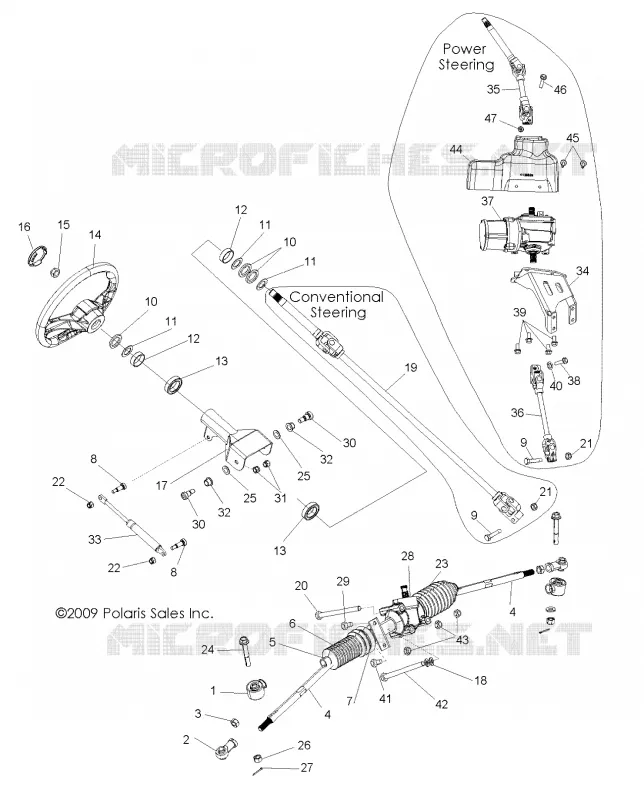

Find the detailed STEERING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
