1
Engine displacement
750
2
Year
2008
3
Trim
750 FS / FST IQ TOURING
4
Parts Catalog
DRIVE TRAIN, DRIVE SHAFT AND JACKSHAFT
5
Parts Diagram
Parts Catalog
MIDDLE FAIRING
by
DRIVE TRAIN, SECONDARY CLUTCH
DRIVE TRAIN, DRIVE SHAFT AND JACKSHAFT
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
BOLT
7515369
$9,44 Unit Price incl. VAT
2
WASHER FLAT
7555701
$7,34 Unit Price incl. VAT
3
WASHER FLAT(10)
7555734
$1,56 Unit Price incl. VAT
4
WASHER
7555957
$9,44 Unit Price incl. VAT
5
INPUT SHAFT SPACER; .875
5135611
$15,74 Unit Price incl. VAT
6
DRIVE BELT
3211121
$192,14 Unit Price incl. VAT
7
WASHER
7555917
$4,19 Unit Price incl. VAT
7
WASHER
7555864
$4,19 Unit Price incl. VAT
7
BUSHING
7556509
$3,14 Unit Price incl. VAT
8
FLANGETTE
5222751
9999999
Not Available
9
BEARING; 1 MM X 52 MM X 15 MM
3514617
$54,59 Unit Price incl. VAT
10
RIVET
7661637
$2,09 Unit Price incl. VAT
11
MNT-JACKSHAFT BRGLHMACH
5134106
9999999
Not Available
12
ASM-JACKSHAFT W/BRG
1332453
9999999
Not Available
13
RING-RTNG 7200-150
7710555
9999999
Not Available
14
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
15
FLANGETTE ASSEMBLY WITH SCREWS
1014299
$68,24 Unit Price incl. VAT
16
SCREW
7516733
$11,54 Unit Price incl. VAT
17
BOLT-CARR 5/16-18X5/8 GR5-Y
7518049
$7,34 Unit Price incl. VAT
18
PALNUT
7547030
$9,44 Unit Price incl. VAT
19
DRIVE PICKUP HOUSING
5246960
$47,24 Unit Price incl. VAT
20
SCR-5/16-18-1 UNC 2A TRX-P30-Y
7518444
$7,34 Unit Price incl. VAT
21
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
22
SPEED PICKUP SENSOR
2410376
9999999
Not Available
23
BOLT
7512232
$2,09 Unit Price incl. VAT
24
JACKSHAFT GASKET; BLACK
5811095
9999999
Not Available
25
WHEEL-PICKUP SPEEDO 9 TOOTH
5240013
5136619
$62,99 Unit Price incl. VAT
26
BEARING-25MM SPH OD LUBE
3514448
3514617
$54,59 Unit Price incl. VAT
27
ASM-DRVSHAFT TUBULAR 9T REINF
1590412
9999999
Not Available

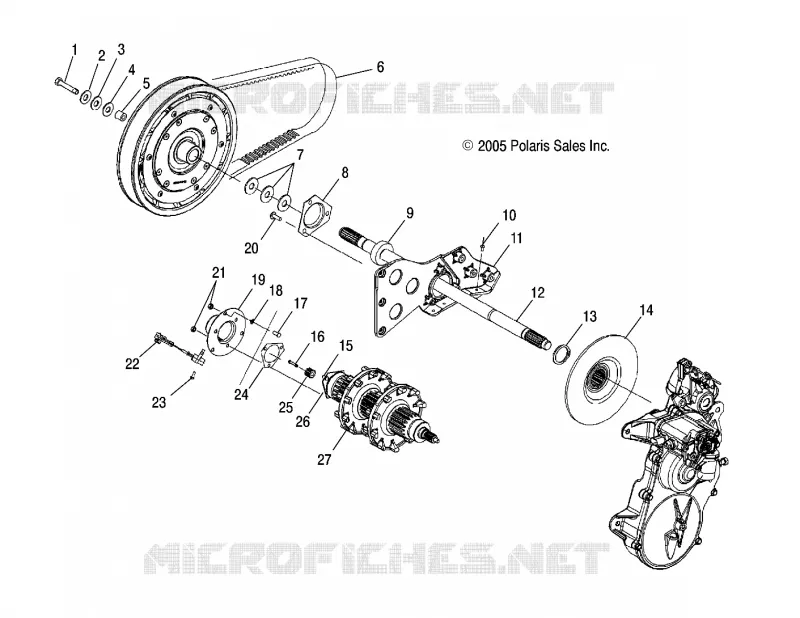

Find the detailed DRIVE TRAIN, DRIVE SHAFT AND JACKSHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
