ENGINE, ENGINE AND TRANSMISSION MOUNTING for POLARIS RZR 570 - Z14VH57AD/6EAI/6EAW from 2014

CYLINDER HEAD, CAMS AND VALVES

ENGINE, ENGINE AND TRANSMISSION MOUNTING

1

TRANS WELD; INNER; LEFT

1018420

1025909

$120,74 Unit Price incl. VAT

2

TRANSMISSION WELD; INNER; RIGHT

1018421

1025910

$120,74 Unit Price incl. VAT

3

BRKT-COUPLER TRANS OUTER

5255321

$19,94 Unit Price incl. VAT

4

ENGINE MOUNT WELD; BLACK

1018912329

Not Available

5

DRIVELINE ISOLATOR MOUNT

1332955

$136,49 Unit Price incl. VAT

6

FUEL LINE; 1/4 ID

84500031525

Not Available

7

SCR-M10X1.5X50 8.8 HX/FL ZOD

7518971

$12,59 Unit Price incl. VAT

8

WASHER

7556153

$3,66 Unit Price incl. VAT

9

BOLT-M10X1.25X70 HXFLG-OLIVE D

7518561

$13,64 Unit Price incl. VAT

10

HEX FLANGE SCREW 10 MM X 1.25 MM X 40 MM

7519332

$10,49 Unit Price incl. VAT

11

HEAD BOLT 10MM X 1.50MM X60MM

7518826

$9,44 Unit Price incl. VAT

12

HEX HEAD SCREW; 8 MM X 1.25 MM X 45 MM

7519097

$3,14 Unit Price incl. VAT

13

PALNUT

7547030

$9,44 Unit Price incl. VAT

14

HOSE CLAMP

7080307

$1,56 Unit Price incl. VAT

15

NYLOC OLIVE NUT; 8 MM X 1.25 MM

7547332

$7,34 Unit Price incl. VAT

16

NYLOC NUT

7547333

$3,14 Unit Price incl. VAT

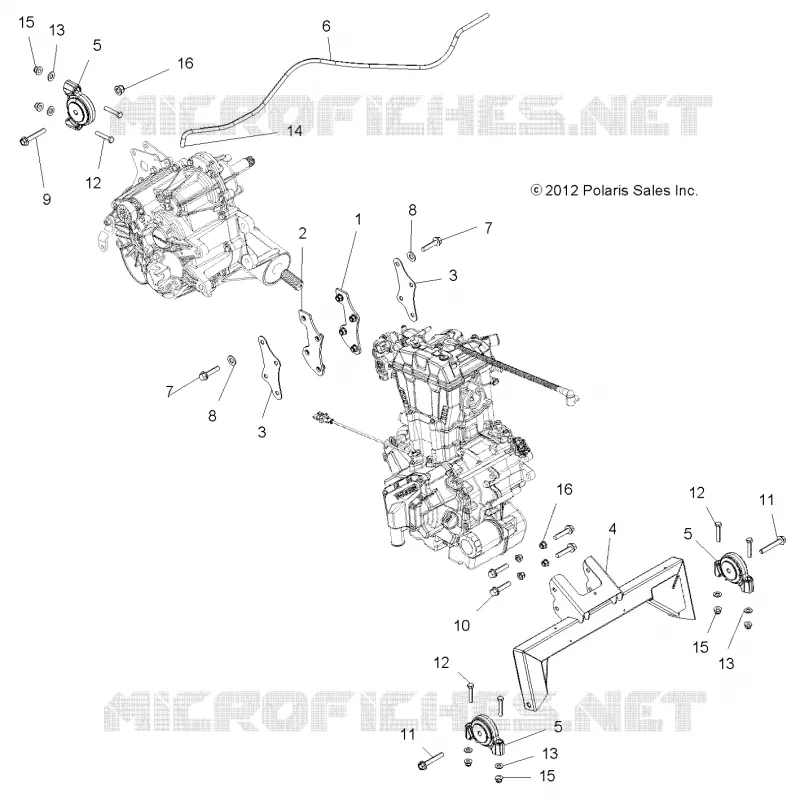

Find the detailed ENGINE, ENGINE AND TRANSMISSION MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
