Engine displacement
700
2
Year
2002
3
Trim
SPORTSMAN 700 - A02CH68AA/AB/AC/CA/CB
4
Parts Catalog
CRANKSHAFT AND PISTON
5
Parts Diagram
Parts Catalog
TRANSMISSION MOUNTING
by
CYLINDER AND CYLINDER HEAD
CRANKSHAFT AND PISTON
1
2
2
2
2
2
2
2
2
5
6
7
8
9
10
11
11
12
13
1
PISTON KIT
2202107
$256,19 Unit Price incl. VAT
2
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
PISTON RINGS KIT; 80 MM
2202127
9999999
Not Available
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
WOODRUFF KEY
7721117
$47,24 Unit Price incl. VAT
6
Gear Crankshaft
5133220
Not Available
7
Asm. Crankshaft (W/O Gear)
1201966
Not Available
8
ASM-CRSHFT 68MM TWN ATV W/GEAR
1202222
9999999
Not Available
9
BALANCE SHAFT
5132396
9999999
Not Available
10
WOODRUFF KEY #404
7721131
$41,99 Unit Price incl. VAT
11
ASM-BAL SHAFT GEAR HELIX COMBO
1202269
9999999
Not Available
11
ASM-BAL SHAFT GEAR HELIX COMBO
1202261
9999999
Not Available
12
WASHER RETAINING 8.5X28X3
7555982
7558715
$26,24 Unit Price incl. VAT
13
HEX FLANGE SCREW; 8 MM X 1.25 MM X 45 MM
7517865
$20,99 Unit Price incl. VAT

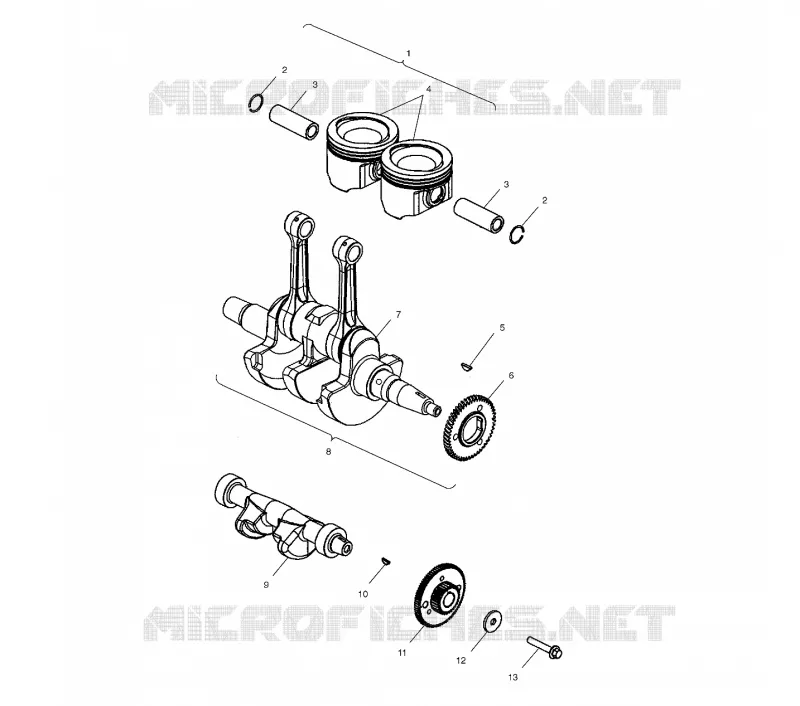

Find the detailed CRANKSHAFT AND PISTON POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
