IGNITION SYSTEM for POLARIS SPORTSMAN XP EPS 850 INTL - A10ZX85FL/FF from 2010

SWITCHES, SENSORS, ECU AND CONTROL MODULES

IGNITION SYSTEM

1

TUBING-NYLON 5MMX144MM BLK

8360077

8360209

$27,29 Unit Price incl. VAT

2

FLYWHEEL-450W 165MM W/ENCODRNG

4011428

2205188

$902,99 Unit Price incl. VAT

3

COUPLER-WATERPUMP FLYWHEEL

5136307

$52,49 Unit Price incl. VAT

4

BOLT-WATERPUMP DRIVE LH

5136389

9999999

Not Available

5

SCR-M6X1.0X30 HX/SOC/CP-Y/D

7518544

7527860

$5,24 Unit Price incl. VAT

6

STATOR-450W W/GROMMET

4011427

9999999

Not Available

7

SCR-M6X1.0X10 SHCS

7518765

7527859

$9,44 Unit Price incl. VAT

8

RETAINER-STATOR WIRE

5250018

9999999

Not Available

9

GASKET-STATOR COVER

5813267

5813680

$73,49 Unit Price incl. VAT

10

O-RING

5411564

9999999

Not Available

11

PLUG HOLE TMNG 3/4-16 NYLON

5433820

9999999

Not Available

12

HEX FLANGE SCREW; 6 MM X 20 MM

7518576

$6,29 Unit Price incl. VAT

13

SPARKPLUG MAG WIRE; 356 MM

4012343

$115,49 Unit Price incl. VAT

14

SPARKPLUG WIRE; 406 MM; PTO

4012344

$120,74 Unit Price incl. VAT

15

COIL-EFI

4010425

2876049

$451,49 Unit Price incl. VAT

16

SCR-10X1.00 TX PN HI/LO-Y

7518922

$6,29 Unit Price incl. VAT

17

FITTING-6MM BRASS

7052463

$17,84 Unit Price incl. VAT

18

12MM SPARK PLUG

3022225

$10,80 Unit Price incl. VAT

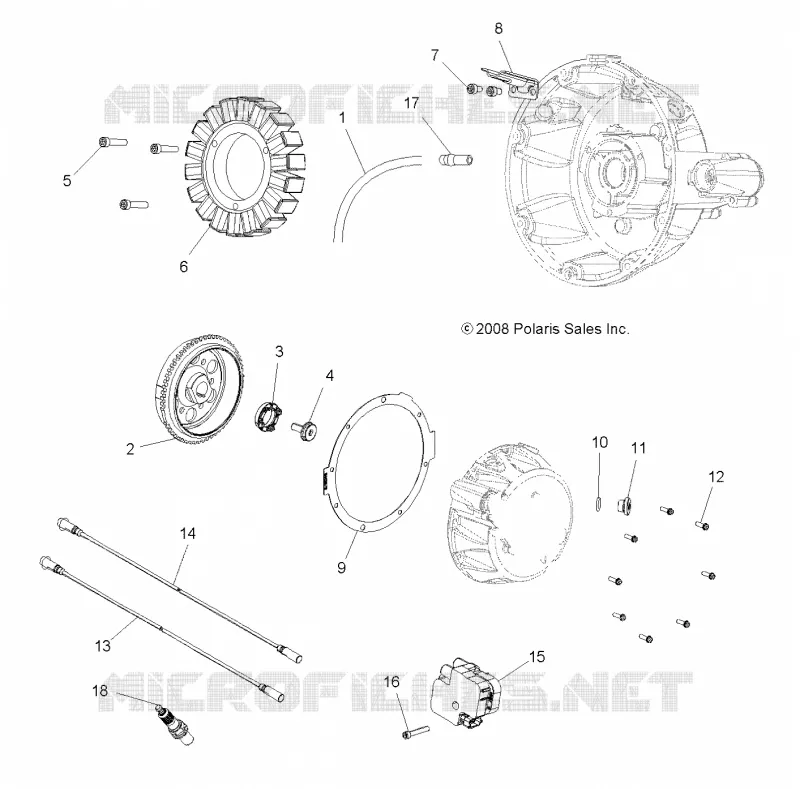

Find the detailed IGNITION SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
