ELECTRICAL, IGNITION SYSTEM for POLARIS SCRAMBLER XP 1000 ZUG from 2017

DRIVE TRAIN, GEARCASE MOUNTING, REAR

ELECTRICAL, SWITCHES, SENSORS, ECU AND CONTROL MODULES

ELECTRICAL, IGNITION SYSTEM

1

TUBING-NYLON 5MMX144MM BLK

8360077

8360209

$27,29 Unit Price incl. VAT

2

FLYWHEEL 560 WATT

4015585

4080627

$498,74 Unit Price incl. VAT

3

SCREW 1.50

7517566

$7,34 Unit Price incl. VAT

4

WATERPUMP DRIVE BOLT; LEFT

5140078

$57,74 Unit Price incl. VAT

5

SCR-M6X1.0X30 HX/SOC/CP-Y/D

7518544

7527860

$5,24 Unit Price incl. VAT

6

STATOR

4014406

$944,99 Unit Price incl. VAT

7

SCR-M6X1.0X10 SHCS

7518765

7527859

$9,44 Unit Price incl. VAT

8

RETAINER-STATOR WIRE

5261146

$10,49 Unit Price incl. VAT

9

STATOR COVER GASKET

5813680

$73,49 Unit Price incl. VAT

10

FITTING-6MM BRASS

7052463

$17,84 Unit Price incl. VAT

11

SPARK PLUG; 12 MM

3022553

9999999

Not Available

12

HEX FLANGE SCREW; 6 MM X 20 MM

7518576

$6,29 Unit Price incl. VAT

13

SPARKLUG WIRE; MAG

4014007

$104,99 Unit Price incl. VAT

14

SPARKPLUG WIRE; PTO SIDE

4013328

$115,49 Unit Price incl. VAT

15

COIL-EFI

4010425

2876049

$451,49 Unit Price incl. VAT

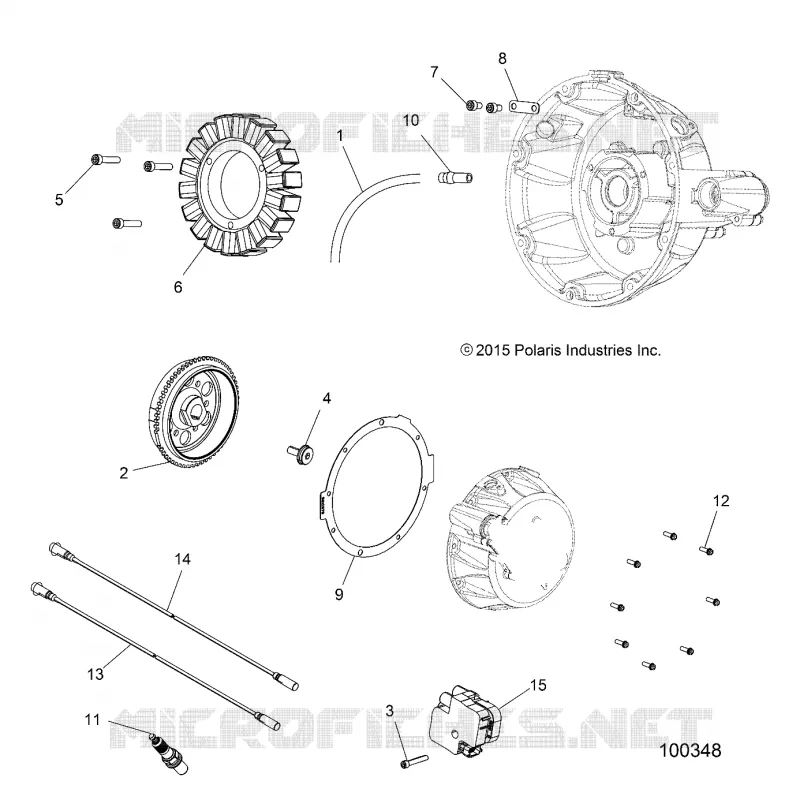

Find the detailed ELECTRICAL, IGNITION SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
