1
Engine displacement
550
2
Year
2000
3
Trim
550 TRAIL RMK
4
Parts Catalog
FRONT SUSPENSION AND SKI
5
Parts Diagram
Parts Catalog
BRAKE
by
STEERING
FRONT SUSPENSION AND SKI
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
14
14
15
16
16
17
18
19
20
20
20
20
21
22
22
22
22
23
24
25
26
27
28
29
30
31
31
31
31
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
46
47
48
49
50
51
52
53
54
54
55
55
56
57
58
59
60
61
62
63
1
RIVET
7661637
$2,09 Unit Price incl. VAT
2
BRACE BLKHD/STRG BLK.
5211589067
Not Available
3
BOLT
7512582
9999999
Not Available
4
NUT FLEXOC;
7542703
9999999
Not Available
5
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
6
RETAINER SPRING SLOTTED CAST
5630580
5020618
$36,74 Unit Price incl. VAT
7
IFS COMPRESSION SPRING; GS BLK
7041552067
Not Available
8
ADJUSTABLE PRELOAD SPRING RING
5431734
$104,99 Unit Price incl. VAT
9
RETAINER SPRING BODY THREADED
1500063
9999999
Not Available
10
BAR SWAY
5224757067
Not Available
11
BUSHING; SWAY BAR
5432412
9999999
Not Available
12
RIVET (50)
7621477
9999999
Not Available
13
ARM STRG BLK
5241560067
Not Available
14
NUT LOCK
7542403
9999999
Not Available
15
RIVET(50)
7661643
7661130
$2,09 Unit Price incl. VAT
16
WASHER
7555721
$2,09 Unit Price incl. VAT
17
BUSHING TUBE
5010310
9999999
Not Available
18
RUBBER PIVOT
5410872
9999999
Not Available
19
BOLT
7512557
9999999
Not Available
20
ARM ASMTRLGLH
1822506
9999999
Not Available
20
ARM ASMTRLGRH
1822507
9999999
Not Available
21
SWAY BAR SLIDE; 9/16
5432674
9999999
Not Available
22
STOP LH STRG BLK.
5241569067
Not Available
22
STOP RH STRG BLK.
5241570067
Not Available
23
FLANGE BUSHING
3573909
$4,19 Unit Price incl. VAT
24
BUSHING
7556509
$3,14 Unit Price incl. VAT
25
FLANGED BUSHING
3574208
$6,29 Unit Price incl. VAT
26
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
27
SPINDLE SHAFT; MEDIUM GLOSS BLACK
6230102067
Not Available
28
COMP SKI BLANK W/SS SDL BLK
1820783070
Not Available
29
SKAG 3 CARBIDE 90 DEGREE
2872566
$99,74 Unit Price incl. VAT
30
SCREW
7512596
9999999
Not Available
31
WASHER
7555832
$4,19 Unit Price incl. VAT
32
BOLT
7515514
$13,64 Unit Price incl. VAT
33
BOLT
7515307
$7,34 Unit Price incl. VAT
34
FLANGE NUT
7542321
$2,09 Unit Price incl. VAT
35
NUT; FLEXLOC
7542452
7542411
$6,29 Unit Price incl. VAT
36
TOE PLASTIC SKI BLK
5432209070
Not Available
37
PIN; COTTER
7661209
7661205
$1,56 Unit Price incl. VAT
38
CASTLE NUT
7542438
$3,14 Unit Price incl. VAT
39
SUPPORT SKI RUBBER MEDIUM GLOSS BLACK
5241912067
Not Available
40
RETAINER-SKI RUBBER
5243824
9999999
Not Available
41
STOP RUBBER
5411094
5412018
$47,24 Unit Price incl. VAT
42
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
43
WASHER; FLAT
7555843
7558302
$3,14 Unit Price incl. VAT
44
BUSHING PIVOT
5010158
$27,29 Unit Price incl. VAT
45
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
46
SCR-3/8-24X2 HX/CP GR5-Y-SP
7517583
$7,34 Unit Price incl. VAT
47
BUSH; RADIUS ROD PIVOT; OUT
5431486
9999999
Not Available
48
RADIUS ROD BUSHING
5010127
$12,59 Unit Price incl. VAT
49
RADIUS ROD PIVOT BUSHING; 3/8
5411099
9999999
Not Available
50
SCREW
7515433
$3,14 Unit Price incl. VAT
51
ROD RAD UP. FIXED
1822420
9999999
Not Available
52
SHOCK GAS IFS
7041544
9999999
Not Available
53
SCREW
7515415
9999999
Not Available
54
STRAP SPACER TOP
5211344
$13,64 Unit Price incl. VAT
55
STRAP SPACER BOTTOM
5211345
9999999
Not Available
56
RADIUS ROD; LOWER; MEDIUM GLOSS BLACK
1822444067
Not Available
57
NUT-JAM(10)
7542711
$4,19 Unit Price incl. VAT
58
RODEND 1/2 W/LINER 1.05 WIDE
7061027
7061052
$99,74 Unit Price incl. VAT
59
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
60
BOLT
7512684
9999999
Not Available
61
BRKT RAD.ROD BTM.
5242578
9999999
Not Available
62
NUT FLEXLOCK
7542503
9999999
Not Available
63
PIVOT BUSHING
5411095
$27,29 Unit Price incl. VAT

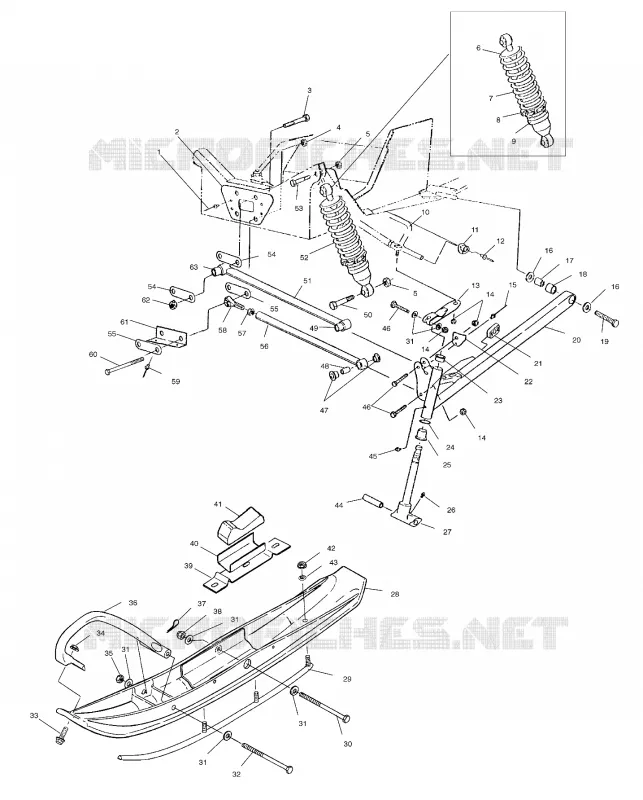

Find the detailed FRONT SUSPENSION AND SKI POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
