1
Engine displacement
800
2
Year
2002
3
Trim
800 RMK F/O 151 BUILT AFTER 3/1/01
4
Parts Catalog
NOSEPAN
5
Parts Diagram
Parts Catalog
SHOCK (REAR TRACK)
by
NOSEPAN
NOSEPAN
24
25
25
26
27
28
29
29
24
25
25
26
27
28
29
29
1
RIVET
7661637
$2,09 Unit Price incl. VAT
2
PIVOT HINGE; LOWER; RIGHT; GS BLK
5243992067
Not Available
3
RIVET
7621431
$2,09 Unit Price incl. VAT
4
WELD-SHOCK TOWER;2.5;RH;BLK
1821108067
Not Available
5
RIVET-3/16-.214-.420 (50)
7661130
$2,09 Unit Price incl. VAT
6
HEX SOCKET SCREW; 3/8; 16 X 1 1/4
7517935
$4,19 Unit Price incl. VAT
7
WASHER
7556153
$3,66 Unit Price incl. VAT
8
WELD-SHOCK TOWER2.5LHBLK
1821107067
Not Available
9
FLANGED NUT; 3/8-16
7547180
$4,19 Unit Price incl. VAT
10
WELD-RAD ROD SUPPORTBLK
1821136067
Not Available
11
BRACE PAN; LOWER
5244050
9999999
Not Available
12
PIVOT HINGE; LOWER; LEFT; GS BLK
5243991067
Not Available
13
NYLOK FLANGED NUT
7542153
$3,14 Unit Price incl. VAT
14
ASM. BUMPER FRONT BLK
5433518070
Not Available
14
ASM-BUMPER FRONT EDGE SCR YLW
5433518216
Not Available
15
BOLT
7512163
$7,34 Unit Price incl. VAT
16
SHIELD HEAT EXTENDED
5245853
9999999
Not Available
17
RIVET
7621467
$2,09 Unit Price incl. VAT
18
NOSEPAN-HIGH SHOCKSRMKSTN SL
5434345358
Not Available
18
NOSEPAN-HIGH SHOCKSRMKI RED
5434345293
Not Available
18
NOSEPAN-HIGH SHOCKSBLK
5434345070
Not Available
19
RIVET
7621472
$2,09 Unit Price incl. VAT
20
COVER-SHOCK TOWER;LH
5434346
9999999
Not Available
21
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
22
WASHER
7555827
$7,34 Unit Price incl. VAT
23
SCREW(10)
7515166
$6,29 Unit Price incl. VAT
24
RIVET
7621418
$2,09 Unit Price incl. VAT
25
FOIL
5812271
9999999
Not Available
25
COVER-SHOCK TOWER;RH
5434347
9999999
Not Available
26
RIVET
7621485
$2,09 Unit Price incl. VAT
27
SCREW
7517312
$2,09 Unit Price incl. VAT
28
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
29
HOOD GUIDE; LEFT
5244888
9999999
Not Available
29
HOOD GUIDE; RIGHT
5244889
9999999
Not Available

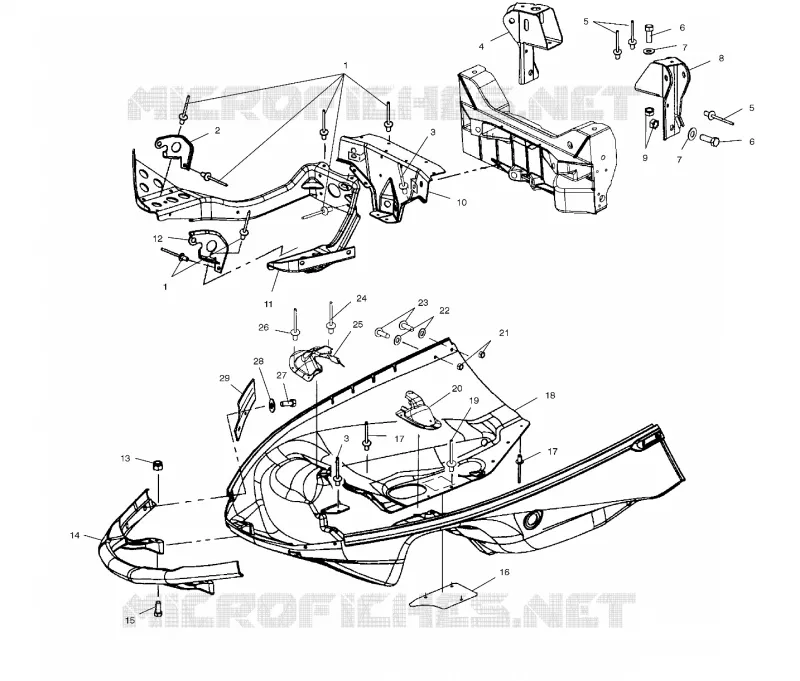

Find the detailed NOSEPAN POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
