DRIVE TRAIN, DRIVE SHAFT, FRONT (TO 2/15/16)
5
Parts Diagram
Parts Catalog
CHASSIS, MAIN FRAME
by
DRIVE TRAIN, GEARCASE MOUNTING, REAR
DRIVE TRAIN, DRIVE SHAFT, FRONT (TO 2/15/16)
-
8
9
8
9
-
DRIVE SHAFT ASSEMBLY; FRONT
1332873
$383,24 Unit Price incl. VAT
1
DRIVE SHAFT CIRCLIP
7670092
$14,69 Unit Price incl. VAT
2
PLUNGING JOINT
2204360
9999999
Not Available
3
RING SPRING
7710664
9999999
Not Available
4
BOOT KIT
2204387
$99,74 Unit Price incl. VAT
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
CV JOINT BOOT KIT
2204361
$99,74 Unit Price incl. VAT
7
CV JOINT
2204388
9999999
Not Available
8
RING SPRING
7710669
$12,59 Unit Price incl. VAT
9
O-RING; 20.30 MM X 2.62 MM
5414535
$17,84 Unit Price incl. VAT

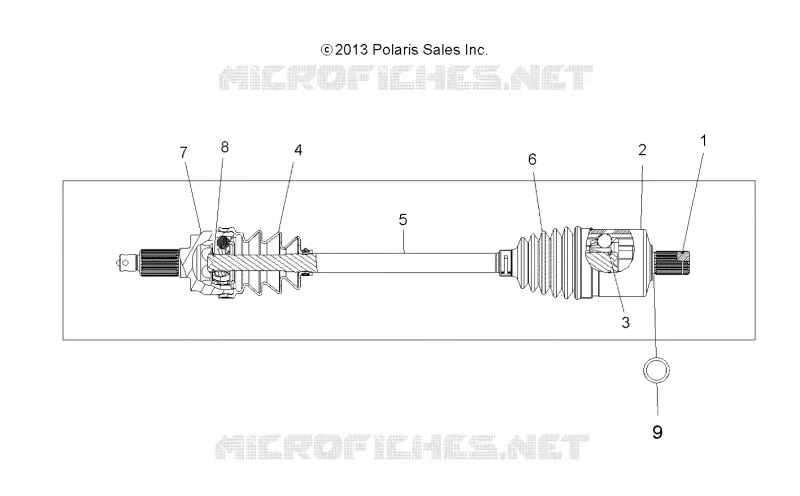

Find the detailed DRIVE TRAIN, DRIVE SHAFT, FRONT (TO 2/15/16) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
