Engine displacement
1000
2
Year
2020
3
Trim
RZR XP 4 TURBO S
4
Parts Catalog
ELECTRICAL, INSTRUMENTS & CONTROLS
5
Parts Diagram
Parts Catalog
BATTERY
by
ECU / REGULATOR
ELECTRICAL, INSTRUMENTS & CONTROLS
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
1
ASM-DISPLAY DIG P7 PRG
3280862
3286950
$3 023,99 Unit Price incl. VAT
2
JUNCTION BLOCK
4011615
$52,49 Unit Price incl. VAT
3
GPS ANTENNA; EXTERIOR
4017533
$141,74 Unit Price incl. VAT
4
BRKT-MTG B POST BLK
5264769329
Not Available
5
12V OUTLET
4012393
$68,24 Unit Price incl. VAT
6
4 POSITION KEY SWITCH
4016058
4081559
$89,24 Unit Price incl. VAT
7
MODE SWITCH; LV
4018546
$157,49 Unit Price incl. VAT
8
HEADLIGHT LASER SWITCH
4017133
9999999
Not Available
9
LASER SWITCH; AWD
4017134
9999999
Not Available
10
FUSED JUMPER CABLE ACCESSORY
4017147
4080976
$125,99 Unit Price incl. VAT
11
SCREW 10-24X5/8 (10)
7517756
$2,09 Unit Price incl. VAT
12
FLANGED NUT; 3/8-16
7547180
$4,19 Unit Price incl. VAT
13
REVERSE CAMERA
4015873
4081066
$398,99 Unit Price incl. VAT
14
DISPLAY BRACKET; 7 IN; RZR
5266577329
Not Available
15
SCR-TXBH-M6X1.0X12 8.8 ZPB D20
7519063
$6,29 Unit Price incl. VAT
16
BOLT M6 X 1.0 X 20
7518529
$2,09 Unit Price incl. VAT
17
GUAGE ASSEMBLY
3280863
3286943
$755,99 Unit Price incl. VAT
18
C4 GAUGE MOUNT BRACKET; BLACK
5264913329
Not Available
19
USB HARNESS
2414710
2415322
$89,24 Unit Price incl. VAT
20
BEZEL-GAUGE 7 ORV 7 BTN BLK
5455574070
Not Available
21
BRKT-SCM AMP ECOAT
5266963329
Not Available
22
SCM-PROGRAMMED LV 72 MP
4017140
9999999
Not Available
23
NUT-HXFL-M6X1.0 8 ZC NYL
7547487
$4,19 Unit Price incl. VAT
24
HARNESS; AM/FM ADAPTER
2414431
$141,74 Unit Price incl. VAT
25
AM/FM ANTENNA HARNESS ASSEMBLY
2414727
$99,74 Unit Price incl. VAT
26
AM/FM ANTENNA MAST; SHORT
4014849
$209,99 Unit Price incl. VAT
27
MOUNT-ANTENNA 90-DEG ADJ NUT
4016695
4019254
$89,24 Unit Price incl. VAT
28
STRAP-GROUND ANTENNA BRAIDED
4016696
$62,99 Unit Price incl. VAT
29
AUDIO AMP; DASH MOUNT
4017614
$593,24 Unit Price incl. VAT
30
ANTENNA; V2V
4018713
$209,99 Unit Price incl. VAT
31
BRKT-SCM AMP ECOAT
5268220329
Not Available
32
BOLT-M6X1.0X40 HXHDFLGW/PATC
7518470
9999999
Not Available
33
CLIP-EDGE 1-3MM THICKNESS
7082427
$10,49 Unit Price incl. VAT
34
SCR-10-24X3/4 PH/TX/TRI-SEMS Y (10)
7518196
$2,09 Unit Price incl. VAT

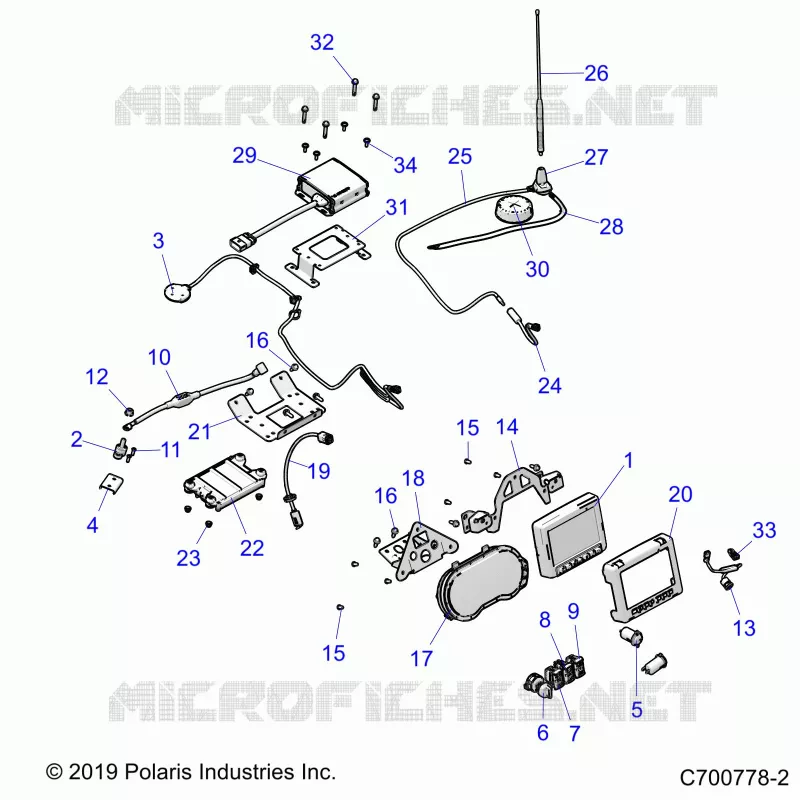

Find the detailed ELECTRICAL, INSTRUMENTS & CONTROLS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
