Engine displacement
90
2
Year
2003
3
Trim
SPORTSMAN 90
4
Parts Catalog
OIL PUMP ASSEMBLY
5
Parts Diagram
Parts Catalog
FAN COVER
by
STARTER
OIL PUMP ASSEMBLY
1
1
2
3
4
5
6
7
8
9
9
10
10
11
12
13
13
14
15
16
17
1
2
3
4
5
5
5
5
5
5
5
5
6
7
8
9
10
11
12
13
14
14
15
15
16
17
17
1
CIRCLIP-EXTERNAL
0450060
$7,34 Unit Price incl. VAT
2
WASHER-WAVE(10)
0450655
9999999
Not Available
3
OIL PUMP DRIVE GEAR
0450058
9999999
Not Available
4
PIN-DOWEL (10)
0450059
9999999
Not Available
5
CIRCLIP-EXTERNAL(10)
0450052
9999999
Not Available
6
WORMWHEEL-OILPMP 15136-112-000
0450050
9999999
Not Available
7
O-RING(10)
0450048
9999999
Not Available
8
OIL TUBE
0450055
9999999
Not Available
9
CLIP
0450054
0455537
$2,40 Unit Price incl. VAT
10
CLIP(10)
0450056
9999999
Not Available
11
WASHER(10)
0450046
9999999
Not Available
12
BOLT-PHILLIPS(10)
0450884
9999999
Not Available
13
SPRING-PROTECEIVE OIL PIPE
0450061
9999999
Not Available
14
OIL TUBE
0450053
9999999
Not Available
15
BOLT-PAN PHILLIP
0450057
9999999
Not Available
16
OIL PUMP ASSEMBLY
0450846
9999999
Not Available
17
PIN-SHAFT(10)
0450051
9999999
Not Available

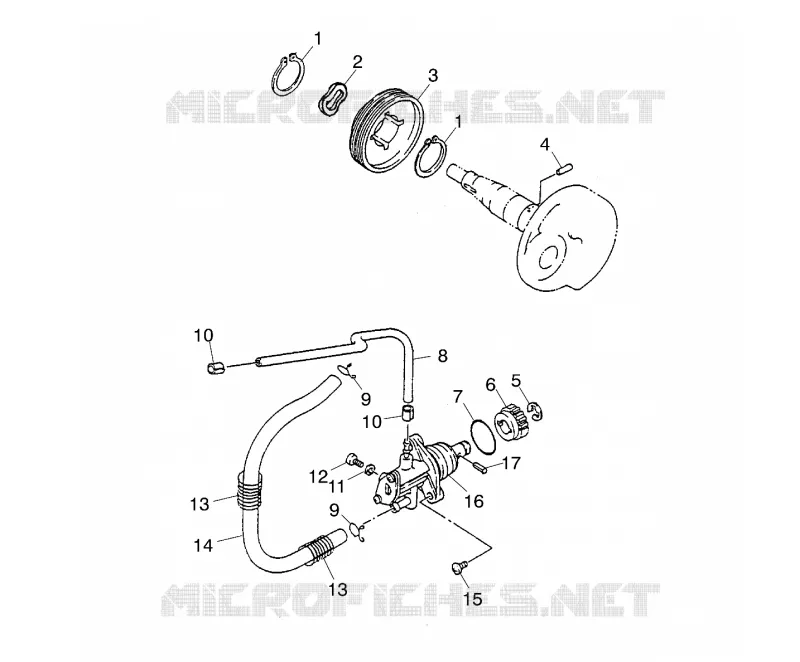

Find the detailed OIL PUMP ASSEMBLY POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
