SUSPENSION, TORSION BAR for POLARIS SPORTSMAN 570 EPS ZUG from 2018

SUSPENSION, TORSION BAR

1

BOLT-5/16-18X1-3/4 HXFLNG GR5

7518341

$9,44 Unit Price incl. VAT

2

FLANGE NUT

7542343

$9,44 Unit Price incl. VAT

3

WASHER

7555939

9999999

Not Available

4

TUBE STABILIZER BUSHING; BLACK

5438901

$16,79 Unit Price incl. VAT

5

STABILIZER BAR TUBE; BLACK

5334114329

Not Available

6

STABILIZER BAR ARM WELD; MATTE BLACK

1543119458

Not Available

7

SCREW

7517231

$13,64 Unit Price incl. VAT

8

STABILIZER SUPPORT WELD

1542848458

Not Available

9

BUSHING-WSHR TORBARDURO80ITW

5414877

5415885

$6,29 Unit Price incl. VAT

10

LINKAGE ROD STABILIZER

5020827

$99,74 Unit Price incl. VAT

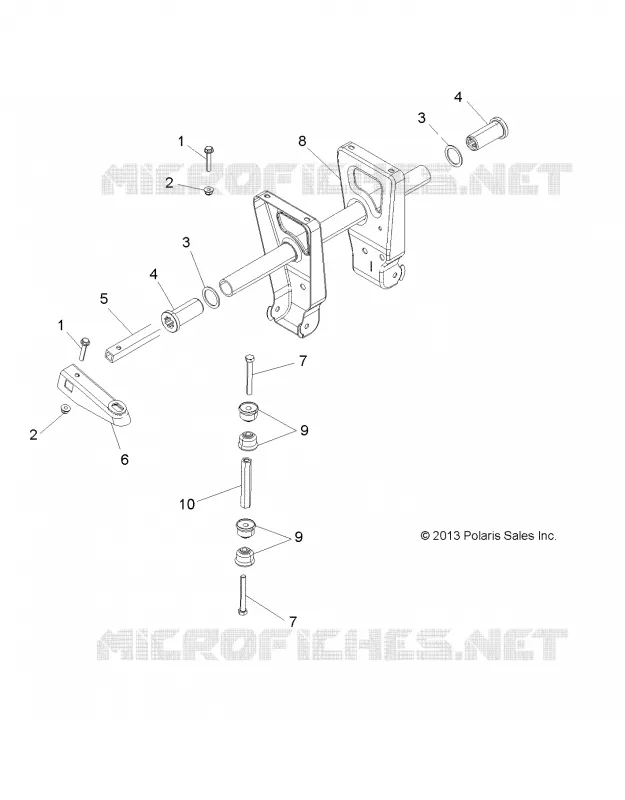

Find the detailed SUSPENSION, TORSION BAR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
