1
Engine displacement
570
2
Year
2016
3
Trim
ACE 570 EFI
4
Parts Catalog
SUSPENSION, REAR STABILIZER BAR
5
Parts Diagram
Parts Catalog
SUSPENSION, FRONT STRUT
by
WHEELS, REAR
SUSPENSION, REAR STABILIZER BAR
10
1
STABILIZER BAR; REAR; MATTE BLACK
1018449458
Not Available
2
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
3
BUSHING-UPPER STEERING;1 IN
5438903
5439731
$12,59 Unit Price incl. VAT
4
STEERING BUSHING BRACKET; UPPER
5257028
$62,99 Unit Price incl. VAT
5
STABILIZER BAR LINKAGE ASSEMBLY
1542942
9999999
Not Available
6
BOLT-CARR M8X1.25X25-8.8-ZOD
7518920
$9,44 Unit Price incl. VAT
7
NYLOC OLIVE NUT; 8 MM X 1.25 MM
7547332
$7,34 Unit Price incl. VAT
8
FLAT WASHER
7555852
$4,19 Unit Price incl. VAT
9
BUSHING-LNKG TORBAR;DURO80;ITW
5413295
5416013
$9,44 Unit Price incl. VAT
10
SPACER .625 X .407 X .375
5334945
$7,34 Unit Price incl. VAT

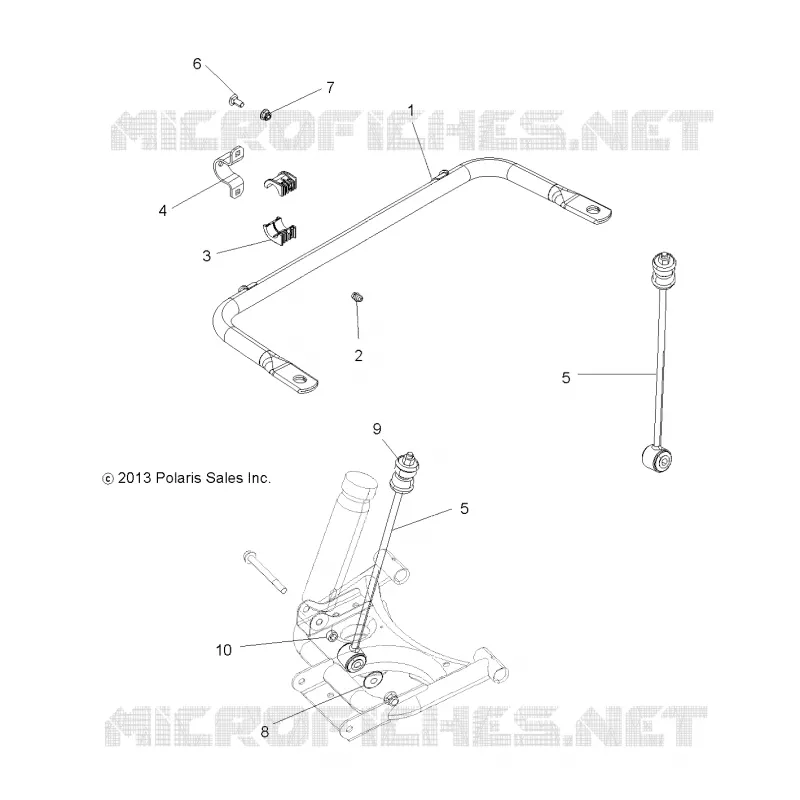

Find the detailed SUSPENSION, REAR STABILIZER BAR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
