1
Engine displacement
325
2
Year
2000
3
Trim
325 MAGNUM 4X4 HDS II - A00CD32FB
4
Parts Catalog
SWING ARM/REAR GEARCASE MOUNTING
5
Parts Diagram
Parts Catalog
GEARCASE SELECTOR MOUNTING
by
INLET EXHAUST
SWING ARM/REAR GEARCASE MOUNTING
1
HUBBRAKE DISCMACH
5132152
9999999
Not Available
2
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
3
DOUBLE SEAL BALL BEARING
3513523
9999999
Not Available
4
SHIELD-BRAKE LINEREAR
5411653
9999999
Not Available
5
BOLT
7517604
9999999
Not Available
6
SCREW
7512084
$2,09 Unit Price incl. VAT
7
WASHER
7555721
$2,09 Unit Price incl. VAT
8
NUT FLEXOC;
7542703
9999999
Not Available
9
CAP SWINGARM PIVOT
5411532
9999999
Not Available
10
NUT JAM SWINGARMPIVOT
5131863
9999999
Not Available
11
SWINGARM PIVOT THREADED
5131864
9999999
Not Available
12
SEAL SWINGARM PIVOT
3610072
9999999
Not Available
13
TAPER ROLL CONE BEARING
3554506
$54,59 Unit Price incl. VAT
14
TAPER ROLL CUP BEARING
3554507
$54,59 Unit Price incl. VAT
15
SWINGARM SEAL PIVOT
5411602
9999999
Not Available
16
SWING ARM (Incl. 14 15)
1541323
Not Available
17
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
17
PROP SHAFT COUPLING
5132201
9999999
Not Available
18
O-RING
5411092
$3,14 Unit Price incl. VAT
19
PROP SHAFT ASSEMBLY; REAR
1380137
$309,74 Unit Price incl. VAT
20
WASHER SPLIT LOCK
7553201
$7,34 Unit Price incl. VAT
21
BOLT-1/2-13X1 1/4 HXHD GR5-Z
7517585
9999999
Not Available
22
AXLE; REAR
5131862
$430,49 Unit Price incl. VAT
23
RING RETAINING
7710482
9999999
Not Available
24
SCREW
7517612
9999999
Not Available
25
PLATE-SKID BLK
5242851067
Not Available
25
PAD-RUBBER
5811716
9999999
Not Available
25
ASM. SKID PLATE REAR
1012881
9999999
Not Available
26
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
27
O-RING
5411531
9999999
Not Available
28
COLLAR R.AXLE LOCK
5131930
Not Available
29
O-RING
5411707
9999999
Not Available
30
DECAL HITCH Substituted by 7078261
7072533
Not Available
31
SPRING PIN
7661913
$7,34 Unit Price incl. VAT
32
TUBE AXLE LH BLK
1012740067
Not Available
33
BOLT
7515481
9999999
Not Available
34
INTERNAL RETAINING RING
7710471
9999999
Not Available
35
SPACER-BEARING
5132075
9999999
Not Available
36
AXLE SEAL; REAR
3610071
9999999
Not Available
37
VENTED DISC BRAKE
5211849
9999999
Not Available
38
O-RING
5411092
$3,14 Unit Price incl. VAT

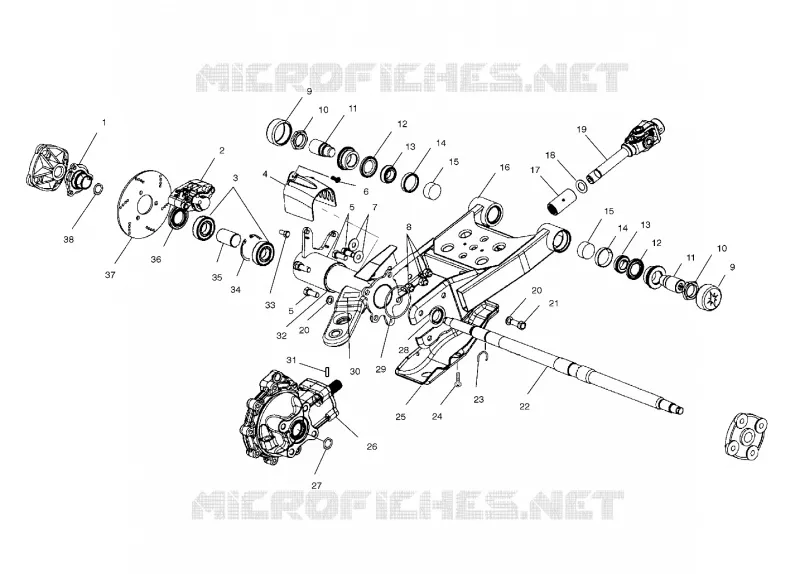

Find the detailed SWING ARM/REAR GEARCASE MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
