1
Engine displacement
900
2
Year
2019
3
Trim
RZR 900 50 INCH
4
Parts Catalog
REAR RACK AND FENDERS
5
Parts Diagram
Parts Catalog
PASSENGER GRAB BAR
by
REAR BRAKE CALIPER
REAR RACK AND FENDERS
2
2
2
2
3
3
4
5
5
5
6
6
6
6
6
6
6
6
6
6
7
7
7
7
7
7
8
8
8
8
9
10
11
12
13
13
14
15
16
17
18
19
19
20
21
22
23
1
FENDER; REAR; LEFT HAND; BLACK PEARL
2635493666
Not Available
1
ASM-FNDR TPO RR CLIP LH WH LTG
2635495599
Not Available
1
FENDER ASSEMBLY; REAR; LEFT; INDY RED
2635493293
Not Available
1
ASM-FNDR PNT RR CLIP LH SD.GRN
2635493685
Not Available
2
FENDER; REAR; RIGHT; BLACK PEARL
2635494666
Not Available
2
FENDER ASSEMBLY; REAR; RIGHT
2635496599
Not Available
2
FENDER ASM REAR RIGHT SUEDE SB GRN MTLC
2635494685
Not Available
2
FENDER ASSEMBLY; REAR; RIGHT
2635494293
Not Available
3
DASH TRIM CLIP
7519806
$7,34 Unit Price incl. VAT
4
FLARE FENDER; REAR; LEFT; GLOSS BLACK
5439776070
Not Available
5
FENDER REAR FLAIR RIGHT GLO
5439777070
Not Available
6
BOLT
7519650
$7,34 Unit Price incl. VAT
7
U-TYPE NUT; M6-1.0
7547674
$2,09 Unit Price incl. VAT
8
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
9
AIR INTAKE HOUSING
5454276
$262,49 Unit Price incl. VAT
10
PLUG-REAR FASCIA LH BLK
5415121070
Not Available
11
PLUG-REAR FASCIA RH BLK
5415122070
Not Available
12
FASCIA-REAR GLOSS BLACK
5451117070
Not Available
13
ASM-REAR BOX;BLK
2636779
2640632
$755,99 Unit Price incl. VAT
13
REAR BOX ASSEMBLY; BLACK
2637552
2640632
$755,99 Unit Price incl. VAT
14
BOX ACCESS PANEL ASSEMBLY
2636748
$204,74 Unit Price incl. VAT
15
BOX MOUNT SHIELD; INNER
5263555
$73,49 Unit Price incl. VAT
16
TORX SCREW; #14 X 3/4
7519045
$6,29 Unit Price incl. VAT
17
INTAKE COVER GRILL; LEFT; GLOSS BLACK
5451188070
Not Available
18
INTAKE GRILL COVER; RIGHT; GLOSS BLACK
5451189070
Not Available
19
SCREW
7512026
$2,09 Unit Price incl. VAT
20
COVER PLATE LATCH; GLOSS BLACK
5450510070
Not Available
21
SCR-TXPH-#14X3/4 HI/LO CLR
7519290
$7,34 Unit Price incl. VAT
22
SEAT LATCH SPRING
7081466
$57,74 Unit Price incl. VAT
23
SEAT LATCH LEVER
5437121
$9,44 Unit Price incl. VAT

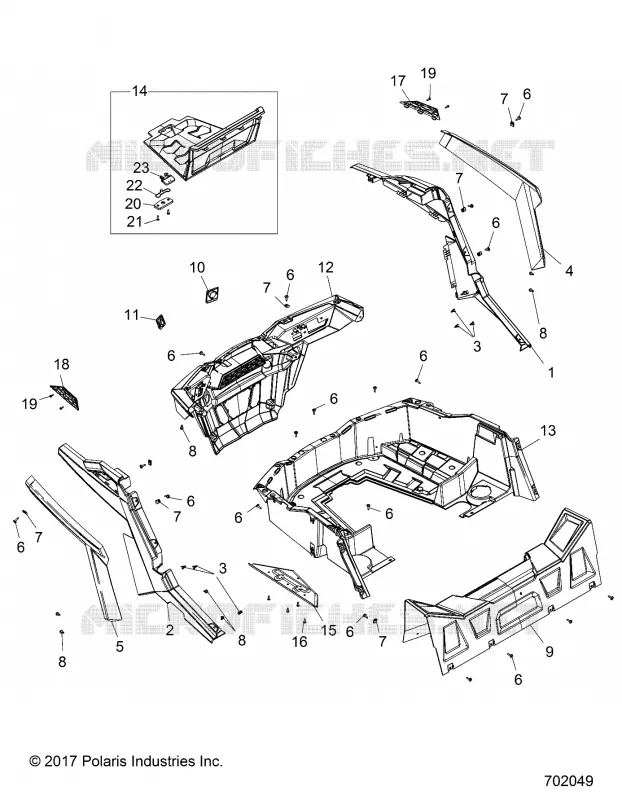

Find the detailed REAR RACK AND FENDERS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
