1
Engine displacement
autre
2
Year
1997
3
Trim
ULTRA SPX SE - H975678
4
Parts Catalog
CARBURETOR ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX S (4939533953D001)
5
Parts Diagram
Parts Catalog
PISTON CRANKSHAFT
by
FUEL PUMP ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX SE (4939533953D002)
CARBURETOR ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX S (4939533953D001)
1
TOP ASM.
3130644
Not Available
2
SPRING THROTTLE
3130444
9999999
Not Available
3
GUIDE HOLDER
3130199
$52,49 Unit Price incl. VAT
4
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
5
PLUNGER ASSEMBLY
3130328
$68,24 Unit Price incl. VAT
6
HOSE
3130659
Not Available
7
NIPPLE
3130611
9999999
Not Available
8
HOSE
3130605
9999999
Not Available
9
SPRING AIR ADJUST
3130012
9999999
Not Available
10
AIR SCREW
3130011
$36,74 Unit Price incl. VAT
11
SPRING
3130010
$18,89 Unit Price incl. VAT
12
SCREW THROTTLE STOP
3130009
9999999
Not Available
13
PILOT JET; #50
3130629
9999999
Not Available
14
PLATE
3130243
9999999
Not Available
15
RING CARB
3130232
9999999
Not Available
16
HEX HEAD MAIN JET
3130140
9999999
Not Available
17
FLOAT CHAMBER GASKET
3130236
$20,99 Unit Price incl. VAT
18
CAP
3130237
$8,39 Unit Price incl. VAT
19
FLOAT ASSEMBLY
3130021
$83,99 Unit Price incl. VAT
20
SCREW
3130056
9999999
Not Available
21
HOSE CLAMP
7080534
$3,14 Unit Price incl. VAT
22
CLAMP HOSE
7080544
9999999
Not Available
23
PLUG TRAP
5431893
$26,24 Unit Price incl. VAT
24
FUEL LINE; 5 FT.
8450045153
Not Available
25
FITTING SEDIMENT
5020476
9999999
Not Available
26
O-RING
3130239
9999999
Not Available
27
NEEDLE VALVE ASSEMBLY
3130643
9999999
Not Available
28
WASHER
3130047
$9,44 Unit Price incl. VAT
29
ARM FLOAT
3130048
9999999
Not Available
30
FLOAT PIN
3130361
$18,89 Unit Price incl. VAT
31
JET AIR (PAJ1) (PAJ1)
3130256
Not Available
32
CARBURETOR #2
3130708
9999999
Not Available
32
CARBURETOR #1 (Incl. 1-20 25-38)
3130707
Not Available
33
CAP
3130479
$31,49 Unit Price incl. VAT
34
JET NEEDLE Q-2
3130165
Not Available
35
VALVETHROTTLE(3.0)
3130352
9999999
Not Available
36
NEEDLE JET
3130476
9999999
Not Available
37
E-RING
3130508
$12,59 Unit Price incl. VAT
38
PLATE THROTTLE
3130054
9999999
Not Available

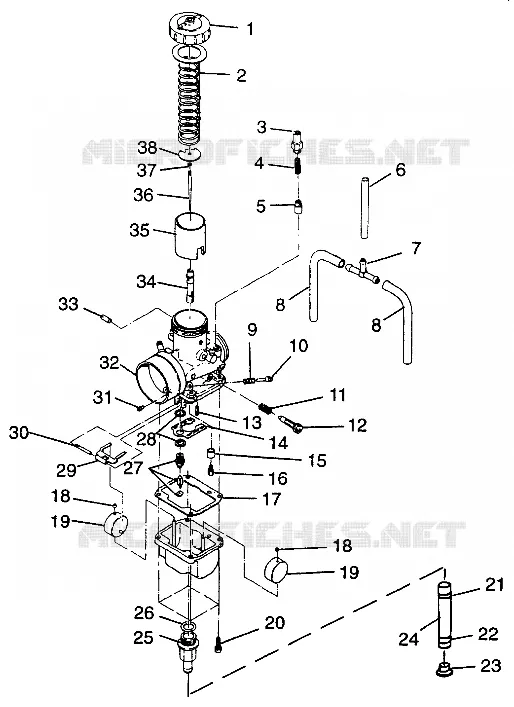

Find the detailed CARBURETOR ULTRA SPX 0975678, ULTRA SPX SE H975678 AND EUROPEAN ULTRA SPX S (4939533953D001) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
